2-6 A/B Crossfader
The A/B crossfader area of the console consists of: the A fader and the B fader, an LED
display for each fader that shows their current assignments, assignment keys and control
keys.
crossfade
control keys
GO
TO
SEQ
AUTO
LED display
for fader A
A/B
Assignment
keys
LED display
for fader B

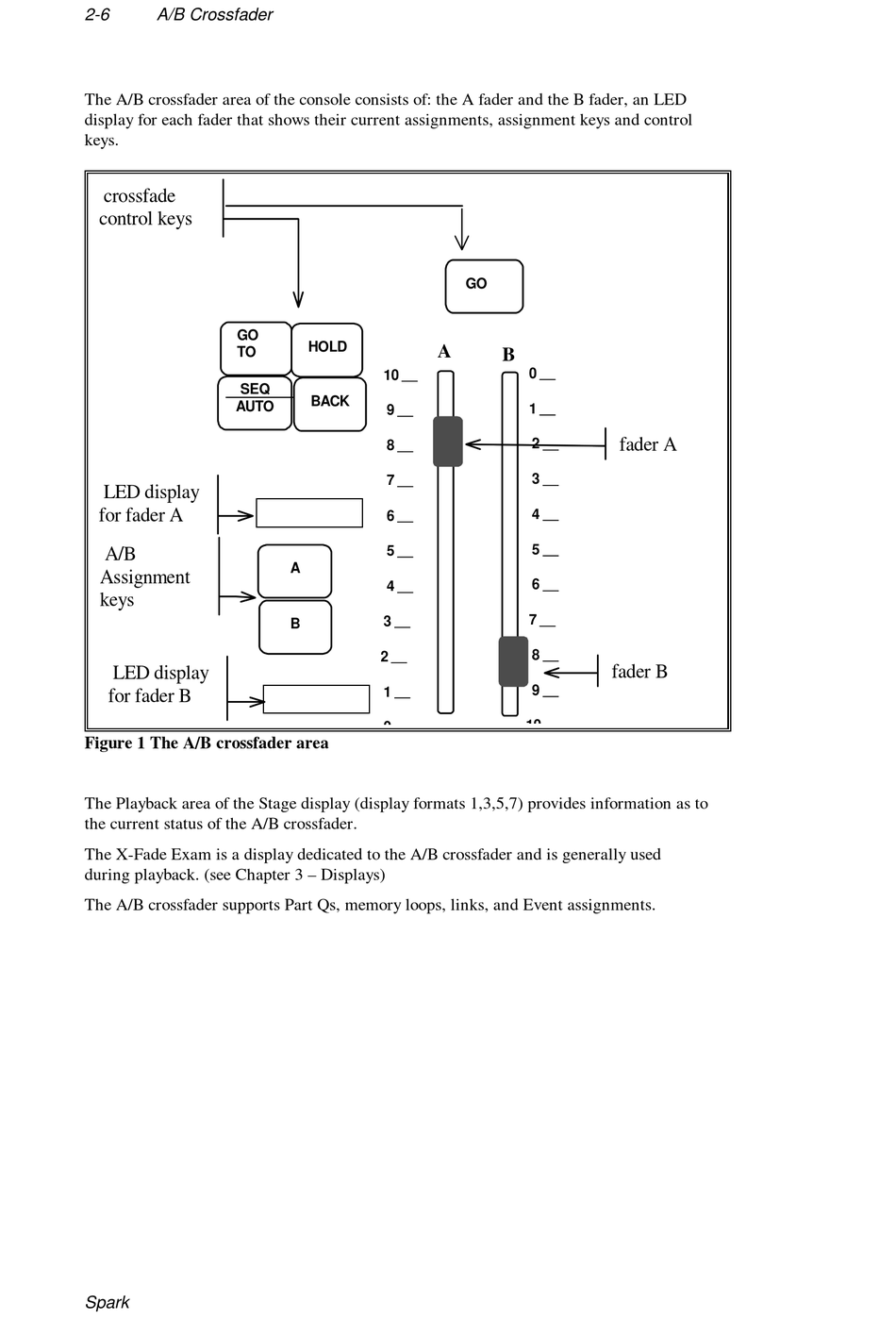

Figure 1 The A/B crossfader area
The Playback area of the Stage display (display formats 1,3,5,7) provides information as to
the current status of the A/B crossfader.
The X-Fade Exam is a display dedicated to the A/B crossfader and is generally used
during playback. (see Chapter 3 – Displays)
The A/B crossfader supports Part Qs, memory loops, links, and Event assignments.
Spark
HOLD
A
10 
BACK
9 
8 
7 
6 
5 
A
4 
3 
B
2 
1 
0
GO
B
0 
1 
fader A
2 
3 
4 
5 
6 
7 
8 
fader B
9 
10
