36) Install the cylinder
ME(H4DOTC)-68, INSTALLATION,
Head.>
37) Install the camshaft. <Ref. to ME(H4DOTC)-
62, INSTALLATION, Camshaft.>
38) Install the generator and A/C compressor with
their brackets.
Tightening torque:
36 N·m (3.7 kgf-m, 26.6 ft-lb)
39) Install the crank
ME(H4DOTC)-60, INSTALLATION, Crank Sprock-
et.>
40) Install the cam
ME(H4DOTC)-59, INSTALLATION, Cam Sprock-
et.>
41) Install the timing belt. <Ref. to ME(H4DOTC)-
52, INSTALLATION, Timing Belt.>
42) Adjust the valve
ME(H4DOTC)-28, ADJUSTMENT, Valve Clear-
ance.>
43) Install the rocker cover.
(1) Install the rocker cover gasket to the rocker
cover. (Outer section and ignition coil section)
NOTE:
Use a new rocker cover gasket.

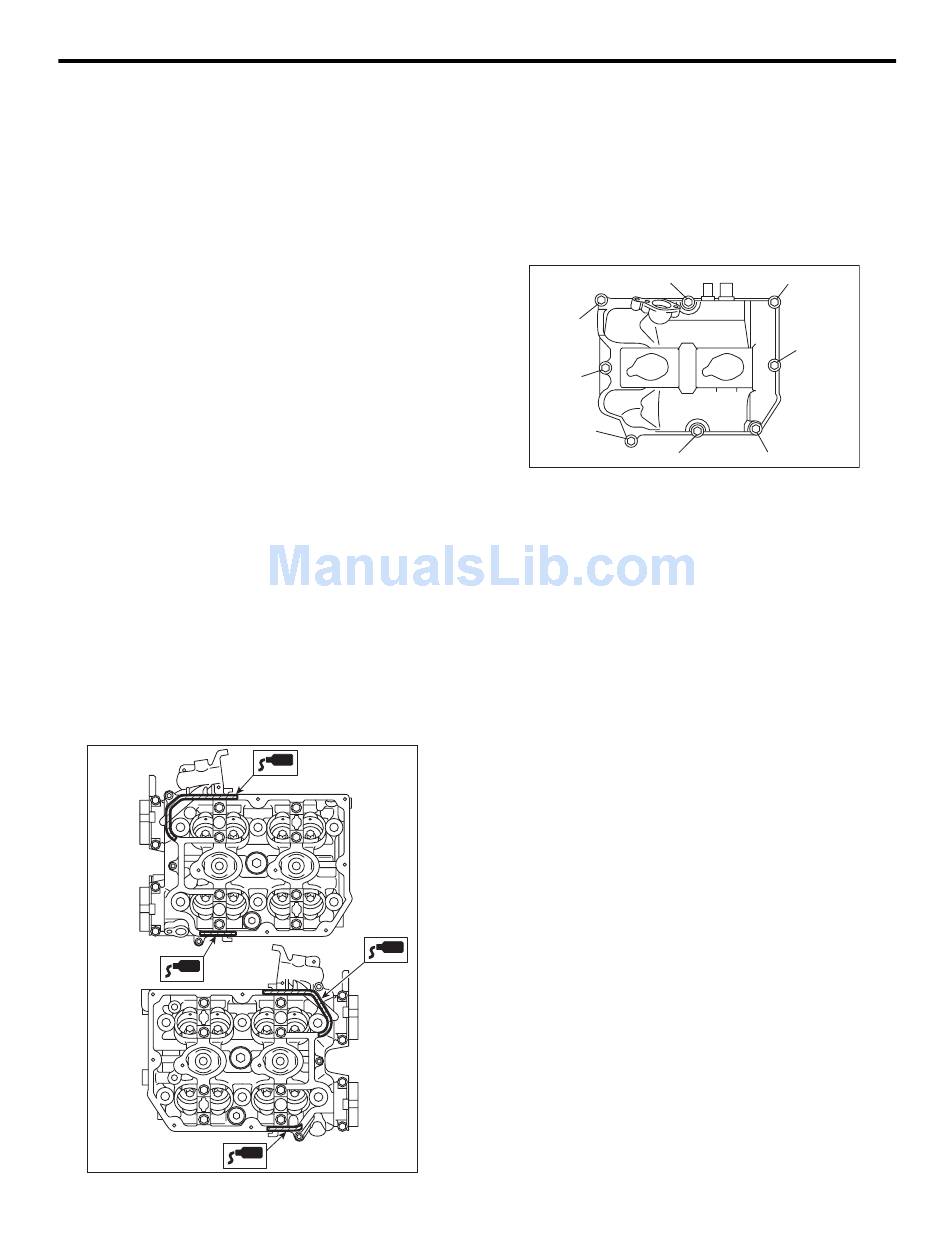

(2) Apply liquid gasket to the specified point of
the cylinder head.
NOTE:
Install within 5 min. after applying liquid gasket.
Liquid gasket:
THREE BOND 1217G (Part No. K0877Y0100)
or equivalent
Cylinder Block
head. <Ref. to
Cylinder
sprocket. <Ref. to
sprocket. <Ref. to
clearance. <Ref. to
ME-03143
ME(H4DOTC)-89
(3) Install the rocker cover onto cylinder heads.
Ensure the gasket is properly positioned during
installation.
(4) Temporarily tighten the rocker cover tight-
ening bolts in alphabetical order shown in the
figure, and then tighten to specified torque in al-
phabetical order.
Tightening torque:
6.4 N·m (0.7 kgf-m, 4.7 ft-lb)
(C),(K)
(E)
(A),(I)
(G)
(D),(L)
44) Install the timing
ME(H4DOTC)-49, INSTALLATION, Timing Belt
Cover.>
45) Install the crank pulley. <Ref. to ME(H4DOTC)-
47, INSTALLATION, Crank Pulley.>
46) Install the intake
FU(H4DOTC)-21, INSTALLATION, Intake Mani-
fold.>
47) Install the V-belts. <Ref. to ME(H4DOTC)-40,
INSTALLATION, V-belt.>
