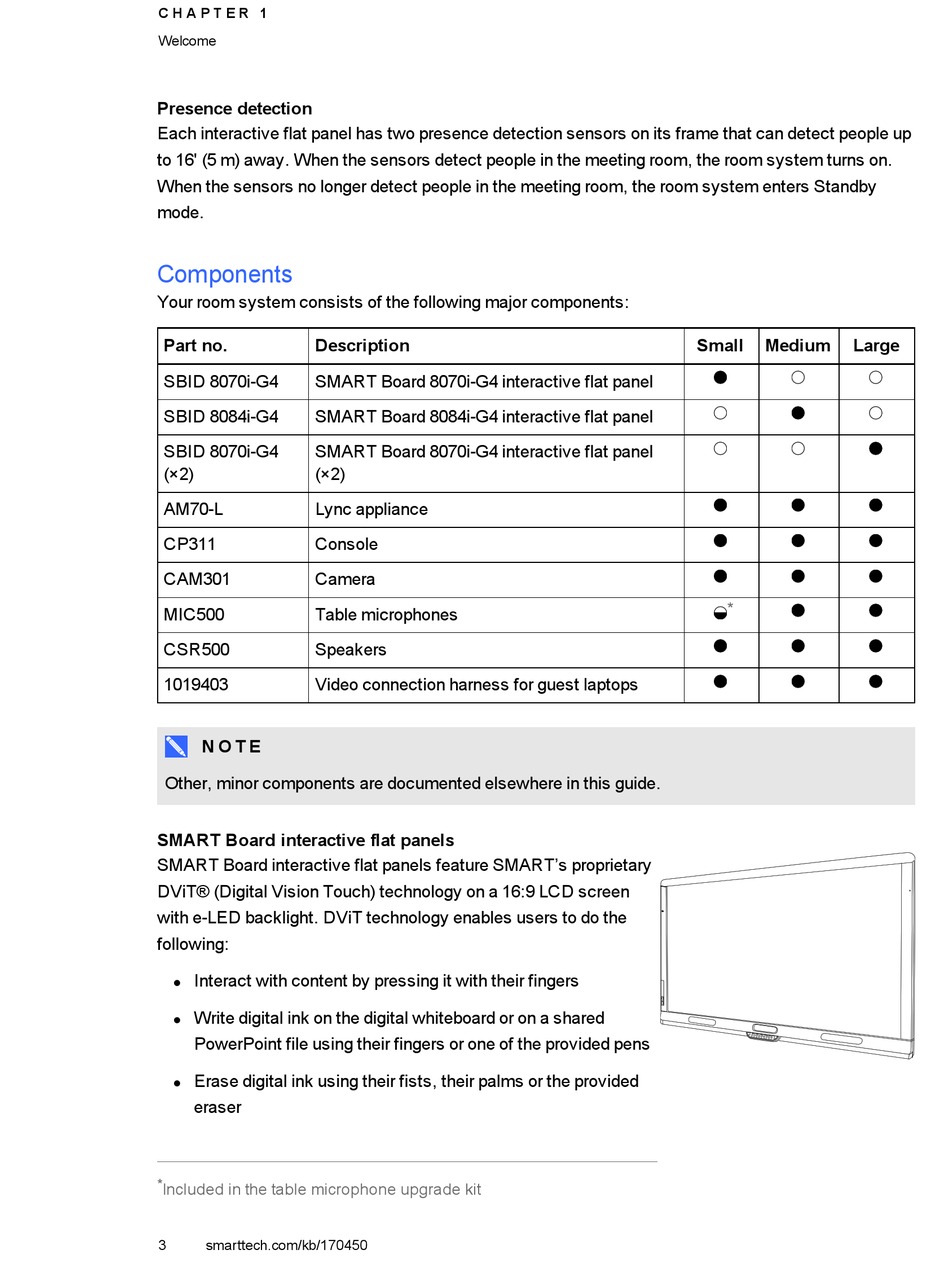

Presence Detection; Components; Smart Board Interactive Flat Panels - SMART Room System Setup And Maintenance Manual

C H A P T E R 1
Welcome

Presence detection

Each interactive flat panel has two presence detection sensors on its frame that can detect people up
to 16' (5 m) away. When the sensors detect people in the meeting room, the room system turns on.
When the sensors no longer detect people in the meeting room, the room system enters Standby
mode.

Components

Your room system consists of the following major components:
Part no. Description
SBID 8070i-G4 SMART Board 8070i-G4 interactive flat panel
SBID 8084i-G4 SMART Board 8084i-G4 interactive flat panel
SBID 8070i-G4 SMART Board 8070i-G4 interactive flat panel
(×2) (×2)
AM70-L Lync appliance
CP311 Console
CAM301 Camera
MIC500 Table microphones
CSR500 Speakers
1019403 Video connection harness for guest laptops
N O T E
Other, minor components are documented elsewhere in this guide.
SMART Board interactive flat panels
SMART Board interactive flat panels feature SMART's proprietary
DViT® (Digital Vision Touch) technology on a 16:9 LCD screen
with e-LED backlight. DViT technology enables users to do the
following:
Interact with content by pressing it with their fingers
l
Write digital ink on the digital whiteboard or on a shared
l
PowerPoint file using their fingers or one of the provided pens
Erase digital ink using their fists, their palms or the provided
l
eraser
*
Included in the table microphone upgrade kit
3 smarttech.com/kb/170450
