SMART Board MX Quick Start Manual

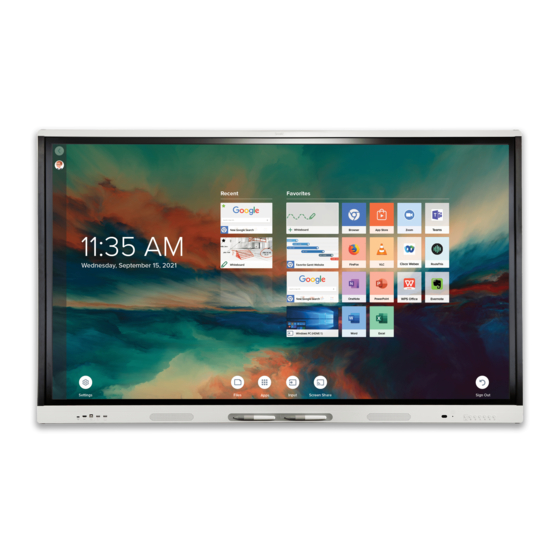

SMART Board® MX
Digital whiteboard. Web browser. Screen sharing. The
SMART Board® MX series with iQ has all the essentials educators
need for bringing the devices students love into any learning
environment. The SMART Board MX series with iQ is a great value
for schools that need an interactive display on a budget.
Front control panel
The front control panel includes buttons for turning the
display on and off, selecting the video source, opening the
display's settings, freezing and unfreezing the screen, and
controlling the volume.
Front connector panel
The front connector panel includes connectors for USB drives
and other devices and a computer or other input source.
Viewing a connected computer's input
1. Connect a device to the display's HDMI 1, HDMI 2, HDMI 3 or
VGA connectors.
NOTE
To enable touch control of the device, connect a USB cable
to the associated USB port.
2. Press Input
on the front control panel.
The Input selection menu appears.
NOTE
Inputs with devices connected are blue, and inputs
without a connection are black.
3. Tap the input you want to view.
The display looks for a connection, and the computer's
desktop appears on the display's screen.
Switching to the iQ experience
1. Press Input on the front control panel.
The Input selection menu appears.
2. Tap OPS.
The iQ experience appears on the display's screen.
Using the Home screen
You can also open Screen Share, the Files Library and settings
from the Home screen.
To show the Home screen
Tap the Home button
Whiteboard
Using Whiteboard, you can write and erase notes on the display
just as you do on a traditional dry erase board. You can also save
your notes for later reference and share them using the
SMART kapp® app.
To start a Whiteboard
Open the Apps Library and tap Whiteboard
To write in digital ink
1. Pick up a pen.
2. Use the pen to write in digital ink.
.
.
smarttech.com/kb/171345
