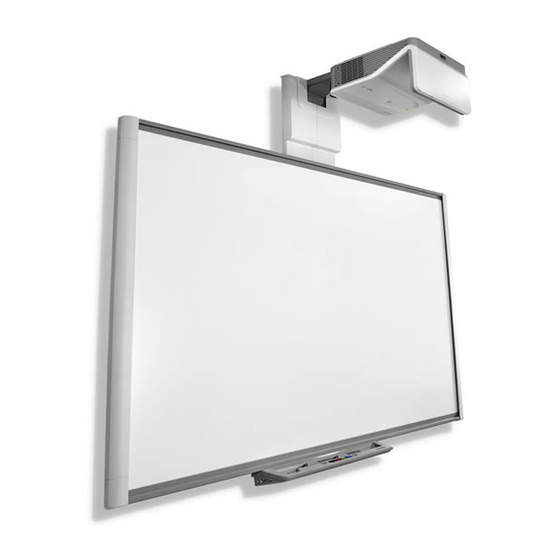

SMART M600i6 Configuration And User's Manual

Board interactive whiteboard systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

SMART Board® M600i6
interactive whiteboard systems
CONFIGURATION AND USER'S GUIDE
FOR MODELS M680i6 AND M685i6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M600i6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMART M600i6

Summary of Contents for SMART M600i6

  • Page 1 SMART Board® M600i6 interactive whiteboard systems CONFIGURATION AND USER’S GUIDE FOR MODELS M680i6 AND M685i6...
  • Page 2 © 2013–2015 SMART Technologies ULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written consent of SMART Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.

  • Page 3: Important Information

    Failure to follow the installation instructions shipped with your SMART product could result in personal injury and damage to the product. To reduce the risk of fire or electric shock, do not expose the SMART product to rain or moisture.
  • Page 4 Do not place the unit in hot locations, such as near heating equipment. Doing so could cause a malfunction and shorten the life of the projector. Avoid setting up and using the SMART product in an area with excessive levels of dust, humidity and smoke.

  • Page 5: Environmental Requirements

    Disconnect the product from its power source when it’s not used for a long period. Other precautions If you own a SMART product other than a SMART Board interactive whiteboard system, refer to the installation manual for your product for relevant warnings and maintenance instructions.
  • Page 6 330 ohm, 150 pF probe (air discharge) Unmated connectors meet no malfunction or damage up to 4kV (both polarities) for direct (contact) discharge Cables All SMART Board interactive whiteboard system cables should be shielded to prevent potential accidents and degraded video and audio quality. Conducted and...

  • Page 7: Table Of Contents

    Contents Important information Safety warnings, cautions and important information Environmental requirements Chapter 1: About your interactive whiteboard system SMART Board interactive whiteboard system features Included accessories Chapter 2: Installing your interactive whiteboard system Choosing a location Choosing a height Securing the projector to the boom...
  • Page 8 CONTENTS Appendix C: Integrating other devices Video format Connecting peripheral sources and outputs Appendix D: Remote control code definitions Appendix E: Hardware environmental compliance Waste Electrical and Electronic Equipment and Battery regulations (WEEE and Battery Directives) Batteries Mercury More information Index smarttech.com/kb/170549...

  • Page 9: Chapter 1: About Your Interactive Whiteboard System

    Included accessories Remote control Pens Optional accessories Your SMART Board interactive whiteboard system combines the following components: SMART Board M600 series interactive whiteboard Wall-mounted, short-throw SMART UF70 or SMART UF70w projector Accessories and optional equipment This chapter describes the features of your interactive whiteboard and provides information about product parts and accessories.

  • Page 10: Smart Board Interactive Whiteboard System Features

    DVD/Blu-ray™ players, VCRs, document cameras and digital cameras, and can project media from these sources onto the interactive screen. When you use SMART software with your SMART Board interactive whiteboard system, you can write or draw over the projected computer image in digital ink using a pen tray pen or your finger, and then save these notes to a .notebook file or directly into any Ink Aware application.

  • Page 11: Smart Uf70 Or Smart Uf70W Projector

    WXGA, QVGA, VGA, SVGA, XGA, SXGA, SXGA+ and UXGA video format compatibility Native 1024 × 768 resolution (SMART UF70 projector) Native 1280 × 800 resolution (SMART UF70w projector in 16:10 aspect ratio mode) Remote management via a serial RS-232 interface, web page or SNMP...

  • Page 12: Included Accessories

    Optional accessories You can add a variety of accessories to your interactive whiteboard to best meet your specific needs. Purchase these items from your authorized SMART reseller (smarttech.com/where). For more information on accessories, go to smarttech.com/accessories. smarttech.com/kb/170549...

  • Page 13: Chapter 2: Installing Your Interactive Whiteboard System

    Install the projector and your interactive whiteboard on the same flat surface. For best presentation alignment, mount your interactive whiteboard system in a location that’s central to your audience’s viewing direction. For mobile or adjustable installation options, contact your authorized SMART reseller. WARNING smarttech.com/kb/170549...

  • Page 14: Choosing A Height

    Choosing a height SMART includes a mounting template with each interactive whiteboard system. If you lose this template, contact your authorized SMART reseller. Using this template ensures that you can do the following: Mount the projector at a safe height for head space clearance, while maintaining enough space for airflow and installation access above the unit.

  • Page 15: Installing Smart Software

    Download SMART software from smarttech.com/software. These web pages list the minimum hardware requirements for each software version. If SMART software is already installed on your computer, take this opportunity to upgrade your software to ensure compatibility.

  • Page 17: Chapter 3: Using Your Interactive Whiteboard System

    Chapter 3 Using your interactive whiteboard system Using your projector Using your remote control Replacing the remote control battery Using the remote control buttons Adjusting projector settings Focusing the image Adjusting the image Projector connection diagram Using your interactive whiteboard This chapter describes the basic operation of your interactive whiteboard system and explains how to set up your remote control, retrieve system information, access the projector’s image adjustment options and integrate your interactive whiteboard system with peripheral devices.

  • Page 18: Replacing The Remote Control Battery

    CHAPTER 3 USING YOUR INTERACTIVE WHITEBOARD SYSTEM Replacing the remote control battery Follow this procedure to replace the remote control battery. WARNING Reduce the risk associated with a leaking battery in the projector’s remote control by following these practices: Use only the specified CR2025 coin-cell battery. Remove the battery when the remote control is unused for an extended period.

  • Page 19: Using The Remote Control Buttons

    CHAPTER 3 USING YOUR INTERACTIVE WHITEBOARD SYSTEM Using the remote control buttons The projector remote control enables you to access on-screen menus and change projector settings. Use the Power button on the remote control to put the projector into Standby mode or to turn it on.

  • Page 20: Adjusting Projector Settings

    Keep your remote control in a safe place because there is no other way to access menu options. Setting Notes Image Adjustment menu Display Mode Indicates the projector’s The default is SMART Presentation. display output (SMART Presentation, Bright Room, Dark Room, sRGB and User). Brightness Adjusts projector brightness The default is 50.
  • Page 21 H-Position Moves the horizontal position Don’t adjust this setting unless you’re advised of the source video left or right to by SMART Support. from 0 to 100 (relative to the Apply this setting only after you make all projected image). boom adjustments.
  • Page 22 CHAPTER 3 USING YOUR INTERACTIVE WHITEBOARD SYSTEM Setting Notes The default is on Microphone Enables or disables the microphone The default is on Speaker Enables or disables the speaker Projector Functions menu Auto Signal Enables or disables signal The default is off. Detect searching of input connectors.
  • Page 23 Startup Screen, Preview displayed. Startup Screen), or Image SMART displays the default SMART logo on Alignment Screen. a blue background. Capture User Startup Screen closes the on- screen display menu and captures the entire projected image.
  • Page 24 CHAPTER 3 USING YOUR INTERACTIVE WHITEBOARD SYSTEM Setting Notes Status Displays the current network The default is off. status (Connected, Disconnected or Off). DHCP Displays the status of the The default is on. network’s Dynamic Host On enables a DHCP server on the network to Configuration Protocol (DHCP) automatically assign an IP address to the as On or Off.
  • Page 25 CHAPTER 3 USING YOUR INTERACTIVE WHITEBOARD SYSTEM Setting Notes Projector Name Displays the projector’s name You can set the projector’s name using the as set by an administrator remote management features (see Remotely (maximum 12 characters). managing your system through a network interface on page 45 and Remotely managing your system through an RS-232 serial interface on page 53).

  • Page 26: Focusing The Image

    CHAPTER 3 USING YOUR INTERACTIVE WHITEBOARD SYSTEM Setting Notes Firmware Displays the projector’s digital Version display processor (DDP) firmware version in x.x.x.x format. MPU Version Displays the projector microprocessor unit (MPU) firmware version in x.x.x.x format. Network Version Displays the projector’s If you haven’t enabled the Network and VGA network communications Out setting, this setting is unable to display...

  • Page 27: Adjusting The Image

    USING YOUR INTERACTIVE WHITEBOARD SYSTEM Adjusting the image Refer to these notes when adjusting the projected image, as described in the included SMART Board M600i6 interactive whiteboard system installation guide (smarttech.com/kb/170555). While adjusting the projected image size, shape and location, use the projector’s default background so that you can see the full projected image clearly.
  • Page 28 CHAPTER 3 USING YOUR INTERACTIVE WHITEBOARD SYSTEM 11 12 13 14 Connector Connect to: Power Mains power supply 7-pin mini-DIN [Not used] 4-pin power mini-DIN 5V/2A output [Not used] HDMI input High-definition video and audio source (not included) DB15F (DE-15F) RGB video input (VGA 1) Primary computer (not included) DB15F (DE-15F) RGB video output (VGA Secondary display (not included)

  • Page 29: Using Your Interactive Whiteboard

    (smarttech.com/kb/170410) for in-depth information on using your interactive whiteboard and its features. When you connect your SMART Board interactive whiteboard to a computer with SMART software, you can access the full capabilities of your interactive whiteboard. For additional resources, go to smarttech.com, click the flag icon in the top-right corner, and then select your country and language.

  • Page 31: Chapter 4: Maintaining Your Interactive Whiteboard System

    Maintaining your interactive whiteboard For information on maintaining your interactive whiteboard, see the SMART Board M600 interactive whiteboard installation guide (smarttech.com/kb/170555). With proper care, your SMART Board interactive whiteboard will provide years of trouble-free service. Preventing damage to your interactive whiteboard Although the surface of your interactive whiteboard is very durable, take the following precautions to prevent damage.

  • Page 32: Cleaning The Projector

    CHAPTER 4 MAINTAINING YOUR INTERACTIVE WHITEBOARD SYSTEM Don’t use abrasive erasers or harsh chemicals to clean your product. The digital cameras located in the corners of the frame are protected from dust and dirt by windows. In extremely dusty environments, spray a household, alcohol-free glass cleaner, such as Windex®...

  • Page 33: Focusing And Adjusting The Projector Image

    CHAPTER 4 MAINTAINING YOUR INTERACTIVE WHITEBOARD SYSTEM Do not spray cleaners, solvents or compressed air directly on the projector. Do not use spray cleaners or solvents near any part of the projector because they can damage or stain the unit. Spraying the system could spread a chemical mist on some of the projector’s components and lamp, resulting in damage and poor image quality.

  • Page 34: Replacing The Projector Lamp

    Thoroughly clean the area around the projector, and discard any edible items placed in that area because they could be contaminated. Call your authorized SMART reseller for instructions. Do not attempt to replace the lamp. Replacing the lamp module in a wall-mounted projector can result in a fall or injury. Use caution when climbing a ladder, and consider removing the projector from the wall- mounting bracket to replace the lamp module.
  • Page 35 Wear protective eyewear while changing the lamp module. Failure to do so can cause injuries including loss of eyesight if the lamp shatters or bursts. Use only replacement lamp modules approved by SMART Technologies. Contact your authorized SMART reseller for replacement parts.
  • Page 36 CHAPTER 4 MAINTAINING YOUR INTERACTIVE WHITEBOARD SYSTEM 5. Use a Phillips screwdriver to loosen the two captive screws from the bottom of the lamp module and gently remove the lamp module. NOTE Don’t try to remove these screws. Captive screws can’t be removed, only loosened. To put the new lamp module into the projector 1.

  • Page 37: Resetting The Lamp Hours

    CHAPTER 4 MAINTAINING YOUR INTERACTIVE WHITEBOARD SYSTEM 4. Replace the lamp cover. 5. Connect the power cable to the wall outlet. 6. Press the Power button once on the remote control to confirm that the projector is operating and that the lamp module is correctly installed. 7.
  • Page 38 You’re unable to reset the Display Hour value because it’s the running total of hours the projector has been in use. 3. Press the Menu button on the remote control. The SMART UF70 Settings menu appears. to confirm that Lamp Hour is reset to zero. 4. Select...

  • Page 39: Chapter 5: Troubleshooting Your Interactive Whiteboard System

    Chapter 5 Troubleshooting your interactive whiteboard system Before you start Locating status lights Locating serial numbers Determining you interactive whiteboard system’s status Resolving interactive whiteboard issues Resolving operation issues Resolving projector issues Resolving projector errors Your projector stops responding The “Projector Overheated”, “Fan Failure”, “Lamp Failure” or “Color Wheel Failure” message appears The “Lamp Failure”...

  • Page 40: Before You Start

    Locating serial numbers The SMART Board M600 interactive whiteboard serial number is located on the lower-right edge of the frame, as well as on the back of the interactive whiteboard. For more information, see the SMART Board M600 series interactive whiteboard user’s guide (smarttech.com/kb/170410).

  • Page 41: Determining You Interactive Whiteboard System's Status

    CHAPTER 5 TROUBLESHOOTING YOUR INTERACTIVE WHITEBOARD SYSTEM The SMART UF70 and UF70w projector's serial number is located on the top of the projector. For the locations of serial numbers on other components and accessories, see smarttech.com/support. Determining you interactive whiteboard system’s status Use the following table to determine the status of your interactive whiteboard system.

  • Page 42: Resolving Interactive Whiteboard Issues

    Resolving interactive whiteboard issues This section includes information on resolving issues with your interactive whiteboard. For information not covered in this section, see the SMART Board M600 series interactive whiteboard user’s guide (smarttech.com/kb/170410). Resolving operation issues To resolve operation issues, complete the following tasks: Confirm that all cables are securely connected to the back of the pen tray, computer and control module.

  • Page 43: Resolving Projector Issues

    Resolving projector issues Resolving projector errors System administrators can resolve the following projector errors on their own prior to contacting SMART Support. Performing initial troubleshooting on your projector reduces the time of a support call. Your projector stops responding If your projector stops responding, perform the following procedure.

  • Page 44: The "Lamp Failure" Message Appears

    4. If replacing the lamp module doesn’t resolve the issue, put the projector into Standby mode, disconnect the power cable, and then contact your authorized SMART reseller. The projector Power and Service lights are off If the projector Power and Service lights are both off, one of the following issues is occurring: There was a power outage or a power surge.

  • Page 45: Resolving Image Issues

    If a video source signal isn’t detected, if it’s out of range of the projector’s support video modes or if the signal is being switched to a different device or input, the projector doesn’t show a source signal and instead displays the SMART logo on a blue screen. smarttech.com/kb/170549...

  • Page 46: Partial, Scrolling Or Incorrectly Displayed Image

    1. Select Start > Control Panel. 2. Click Display, and then select Adjust resolution. 3. Verify that your display resolution setting is 1024 × 768 (SMART UF70 projector), 1280 × 800 (SMART UF70w projector in 16:10 aspect ratio mode) or 1280 × 720 (SMART UF70w projector in 16:9 aspect ratio mode).

  • Page 47: Unstable Or Flickering Image

    5. Disconnect the power cable from the power outlet, and then wait at least 60 seconds. 6. Connect the power cable, and then turn on the projector. 7. If the previous steps don’t resolve the issue, contact your authorized SMART reseller. smarttech.com/kb/170549...

  • Page 48: Your Image Doesn't Fit The Interactive Whiteboard

    CHAPTER 5 TROUBLESHOOTING YOUR INTERACTIVE WHITEBOARD SYSTEM Your image doesn’t fit the interactive whiteboard If you’re using a SMART UF70w projector with a wide screen interactive whiteboard, verify that you’re using the correct aspect ratio mode for the interactive whiteboard: Interactive whiteboard Aspect ratio mode SMART Board M685 interactive whiteboard...

  • Page 49: Resolving Network Communication Issues

    You must display the source input’s video to play its audio through the connected speakers or audio system. 6. If the previous steps don’t resolve the issue, contact your authorized SMART reseller. Resolving network communication issues If you don’t have network access, perform the following procedure to troubleshoot your system.

  • Page 50: Accessing The Service Menu

    CHAPTER 5 TROUBLESHOOTING YOUR INTERACTIVE WHITEBOARD SYSTEM Accessing the service menu CAUTION To prevent tampering or unintentional changes, only system administrators should access the service menu. Do not share the service menu access code with casual users of your interactive whiteboard system. Do not adjust any settings in the service menu other than those listed in this guide.

  • Page 51: Transporting Your Interactive Whiteboard System

    This packaging was designed to provide optimal shock and vibration protection. If you no longer have your original packaging, purchase the same packaging directly from your authorized SMART reseller. If you prefer to use your own packaging materials, make sure you adequately protect your unit.

  • Page 53: Appendix A: Remotely Managing Your System Through A Network Interface

    E-mail alerts Password settings Simple Network Management Protocol (SNMP) This chapter includes detailed instructions on how to remotely manage your SMART Board interactive whiteboard system settings through a network interface. Web page management You can access advanced setup features via the projector’s web page. This web page enables you to manage the projector from a remote location using any computer connected to your intranet.

  • Page 54: Accessing Web Page Management

    1. Start your Internet browser. 2. Type the IP address in the address box, and then press ENTER. The SMART UF70 Projector Settings window appears. 3. Select the menu options in the left pane to access the settings on each page.
  • Page 55 French or Spanish, depending on television channel or media setup. Display Mode Adjusts the display output to SMART Presentation, Bright Room, Dark Room, sRGB and User modes so you can project images from various sources with consistent color performance: SMART Presentation is recommended for color fidelity.
  • Page 56 APPENDIX A REMOTELY MANAGING YOUR SYSTEM THROUGH A NETWORK INTERFACE Submenu setting Description Color Adjusts the Red, Green, Blue, Cyan, Magenta and Yellow colors on the projector from 0 to 100 to provide custom color and luminance output. Each color has a default value of 100. Adjustments to the color settings register to the User mode.
  • Page 57 See Video format on page 77 for descriptions of each mode. Startup Screen Sets the type of startup screen to SMART or User. The SMART screen is the default SMART logo on a blue background. The User screen uses the saved picture from the Capture User Startup Screen function.

  • Page 58: Network Settings

    APPENDIX A REMOTELY MANAGING YOUR SYSTEM THROUGH A NETWORK INTERFACE Submenu setting Description Emergency Alert Turns the on-screen alert broadcast message on or off. When enabled, this message displays over the current projected image. Alarm Message / Alert Displays an on-screen emergency notification message (maximum Message 60 characters).

  • Page 59: E-Mail Alerts

    APPENDIX A REMOTELY MANAGING YOUR SYSTEM THROUGH A NETWORK INTERFACE Submenu setting Description Read-Only Community Sets a password that is required for each SNMP get request to the device. NOTE The default for Read-Only Community is public. Read/Write Community Sets a password that is required for each SNMP set request to the device.

  • Page 60: Simple Network Management Protocol (Snmp)

    Submit. NOTE The projector sends an alert e-mail (SMART Alert) to your e-mail address. Click E-mail Alert Test to confirm that your e-mail address and SMTP server settings are correct by sending a test e-mail (SMART Alert-Test Mail).

  • Page 61: Appendix B: Remotely Managing Your System Through An Rs-232 Serial Interface

    Unknown command This appendix includes detailed instructions on how to set up your computer or room control system to remotely manage your SMART Board interactive whiteboard system settings through an RS-232 serial interface. By connecting a computer or room control system to the interactive whiteboard, you can select video inputs, start up or shut down your interactive whiteboard system and request information such as projector lamp use, current settings and network addresses.

  • Page 62: Serial Interface Settings

    APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE Serial interface settings The serial interface of the projector acts as a Data Communications Equipment (DCE) device and its settings can’t be configured. You must configure your computer’s serial communication program (such as Microsoft® HyperTerminal) or your room control system’s serial communication settings with the following values: Setting...

  • Page 63: Projector Programming Commands

    APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE 4. Type commands to configure your settings. NOTES To see a list of commands available in the current operating mode, type ? and then press ENTER. If you’re using a terminal emulation program, turn on your program’s local echo setting to see characters as you type them.

  • Page 64: Field Definitions

    The projector’s current power state. Different projectors have different potential power states. These power states match the power cooling states in the SMART UF70 and SMART UF70w projectosr. confirm off idle Source Application Selection Use these commands to switch between input sources and embedded applications. These commands also control the USB switch for these sources.

  • Page 65: Field Definitions

    APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE Field definitions Field Description Possible values current input VGA1 A text list of available video source inputs. None is a non-selectable input and is returned Composite in response to a “get input” command when the HDMI1 projector is turned off.

  • Page 66: Video Control

    APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE > set input=next input = composite > get videoinputs videoinputs = vga1, composite, hdmi1 > get usb1source usb1source = vga1 > get usb2source usb2source = hdmi1 > set usb2source=hdmi1 usb2source = hdmi1 >...
  • Page 67 APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE get tint tint=[current] set sharpness [target] sharpness=[current] get sharpness sharpness=[current] set hposition [target] hposition=[current] get hposition hposition=[current] set vposition [target] vposition=[current] get vposition vposition=[current] set whitepeaking [target] whitepeaking=[current] get whitepeaking whitepeaking=[current] set degamma [target] degamma=[current]...

  • Page 68: Field Definitions

    REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE Field definitions Field Possible values Description target displaymode The ranges must match the OSD ranges. = SMART Presentation = Bright room = Dark room = sRGB = User current displaymode The ranges must match the OSD ranges.
  • Page 69 APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE Field Possible values Description target tint The ranges must match the OSD ranges. + val – val = 0 to 100 current tint Range: 0 to 100 The ranges must match the OSD ranges. target sharpness The ranges must match the OSD ranges.
  • Page 70 APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE Field Possible values Description target blue The ranges must match the OSD ranges. + val – val = 0 to 100 current blue Range: 0 to 100 The ranges must match the OSD ranges. target cyan The ranges must match the OSD ranges.

  • Page 71: Audio Control

    APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE brightness=65 >set brightness +5 brightness=70 >set brightness -15 brightness=55 > All video commands also have an optional source specification. For example, to set the brightness of a specific source, use the following command. EXAMPLE >set brightness = 65 brightness=65...

  • Page 72: Field Definitions

    APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE Command Response Powered off set sysoutputsw sysoutputsw=[current] [target] get sysoutputsw sysoutputsw=[current] Field definitions Field Possible values Description Use + or – to change the volume incrementally. target volume + val Enter a number within the range to set the –...

  • Page 73: Network Information

    APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE Field Possible values Description current sysoutputsw = line+spkr Current state of the system output switch = line = spkr = none Use the above commands to set the property to an absolute value or to adjust the current value. EXAMPLE >get volume volume=0...

  • Page 74: Field Definitions

    APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE Command Response Powered off get gateway gateway=[current] set primarydns [target] primarydns=[current] get primarydns primarydns=[current] get macaddr macaddr=[MAC address] Field definitions Field Possible values Description current netstatus connected Current status of the network interface disconnected current network Current status of the network module and the...

  • Page 75: System Information

    APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE Field Possible values Description = Range: 0.0.0.0 to target primarydns Target primary dns 255.255.255.255 xx-xx-xx-xx-xx-xx MAC address The device’s MAC address. System information Use these commands to set your system information. Command/response definitions Command Response...
  • Page 76 APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE Command Response Powered off get projectionmode projectionmode= [current] set startupscreen startupscreen=[current] no [target] get startupscreen startupscreen=[current] no set restoredefaults restoredefaults= [current] get lamphrs lamphrs=[current] set lamphrs [target] lamphrs=0 get syshrs syshrs=[current] get resolution resolution=[current]...

  • Page 77: Field Definitions

    APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE Command Response Powered off set videomute [target] videomute=[current] get videomute videomute=[current] set vgaoutnetenable vgaoutnetenable= [target] [current] get vgaoutnetenable vgaoutnetenable= [current] emergencyalertmsg= emergencyalertmsg [current] [target] emergencyalertmsg= emergencyalertmsg [current] set emergencyalert emergencyalert= [target] [current]...
  • Page 78 APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE Field Possible values Description target autopoweroff + val The ranges must match the OSD ranges. – val = 0 to 240 current autopoweroff + val The ranges must match the OSD ranges. –...
  • Page 79 Current resolution of the input. If no signal is detected, “resolution=no signal” appears. 1024x768 … no signal native aspect ratio 4:3 for SMART UF70, Native aspect ratio. DLP resolution of the 16:10 for SMART projector. Returns the actual native aspect ratio UF70w of the projector.
  • Page 80 APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE Field Possible values Description current language Arabic Must match the OSD setting Chinese (Simplified) Chinese (Traditional ) Czech Danish Dutch English Finnish French German Greek Hindi Italian Japanese Korean Norwegian (Norsk) Polish...

  • Page 81: Service Information

    APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE Field Possible values Description target contactinfo = user string current contactinfo user string current modelnum user string Must match the OSD setting current videomute Must match the OSD setting. target videomute = on Must match the OSD setting.

  • Page 82: Field Definitions

    APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE Command Response Powered off set testpattern [target] testpattern=[current] set colorwheelidx colorwheelidx= [target] [current] get colorwheelidx colorwheelidx= [current] get failurelog failurelog=[current] get error# error#=[current] set factoryreset factoryreset=[current] [target] set highspeedfan highspeedfan= [target] [current]...
  • Page 83 APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE Field Description Possible Values target colorwheelidx = ??? The ranges must match the OSD ranges. current colorwheelidx The ranges must match the OSD ranges. current failurelog normal Projector's error state. The modes are projector dependent.

  • Page 84: Unknown Command

    APPENDIX B REMOTELY MANAGING YOUR SYSTEM THROUGH AN RS-232 SERIAL INTERFACE Field Description Possible Values target statereporting = on Target state reporting value = off current poweroverride A power override forces the projector to remain on when the command is received. This command isn’t persistent and isn’t stored to non-volatile memory (cleared on power cycle).

  • Page 85: Appendix C: Integrating Other Devices

    SMART UF70 projector SMART UF70w projector Connecting peripheral sources and outputs This appendix provides information on integrating your SMART Board interactive whiteboard system with peripheral devices. Video format Your projector has a native video format and various video format compatibility modes. You can change image appearances for certain formats and compatibilities.

  • Page 86: Video Format Compatibility

    Video format compatibility The following tables list the projectors’ compatible VESA RGB video formats by resolution, which the projector adjusts automatically when you use the aspect ratio commands described in Adjusting projector settings on page 12. SMART UF70 projector Resolution Mode Aspect ratio...

  • Page 87: Smart Uf70W Projector

    1680x1050 50 16:10 49.974 Letterbox 1680 × 1050 1680x1050 50 16:10 59.954 Letterbox 1920 × 1080 HD 1080 16:9 Letterbox SMART UF70w projector Resolution Mode Aspect Refresh Match Input Match Input ratio rate (Hz) appearance appearance (16:10 aspect (16:9 aspect ratio mode) ratio mode) 720 ×...
  • Page 88 APPENDIX C INTEGRATING OTHER DEVICES Resolution Mode Aspect Refresh Match Input Match Input ratio rate (Hz) appearance appearance (16:10 aspect (16:9 aspect ratio mode) ratio mode) 1152 × 864 SXGA 75 Pillarbox Pillarbox 1280 × 768 WXGA 60 1.67:1 Letterbox Pillarbox 1280 ×...

  • Page 89: Hd And Sd Signal Format Compatibility

    The following tables list the projectors’ high definition (HD) and standard definition (SD) format signal compatibility, which the projector adjusts automatically when you use the aspect ratio commands described in Adjusting projector settings on page 12. SMART UF70 projector Signal format Aspect ratio...

  • Page 90: Video System Signal Compatibility

    The 16:9 command delivers all video modes with black bands along the top and bottom edges of the screen. The Match Input command might deliver video modes with black bands along the top and bottom edges of the screen, depending on the input resolution. SMART UF70 projector Video mode Aspect ratio...

  • Page 91: Connecting Peripheral Sources And Outputs

    APPENDIX C INTEGRATING OTHER DEVICES Connecting peripheral sources and outputs Follow these instructions if you have a peripheral device to connect to your interactive whiteboard system, such as a DVD/Blu-ray player. NOTE Measure the distance between the projector and the peripheral device you want to connect. Make sure each cable is long enough, has plenty of slack and can be placed safely in your room without presenting a trip hazard.

  • Page 93: Appendix D: Remote Control Code Definitions

    Appendix D Remote control code definitions IR signal format: NEC1 Repeat Vendor code Key code format Byte 1 Byte 2 Byte 3 Byte 4 Input Power ( ) Menu Up ( ) Left ( ) Enter ( ) Right ( ) Down ( ) Hide Volume up ( )

  • Page 95: Appendix E: Hardware Environmental Compliance

    Appendix E Hardware environmental compliance SMART Technologies supports global efforts to ensure that electronic equipment is manufactured, sold and disposed of in a safe and environmentally friendly manner. Waste Electrical and Electronic Equipment and Battery regulations (WEEE and Battery Directives) Electrical and electronic equipment and batteries contain substances that can be harmful to the environment and to human health.

  • Page 97: Index

    Index DNS 50 document cameras 83 dust iv 3.5 mm audio connectors 20 DVD players 83 accessories e-mail alerts 51 included 4 electrostatic discharge iv optional 4 emergency alerts 50 alarms 50 emissions iv aspect ratios 15, 49, 77-79, 81-82 environmental requirements iii audio connections for 20...
  • Page 98 INDEX choosing a location 5 Perchlorate material 87 interactive whiteboard peripheral sources 83 about 2 pillarboxing 78-79, 81 indicators and controls of 34 power 20, 46, 55 maintaining 23 projector using 21 about 3 IP address 16, 46, 50 adjusting settings for 12 adjusting the image of 19 cleaning 24 connection diagram for 19...
  • Page 99 45 signal loss 37 WEEE and Battery Directives 87 SMART Board interactive whiteboard See interactive whiteboard whiteboard See interactive whiteboard SMART UF70 or UF70w projector See projector XGA support 78-79 SMART UF70 projector See projector SMTP 51 SNMP 52 sound See audio...
  • Page 102 SMART TECHNOLOGIES smarttech.com/support smarttech.com/contactsupport smarttech.com/kb/170549...
