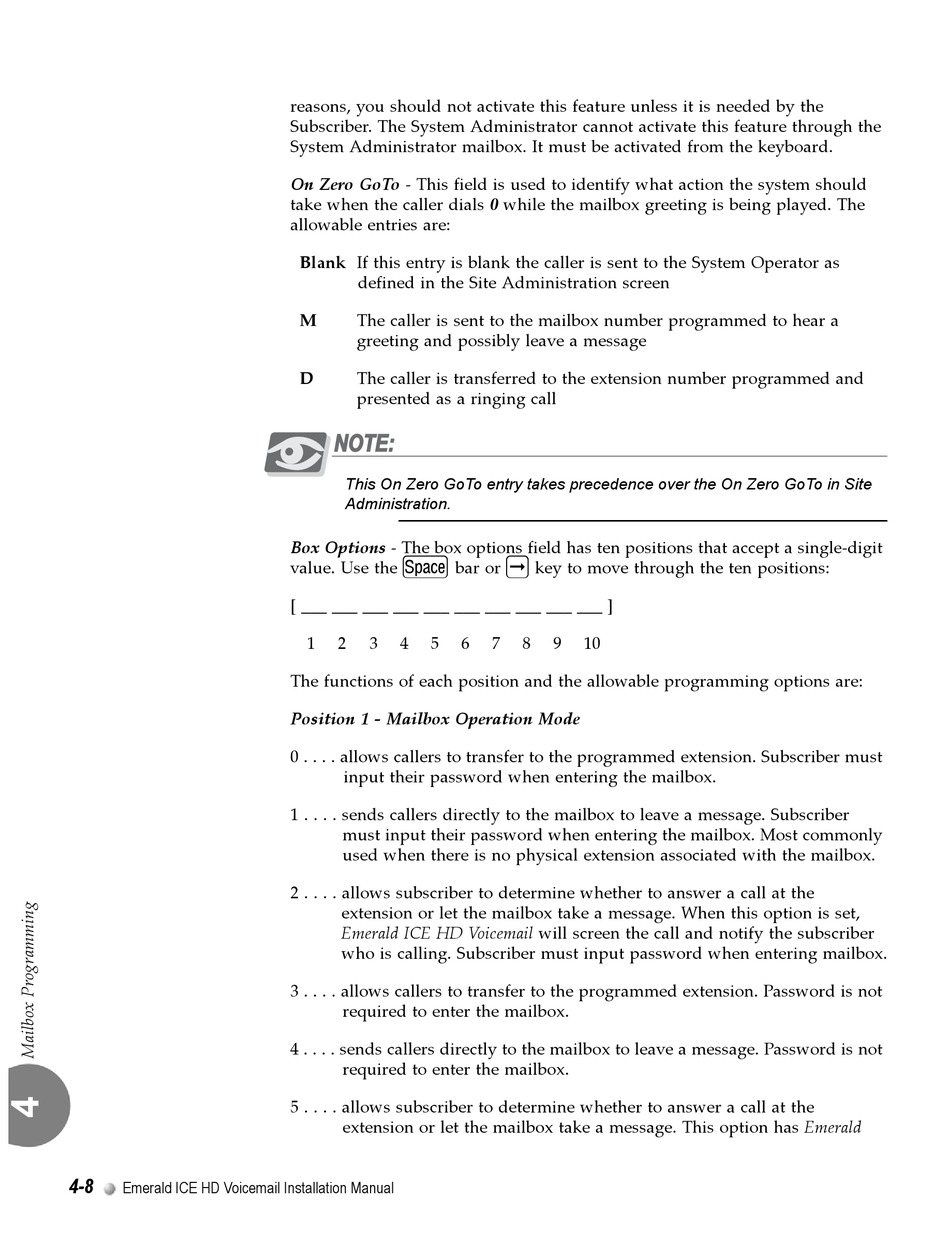

Tadiran Telecom Emerald ICE Installation Manual page 50

4-8
Emerald ICE HD Voicemail Installation Manual
reasons, you should not activate this feature unless it is needed by the
Subscriber. The System Administrator cannot activate this feature through the
System Administrator mailbox. It must be activated from the keyboard.
On Zero GoTo - This field is used to identify what action the system should
take when the caller dials 0 while the mailbox greeting is being played. The
allowable entries are:
Blank If this entry is blank the caller is sent to the System Operator as
defined in the Site Administration screen
M The caller is sent to the mailbox number programmed to hear a
greeting and possibly leave a message
D The caller is transferred to the extension number programmed and
presented as a ringing call
This On Zero GoTo entry takes precedence over the On Zero GoTo in Site
Administration.
Box Options - The box options field has ten positions that accept a single-digit
M
value. Use the bar or
[ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ]
1 2 3 4 5 6
The functions of each position and the allowable programming options are:
Position 1 - Mailbox Operation Mode
0 . . . . allows callers to transfer to the programmed extension. Subscriber must
input their password when entering the mailbox.
1 . . . . sends callers directly to the mailbox to leave a message. Subscriber
must input their password when entering the mailbox. Most commonly
used when there is no physical extension associated with the mailbox.
2 . . . . allows subscriber to determine whether to answer a call at the
extension or let the mailbox take a message. When this option is set,
Emerald ICE HD Voicemail will screen the call and notify the subscriber
who is calling. Subscriber must input password when entering mailbox.
3 . . . . allows callers to transfer to the programmed extension. Password is not
required to enter the mailbox.
4 . . . . sends callers directly to the mailbox to leave a message. Password is not
required to enter the mailbox.
5 . . . . allows subscriber to determine whether to answer a call at the
extension or let the mailbox take a message. This option has Emerald
r
key to move through the ten positions:
7 8 9 10
