16.3
16.4
16-2
Emerald ICE HD Voicemail Installation Manual

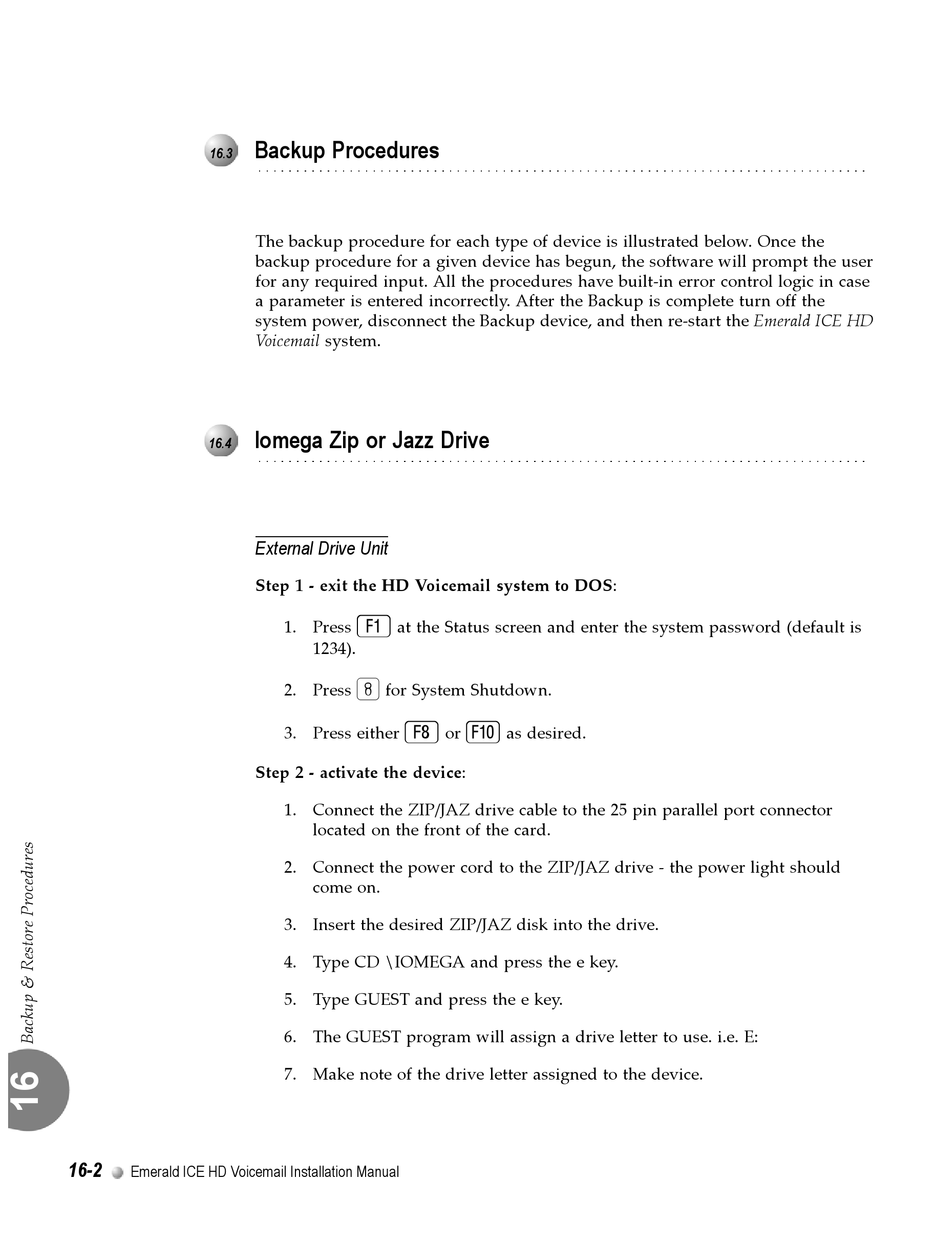

Backup Procedures

The backup procedure for each type of device is illustrated below. Once the
backup procedure for a given device has begun, the software will prompt the user
for any required input. All the procedures have built-in error control logic in case
a parameter is entered incorrectly. After the Backup is complete turn off the
system power, disconnect the Backup device, and then re-start the Emerald ICE HD
Voicemail system.

Iomega Zip or Jazz Drive

External Drive Unit
Step 1 - exit the HD Voicemail system to DOS:
1
1. Press at the Status screen and enter the system password (default is
1234).
8
2. Press for System Shutdown.
8
3. Press either
Step 2 - activate the device:
1. Connect the ZIP/JAZ drive cable to the 25 pin parallel port connector
located on the front of the card.
2. Connect the power cord to the ZIP/JAZ drive - the power light should
come on.
3. Insert the desired ZIP/JAZ disk into the drive.
4. Type CD \IOMEGA and press the e key.
5. Type GUEST and press the e key.
6. The GUEST program will assign a drive letter to use. i.e. E:
7. Make note of the drive letter assigned to the device.
0
or as desired.
