Advanced Connections - Icom IC-GM800 Instruction Manual

9
CONNECTIONS AND INSTALLATION

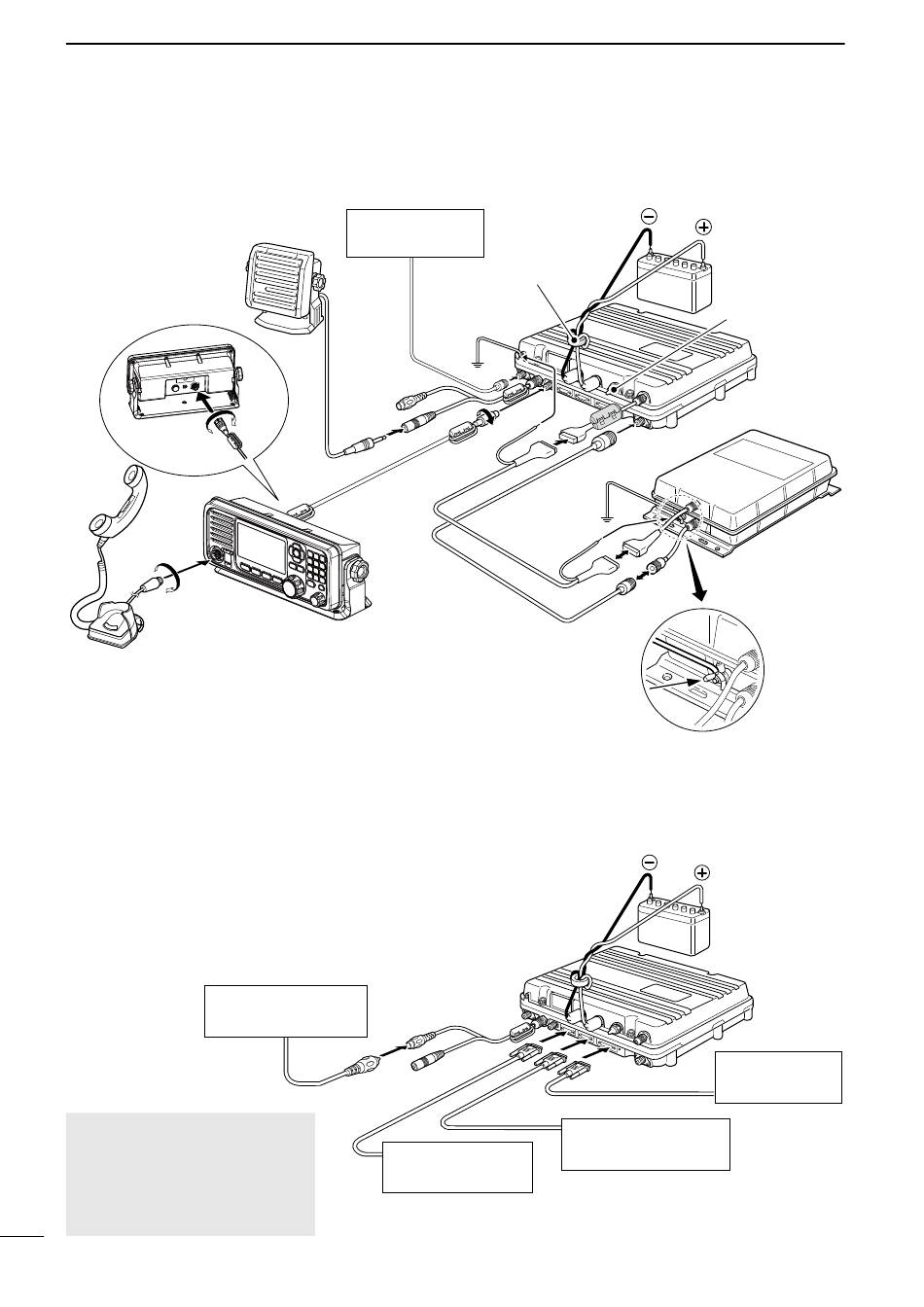

■ Basic connections
SP-24E
( Purchase
separately)
HS-98

■ Advanced connections

• When a PC is connected, the PC has priority over
the remote controller.
• When a PC is connected, you cannot use the
remote controller after the set time period. Ask your
dealer for details.
• When a PC is connected, operating the PC
automatically updates settings on the remote
controller.
NOTE for a remote controller:
If the initial connection does not work,
try reversing the wire connections. The
RS-422A's pin assignments may differ,
depending on the manufacturer.
See pages 87 and 88 for connector
information details.
79
HF antenna
(for DSC reception)
Remote
controller
Position and
UTC time data
IEC61162-1 Ed.4 (2010-11)
Ferrite EMI filter
(p. 82)
Ground
(p. 81)
Ground
(p. 81)
AF/MOD
600Ω ground free line
24 V
battery
[DC ISOLATE]
GM800
main unit
AT-141
24 V
battery
(IBM
Remote controller*
IEC61162-1 Ed.4 (2010-11)
* Connect to a PC through an
RS-422A cable (D-sub 9-pin) for
remote control.
Printer
® centronics or
compatible)
