INSTALLATION AND CONNECTIONS
n

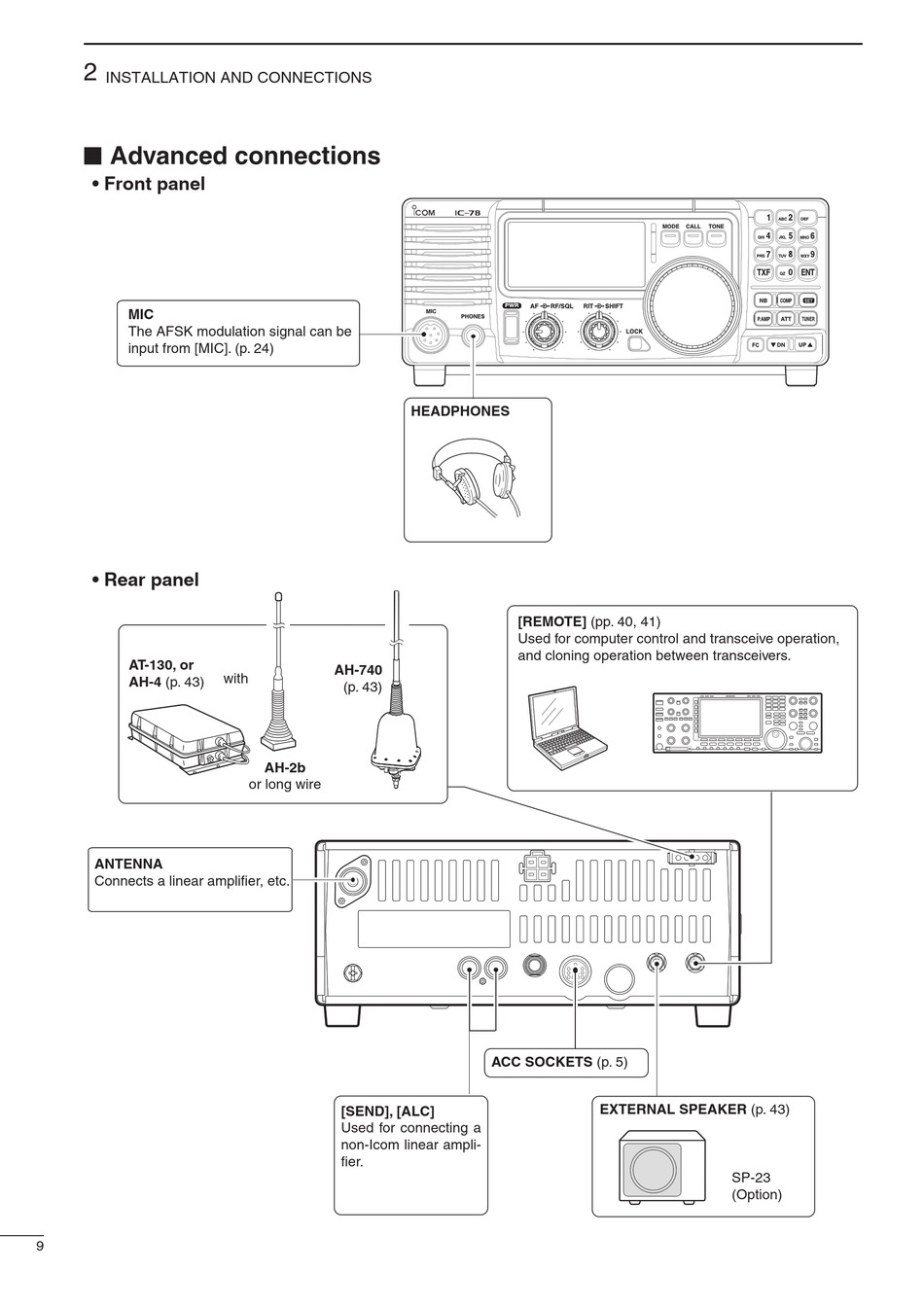

Advanced connections

• Front panel
MIC
The AFSK modulation signal can be
input from [MIC]. (p. 24)
• Rear panel
AT-130, or
AH-4 (p. 43)
ANTENNA
Connects a linear amplifier, etc.
9
AH-740
with
(p. 43)
AH-2b
or long wire
[SEND], [ALC]
Used for connecting a
non-Icom linear ampli-
fier.
PWR
HEADPHONES
[REMOTE] (pp. 40, 41)
Used for computer control and transceive operation,
and cloning operation between transceivers.
ACC SOCKETS (p. 5)
EXTERNAL SPEAKER (p. 43)
SP-23
(Option)
