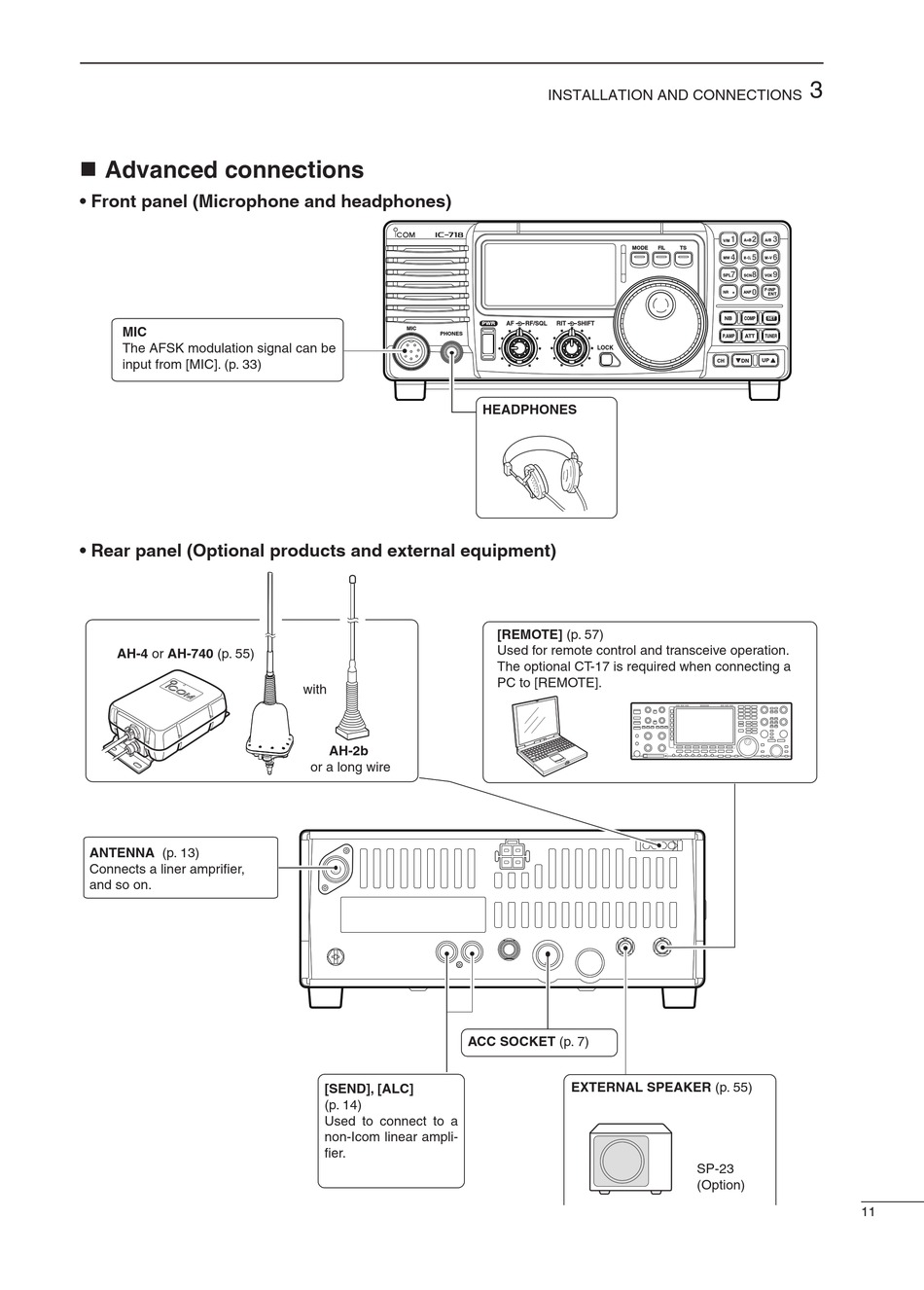

 Advanced connections
• Front panel (Microphone and headphones)
MIC
The AFSK modulation signal can be
input from [MIC]. (p. 33)
• Rear panel (Optional products and external equipment)
AH-4 or AH-740 (p. 55)
ANTENNA (p. 13)
Connects a liner amprifier,
and so on.
IC-718
MIC
PHONES
with
AH-2b
or a long wire
ACC SOCKET (p. 7)
[SEND], [ALC]
(p. 14)
Used to connect to a
non-Icom linear ampli-
fier.
INSTALLATION AND CONNECTIONS
MODE
PWR AF RF/SQL RIT SHIFT
LOCK
HEADPHONES
[REMOTE] (p. 57)
Used for remote control and transceive operation.
The optional CT-17 is required when connecting a
PC to [REMOTE].
EXTERNAL SPEAKER (p. 55)
3
1 2 3
V/M A=B A/B
FIL TS
4 5 6
MW M-CL M V
7 8 9
SPL SCN VOX
.
0 F-INP
NR ANF
ENT
NB COMP SET
P.AMP ATT TUNER
Y
Z
CH DN UP
SP-23
(Option)
11
