I Advanced Connections - Icom IC-910H Instruction Manual

3
INSTALLATION AND CONNECTIONS

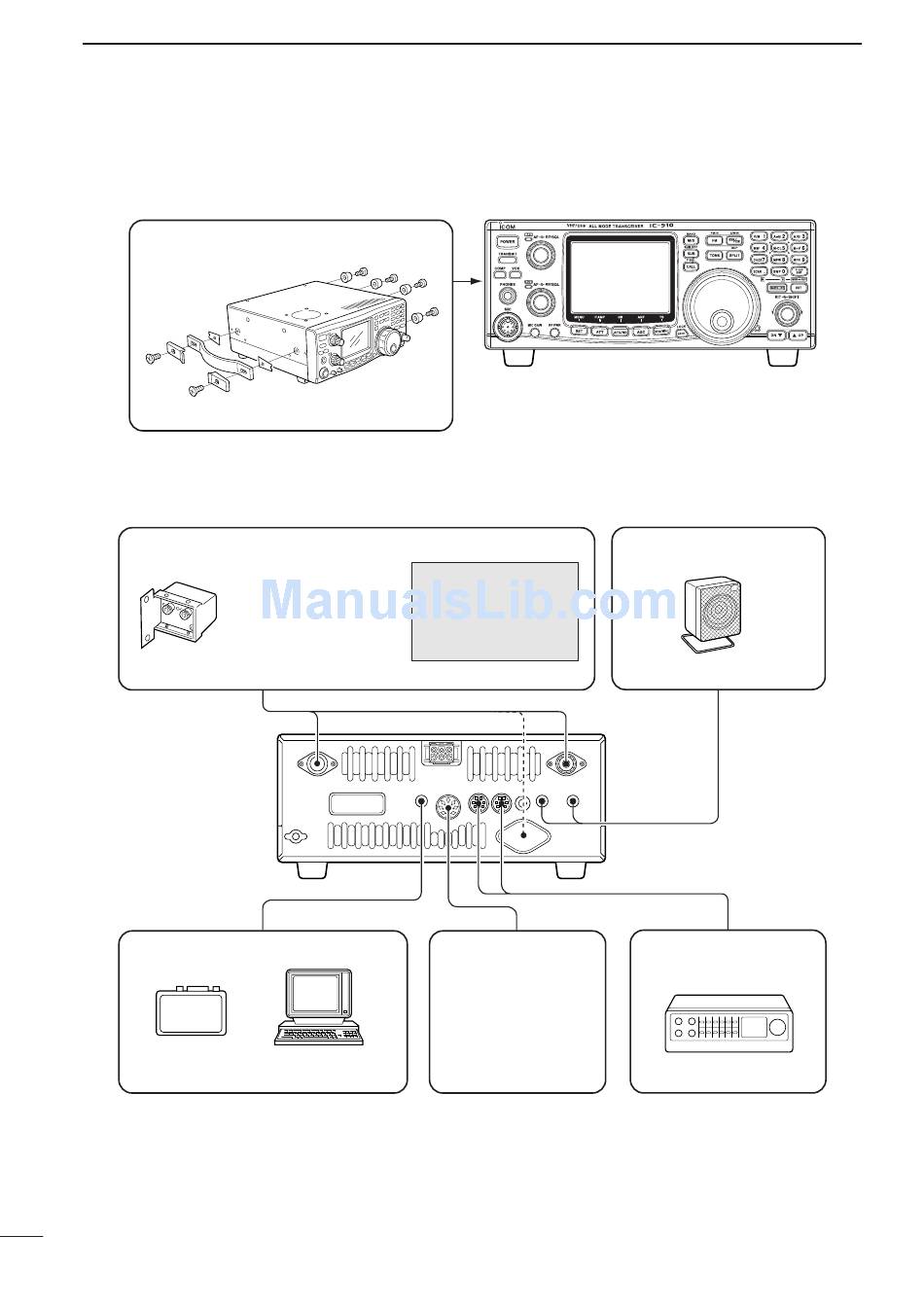

I Advanced connections

• Front panel
MB-23 CARRYING HANDLE
• Rear panel
PREAMP (p. 59)
(144 MHz/430(440) MHz/1200 MHz)
[REMOTE] (p. 78)
CT-17
Used for computer control and transceive
operation.
16
144 MHz : AG-25
430(440) MHz : AG-35
1200 MHz : AG-1200
External all-weather, mast
mounting preamplifiers are
available.
430(440) MHz
From The N3UJJ.COM Document Library From The N3UJJ.COM Document Library
CAUTION: NEVER
connect equipment
(i.e. power, SWR meter)
between transceiver
and preamplifier.
1200 MHz (optional) 144 MHz
MAIN SUB
MAIN SUB
ACC SOCKETS
(pgs. 13, 52)
Used for external
equipment control.
EXTERNAL SPEAKER
(MAIN/SUB) (p. 12)
Use 4–8 Ω speakers.
DATA SOCKETS
(MAIN/SUB) (pgs. 13, 52)
