Extron electronics MVX Series Setup Manual

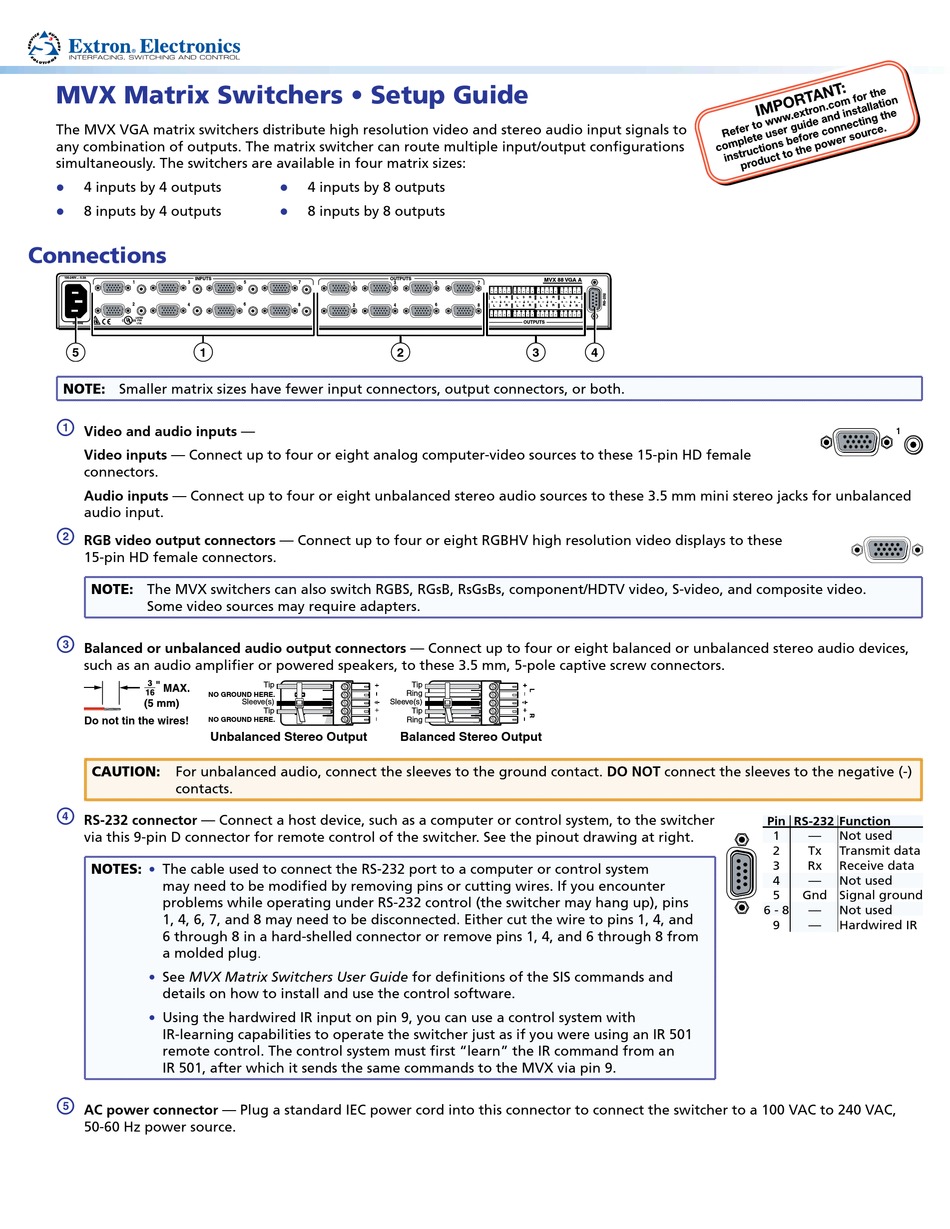

MVX Matrix Switchers • Setup Guide
The MVX VGA matrix switchers distribute high resolution video and stereo audio input signals to
any combination of outputs. The matrix switcher can route multiple input/output configurations
simultaneously. The switchers are available in four matrix sizes:
4 inputs by 4 outputs
z
8 inputs by 4 outputs
z

Connections

INPUTS
100-240V 0.3A
1 3
2 4
LISTED
C U S 1T23
50-60Hz I.T.E.
5 1
NOTE: Smaller matrix sizes have fewer input connectors, output connectors, or both.
a
Video and audio inputs —
Video inputs — Connect up to four or eight analog computer-video sources to these 15-pin HD female
connectors.
Audio inputs — Connect up to four or eight unbalanced stereo audio sources to these 3.5 mm mini stereo jacks for unbalanced
audio input.
b
RGB video output connectors — Connect up to four or eight RGBHV high resolution video displays to these
15-pin HD female connectors.
NOTE: The MVX switchers can also switch RGBS, RGsB, RsGsBs, component/HDTV video, S-video, and composite video.
Some video sources may require adapters.
c
Balanced or unbalanced audio output connectors — Connect up to four or eight balanced or unbalanced stereo audio devices,
such as an audio amplifier or powered speakers, to these 3.5 mm, 5-pole captive screw connectors.
Do not tin the wires!
CAUTION: For unbalanced audio, connect the sleeves to the ground contact. DO NOT connect the sleeves to the negative (-)
contacts.
d
RS-232 connector — Connect a host device, such as a computer or control system, to the switcher
via this 9-pin D connector for remote control of the switcher. See the pinout drawing at right.
NOTES: • The cable used to connect the RS-232 port to a computer or control system
may need to be modified by removing pins or cutting wires. If you encounter
problems while operating under RS-232 control (the switcher may hang up), pins
1, 4, 6, 7, and 8 may need to be disconnected. Either cut the wire to pins 1, 4, and
6 through 8 in a hard-shelled connector or remove pins 1, 4, and 6 through 8 from
a molded plug.
• See MVX Matrix Switchers User Guide for definitions of the SIS commands and
details on how to install and use the control software.
• Using the hardwired IR input on pin 9, you can use a control system with
IR-learning capabilities to operate the switcher just as if you were using an IR 501
remote control. The control system must first "learn" the IR command from an
IR 501, after which it sends the same commands to the MVX via pin 9.
e
AC power connector — Plug a standard IEC power cord into this connector to connect the switcher to a 100 VAC to 240 VAC,
50-60 Hz power source.
4 inputs by 8 outputs
z
8 inputs by 8 outputs
z
5 7
1
3
6 8
2
4
Tip
NO GROUND HERE.
Sleeve(s)
Tip
NO GROUND HERE.
Unbalanced Stereo Output
OUTPUTS
MVX 88 VGA A
5
3 7
1 3
L R L R L 5 R L 7
6
4 8
L 2 R L 4 R L 6 R L 8
OUTPUTS
2 3
Tip
Ring
Sleeve(s)
Tip
Ring
Balanced Stereo Output
R
R
4
1
Pin RS-232 Function
1 — Not used
2 Tx Transmit data
3 Rx Receive data
4 — Not used
5 Gnd Signal ground
6 - 8 — Not used
9 — Hardwired IR
