Paper Roll Size

Bobbin (Ø 38 mm/1.5")
Bobbin (Ø 76 mm/3")
An external paper supply must
be protected from dust, sand,
grit, etc. Any hard particles,
however small, can damage the
printhead.
Intermec EasyCoder 501 XP – Installation & Operation Ed. 4
The following restrictions apply to paper rolls fitted inside the
printer. Only the width and web thickness restrictions apply to
external paper supplies.
Core
Diameters:
Width:
The web must be wound up on the core in such a way that the
printer can pull the end of the web free. Otherwise the thermal
transfer ribbon may be damaged.

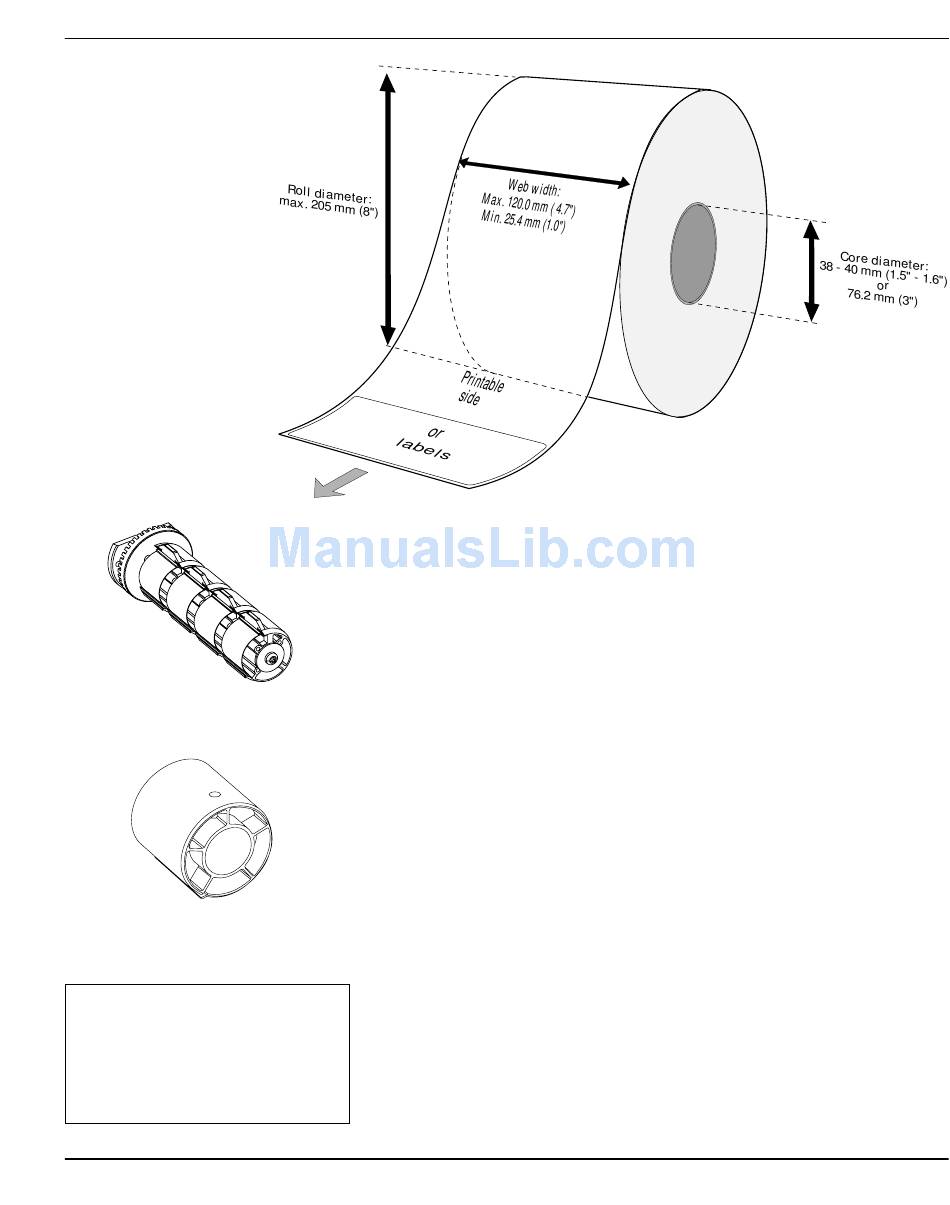

Roll
Max. diameter:
Max. width:
Min. width:
Max. web thickness:
The maximum recommended web thickness is 175µm. A thicker
web may be used, but print quality will be reduced. Web stiffness
is also important and must be balanced against web thickness to
maintain print quality.
Paper rolls fitted inside the printer should be wound with the
printable side facing outwards.
Appendix 2 Media Specifi cations
38 mm (1.5") without adapter
76.2 mm (3") with adapter
Must not protrude outside the web.
205 mm (8.07")
120 mm (4.72")
25.4 mm (1.00")
175 µm (0.007")
