Chapter 5 Paper Load

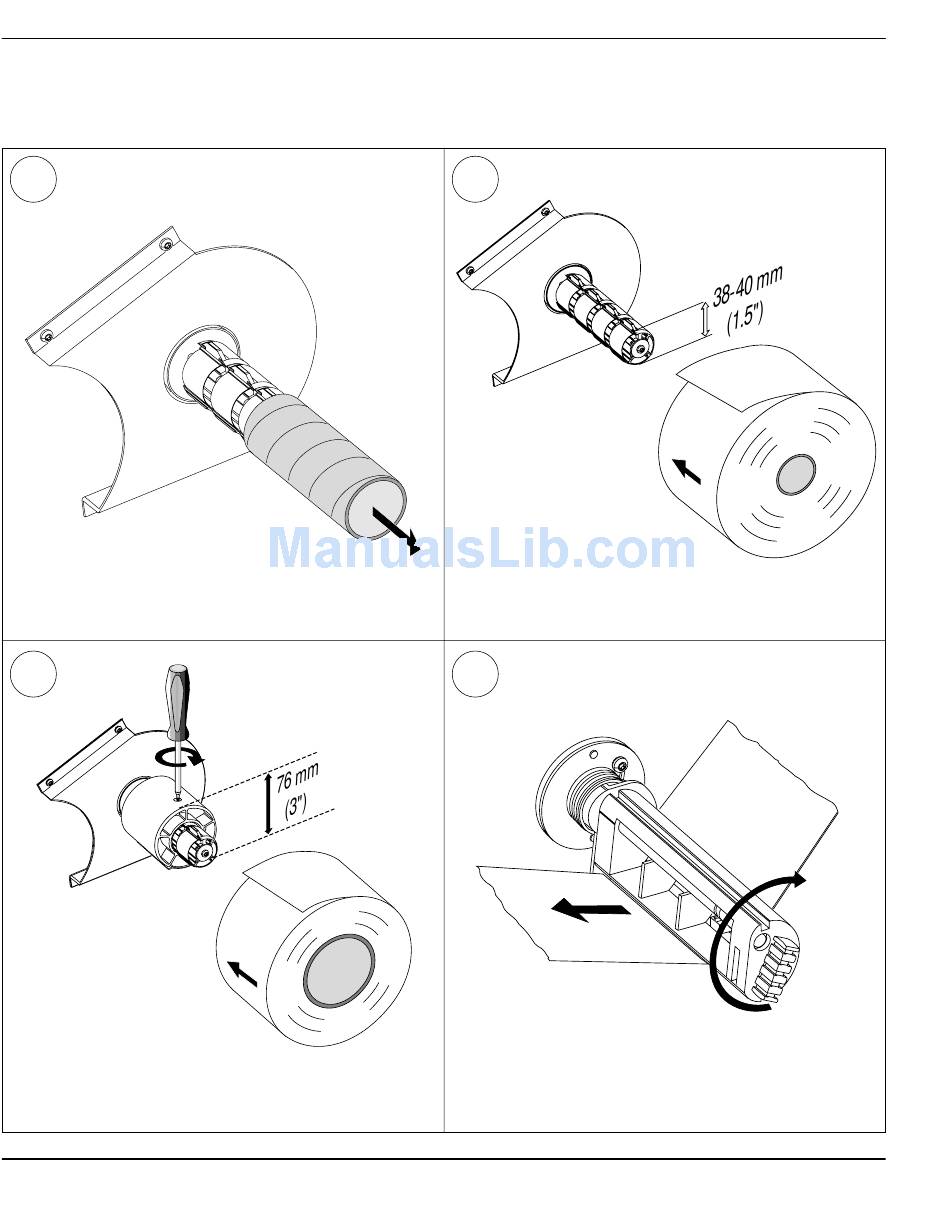

Tear Off, cont'd.
3
Remove the empty paper core, if any.
4b
In case of paper roll with a 76 mm (3") core, fi rst
fi t the adapter on the paper supply spool.
28
4a
Fit a new paper roll on the paper supply spool
and push the roll inwards as far as it will go.
5
Thread the paper underneath the slack absorber
and forward towards the print unit. The slack
absorber can be rotated for better access.
