Chapter 5 Paper Load
Cut Off, cont'd.
3

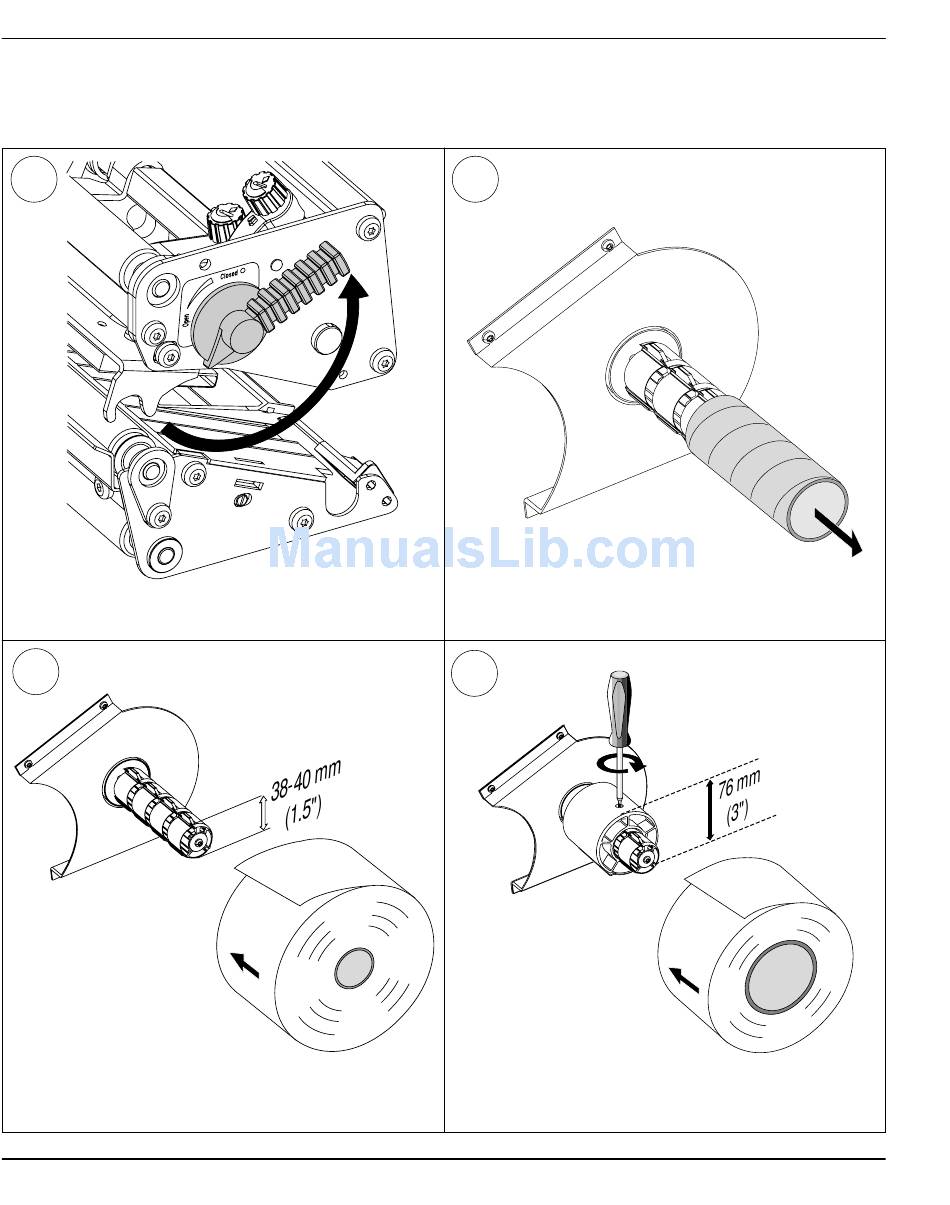

Turn the printhead lift knob to "Open" position.
5a
Fit a new paper roll on the paper supply spool
and push the roll inwards as far as it will go.
32
4
Remove the empty paper core, if any.
5b
In case of paper roll with a 76 mm (3") core, fi rst
fi t the adapter on the paper supply spool.
