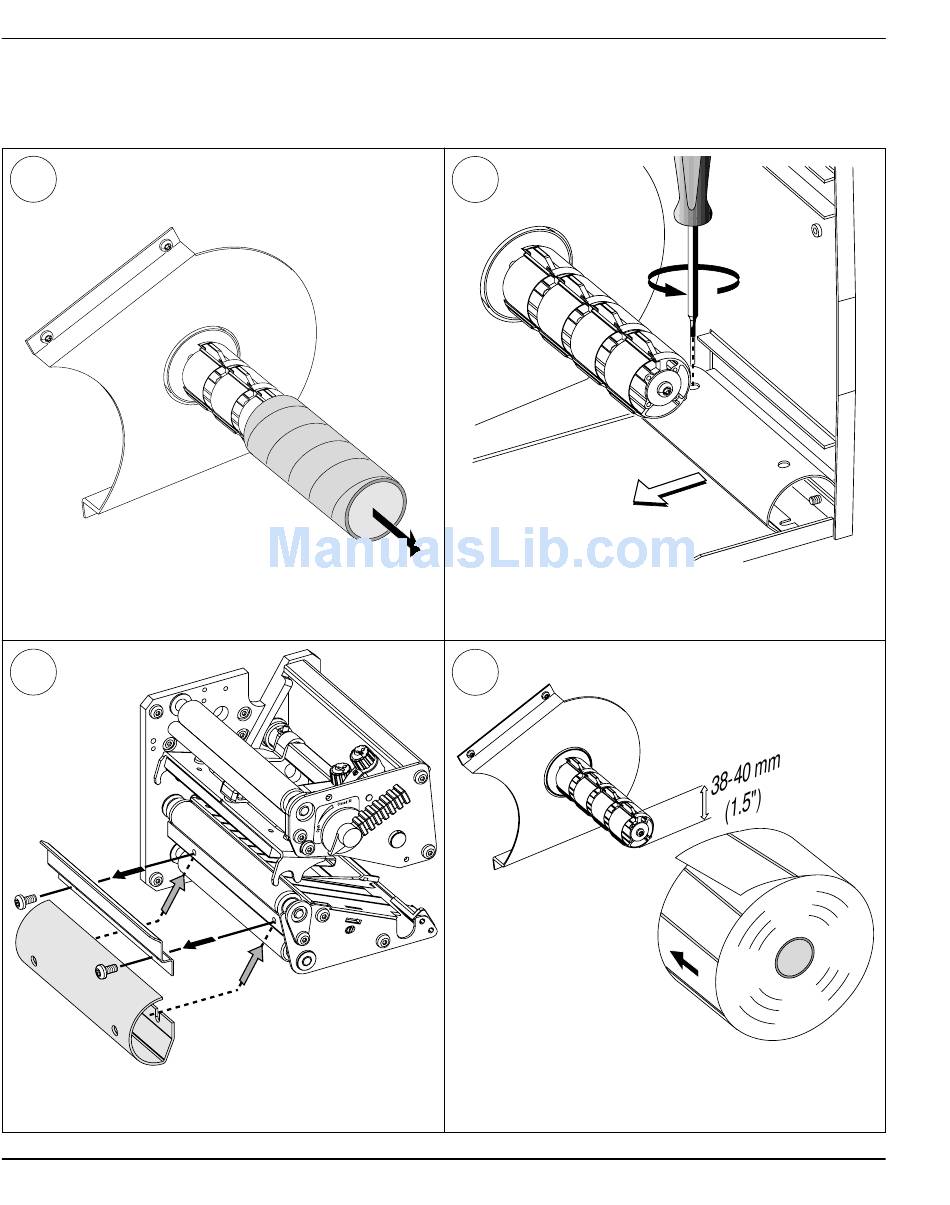

Chapter 5 Paper Load
Internal Rewind, cont'd.
3
Remove the empty paper core, if any.
5
Remove the dispenser/tear off edge from the print
unit and replace it with the rewind guide.
42
4
Loosen the single screw that holds the rewind
6a
Fit a new paper roll on the paper supply spool
and push the roll inwards as far as it will go.
Intermec EasyCoder 501 XP – Installation & Operation Ed. 4
guide.
