Intermec EasyCoder 501 XP Installation & Operation Manual page 45

Chapter 5 Paper Load
Internal Rewind, cont'd.
10
10

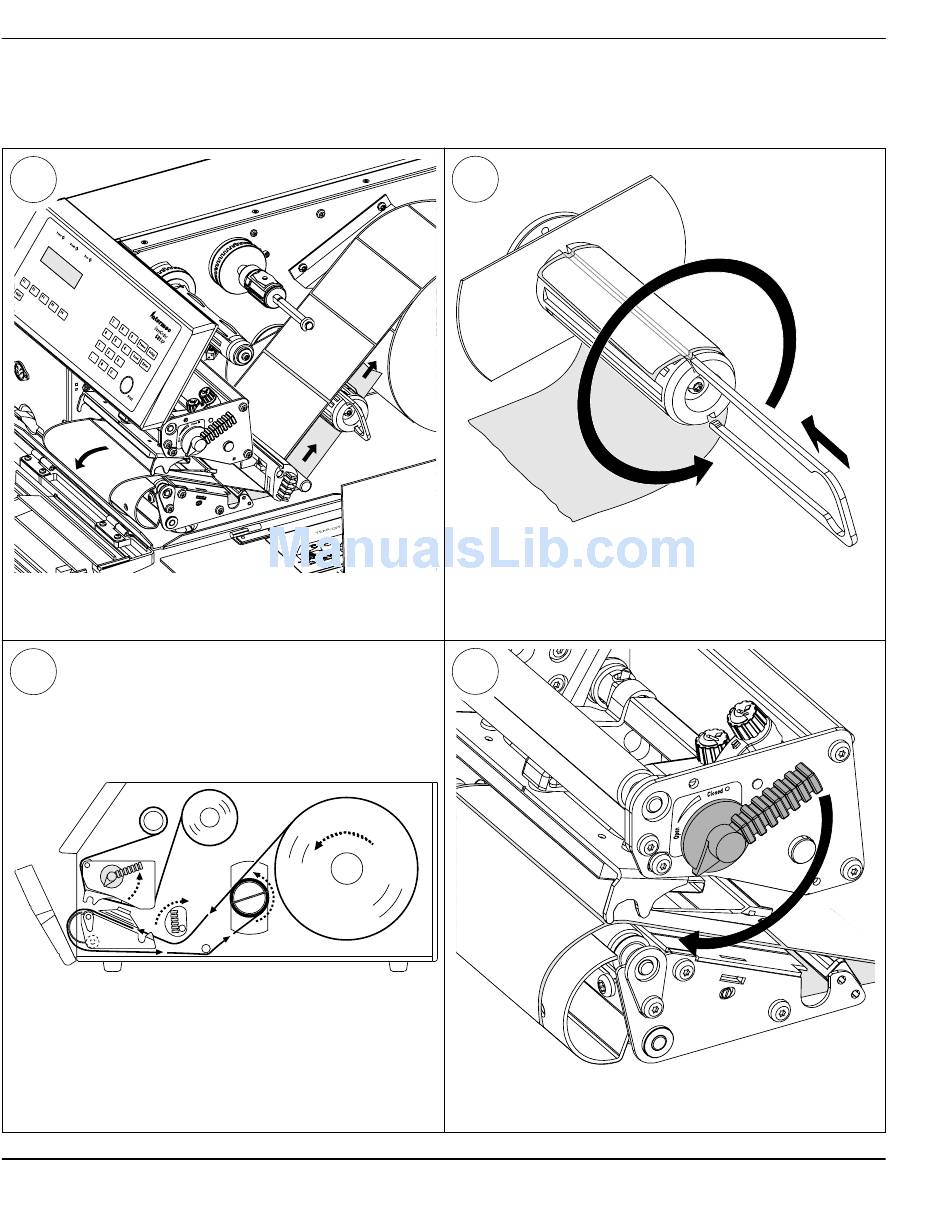

Thread the labels around the rewind guide and
back under the print unit to the rewind spool.
12
This diagram shows the path of the label web.
44
11 9
Wind up the end of the label web on the rewind
spool and secure it with the clip.
13
Turn the printhead lift knob to "Closed" position.
Intermec EasyCoder 501 XP – Installation & Operation Ed. 4
