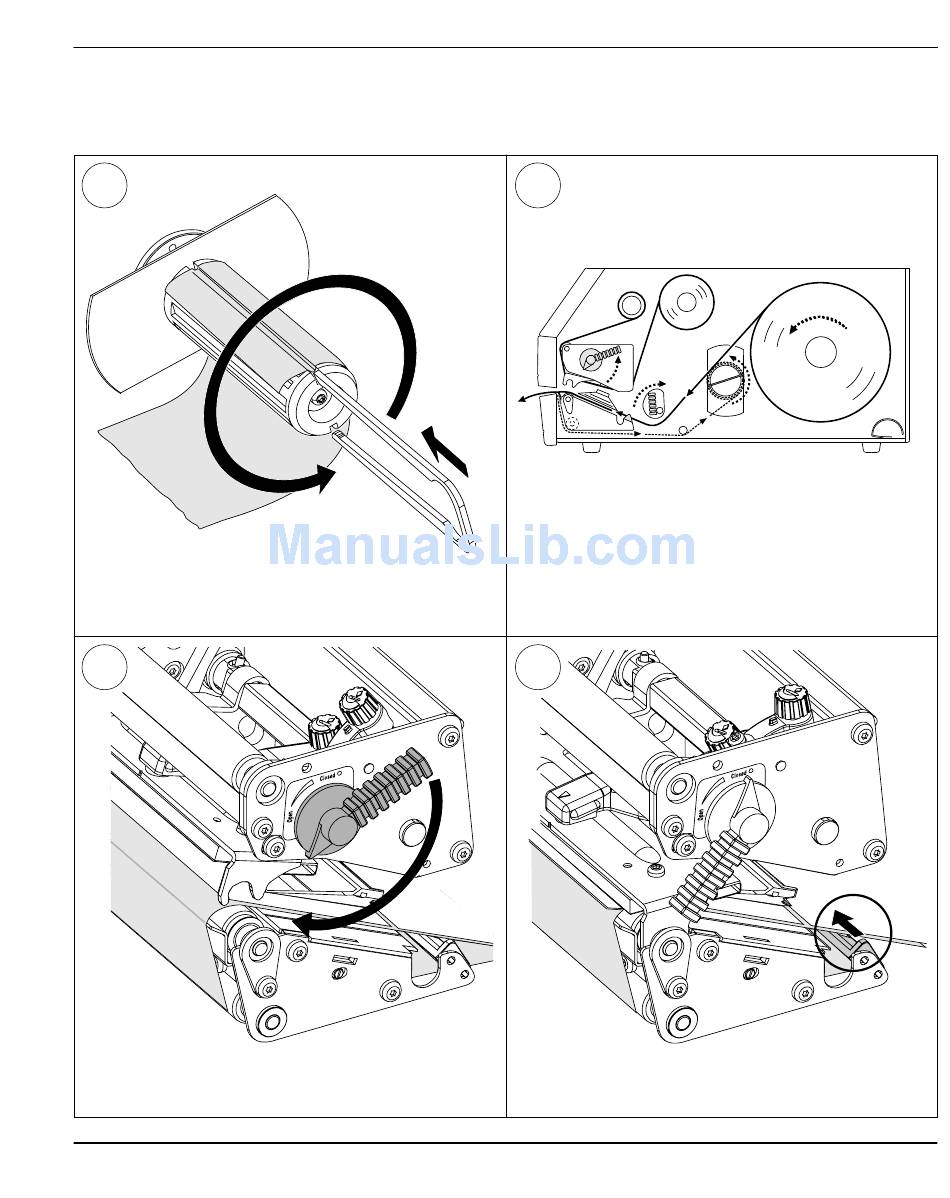

Peel Off, cont'd.
10
Secure the backing paper with the clip (1) and
rotate the spool so the web becomes tight (2).
12
Turn the printhead lift knob to
"Closed" position.
Intermec EasyCoder 501 XP – Installation & Operation Ed. 4
1.
2.
11
This diagram shows the path of the labels and the
backing paper.
13
Adjust the position of the green paper guide so the
paper is guided with a minimum of play.
Chapter 5 Paper Load
39
