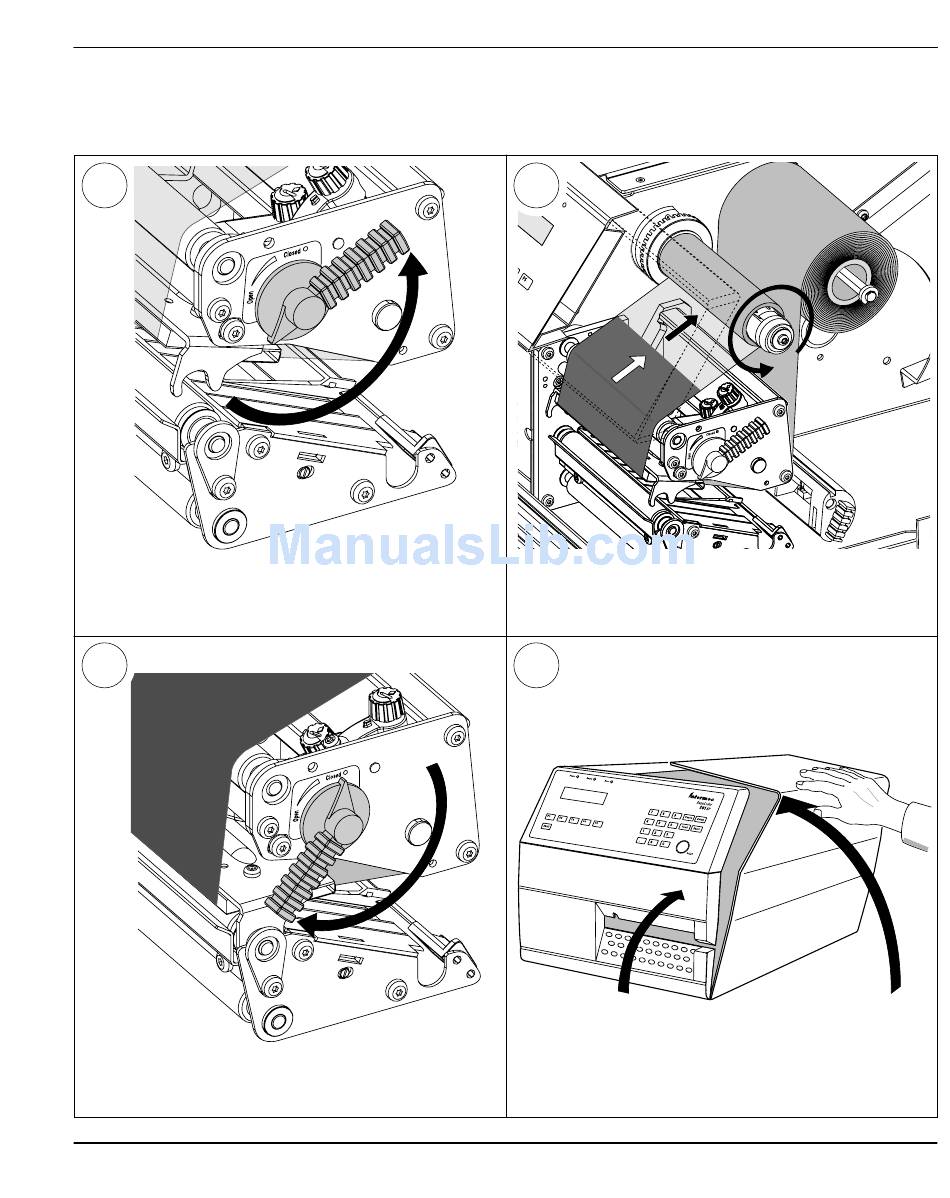

Ribbon Load, cont'd.
9
Turn the printhead lift knob to "Open" position.
11
Turn the printhead lift knob to "Closed" position.
Intermec EasyCoder 501 XP – Installation & Operation Ed. 4
Chapter 6 Thermal Transfer Printing
10
Wind up the ribbon until all of the transparent
leader has passed the printhead and the ribbon
becomes tight.
12
Close the front and right-hand doors.
51
