Chapter 12 Maintenance
Printhead Cleaning, cont'd.
7 8
12
11 1
10 2
30 s.
9 3
8
4
7 5
6

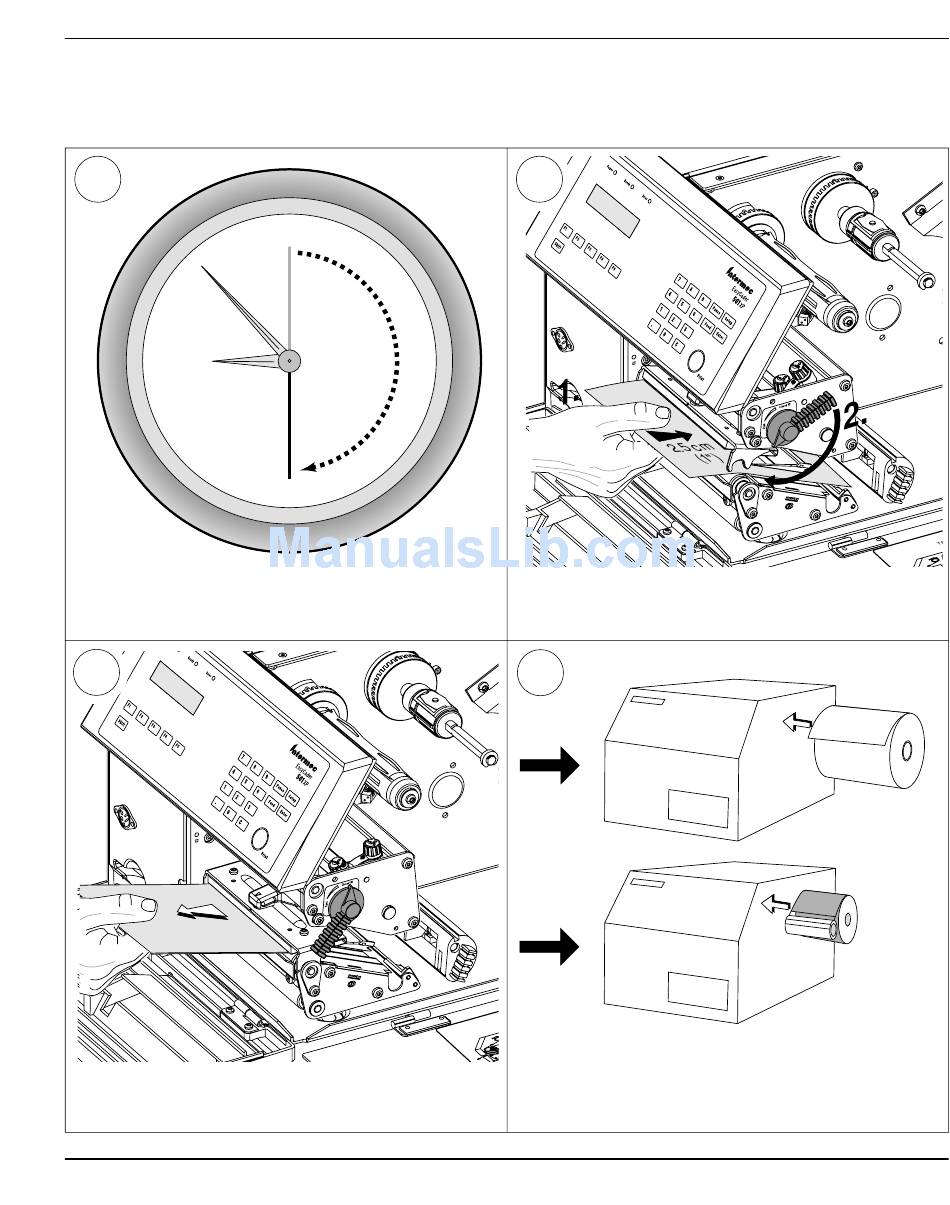

Wait for appox. 30 seconds to allow the cleaning Insert most of the cleaning card under the print-
fl uid to dissolve the residue. head (1) again. Close the printhead (2).
9 10
Pull out the cleaning card. If necessary, repeat Allow the cleaned parts to dry before loading
the process with a new cleaning card. paper and transfer ribbon.
