Intermec EasyCoder 501 XP Installation & Operation Manual page 108

Paper, cont'd.

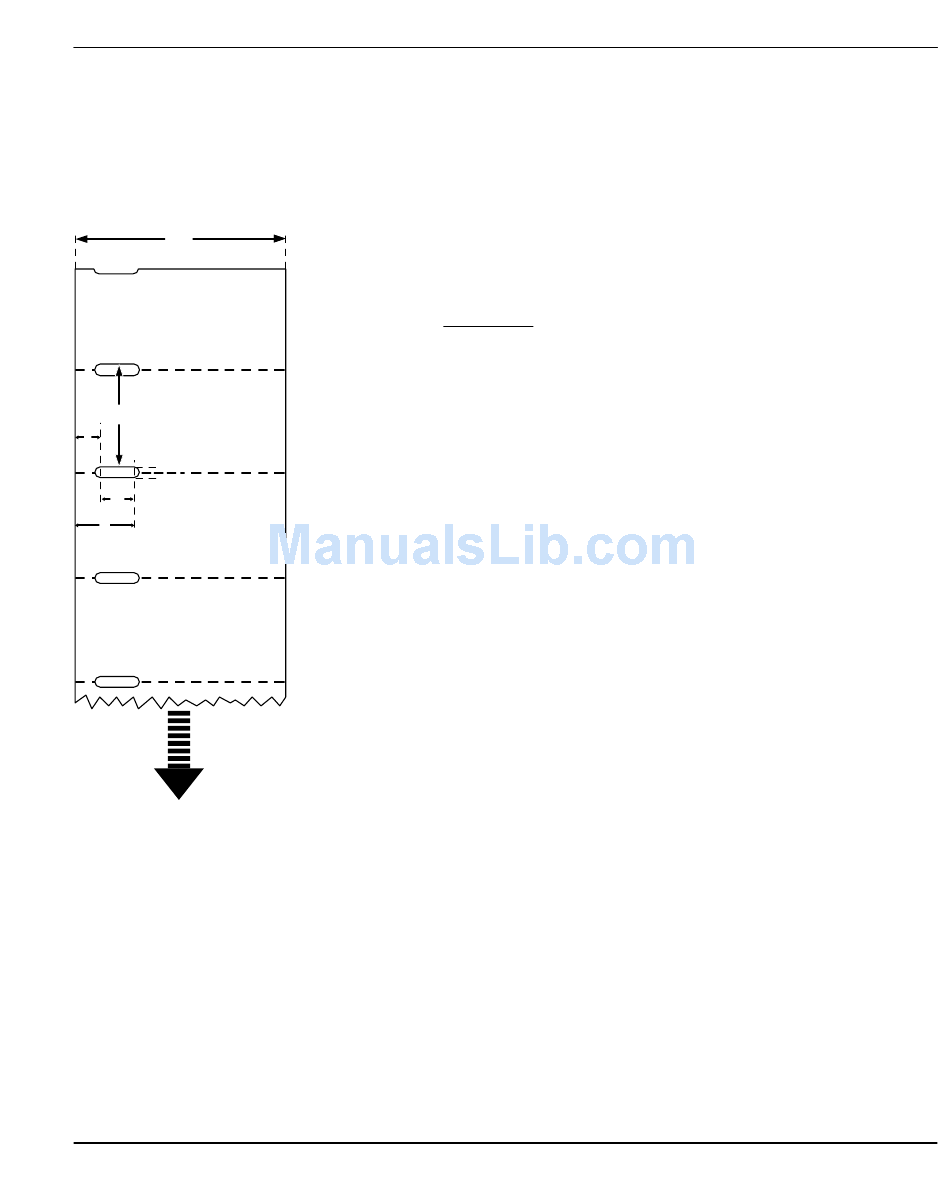

Tickets with Gap
a
b
c
f
d
e
TICKETS & TAGS
PAPER FEED
DIRECTION
Intermec EasyCoder 501 XP – Installation & Operation Ed. 4
⇐ a ⇒ Web Width:
Maximum:
Minimum (standard):
⇐ b ⇒ Copy Length:
Min. length between slots:
Max. length between slots:
Under favourable circumstances, a minimum ticket length down
to 4 mm (0.16") could be used. It requires the sum of the copy
length (b) and the detection slit height (e) to be larger than 7
mm (0.28"), that batch printing is used, and that no pull back of
the paper is performed. Intermec does not guarantee that such
short labels will work, but it is up to the user to test this in his
unique application.
⇐ c ⇒ Detection Slit Start:
The restriction of the minimum detection slit length (d) must be
observed and the slit must not break the inner edge of the web.
⇐ d ⇒ Detection Slit Length:
The length of the detection slit (excluding corner radii) must be:
Minimum:
⇐ e ⇒ Detection Slit End:
Provided the restrictions of the minimum slit length (d) and slit start
(c) are observed, the distance from the inner edge of the web to the
outer end of the slit (excluding corner radii) may be:
Maximum:
⇐ f ⇒ Detection Slit Height:
Maximum:
Recommended:
Minimum:
Media Type Setup:
• Ticket (w gaps)
Do not allow any perforation to break the edge of the web, as this
may cause the web to split, resulting in a paper jam.
Appendix 2 Media Specifi cations
120.0 mm (4.72")
25.4 mm (1.00")
8.0 mm (0.32")
depends on DRAM size
5 mm (0.20")
50 mm (1.97")
21.3 mm (0.83")
1.6 mm (0.06")
1.2 mm (0.05")
107
