Tear Off, cont'd.
6

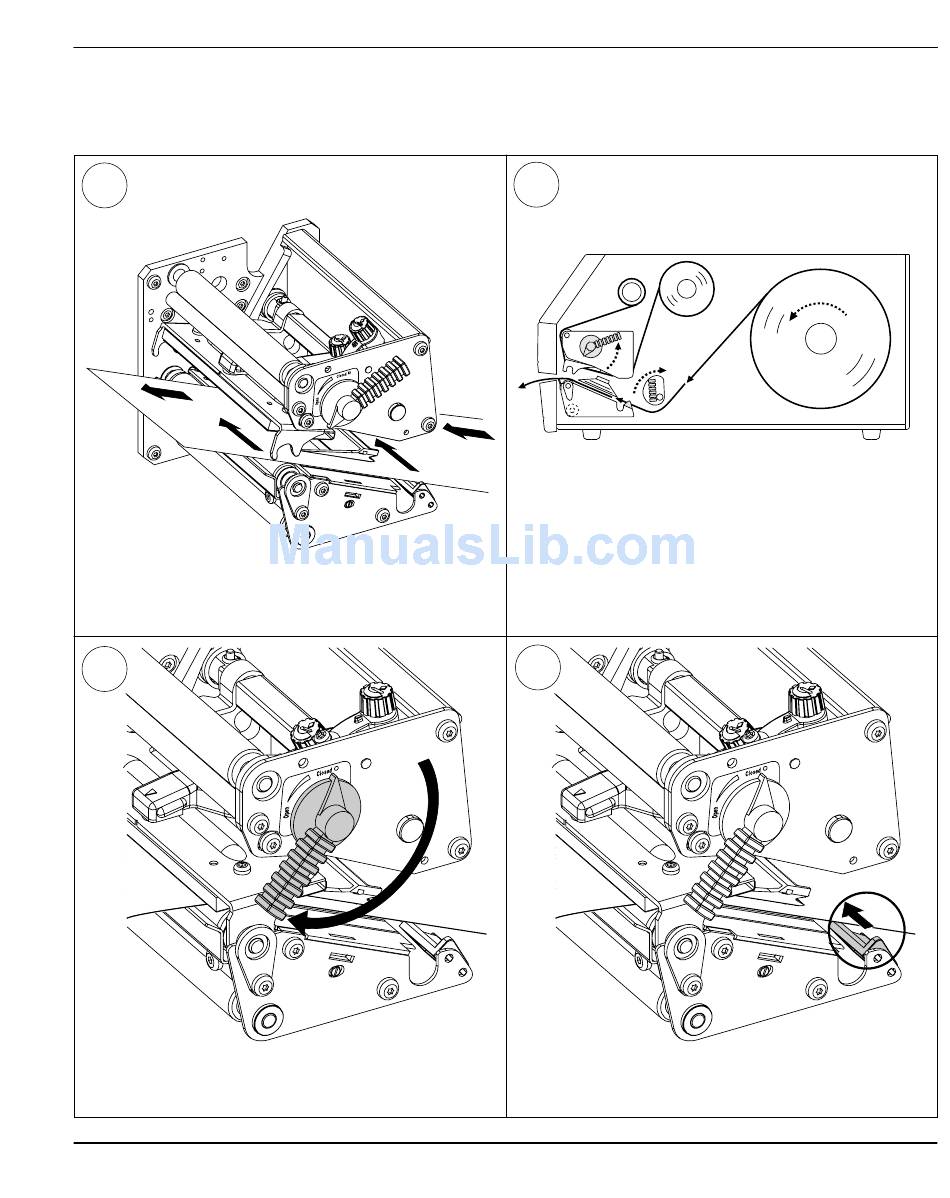

Thread the paper through the print unit and push
it inwards as far as it will go.
8
Turn the printhead lift knob to
"Closed" position.
Intermec EasyCoder 501 XP – Installation & Operation Ed. 4
7
This diagram shows the path of the paper web.
9
Adjust the position of the green paper guide so the
paper is guided with a minimum of play.
Chapter 5 Paper Load
29
