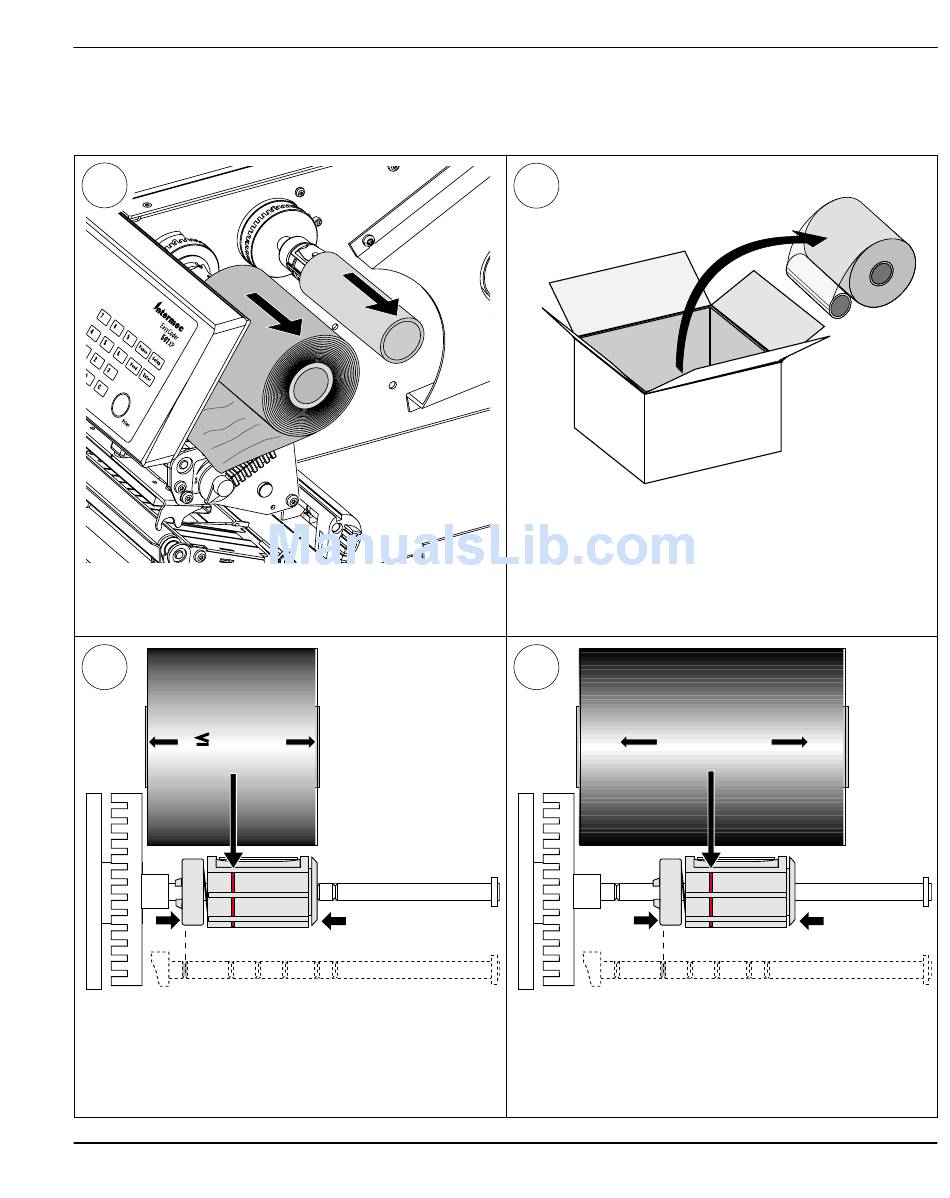

Ribbon Load, cont'd.
3
Remove the used-up ribbon and the empty ribbon
5a
60 mm
(2.3")
#1
In case of ribbon up to 60 mm (2.3") wide, com-
press the bobbin and move it so it snaps into the
fi rst (innermost) groove.
Intermec EasyCoder 501 XP – Installation & Operation Ed. 4
core.
Chapter 6 Thermal Transfer Printing
4
Unpack a roll of original Intermec thermal trans-
fer ribbon.
5b
88 – 90 mm
(3.5")
#2
In case of 88-90 mm (3.5") ribbon width, com-
press the bobbin and move it so it snaps into the
2:nd groove.
