Appendix 3 Interfaces
Industrial
Interface Board
Industrial Interface
114
The EasyCoder 501 XP can optionally be fi tted with an Industrial
Interface Board, that provides the printer with one extra serial
communication port ("uart2:"), which can be confi gured for one
of the following alternatives
RS 232C
RS 422 Non-isolated
RS 422 Isolated
RS 485
This port is identical to "uart2:" on the double serial interface
board.
The Industrial Interface Board also has a female DB-44 connector
with...
8 digital IN ports with optocouplers
8 digital OUT ports with optocouplers
4 OUT ports with relays.
Refer to the installation instructions for the Industrial Interface
Board for further information.

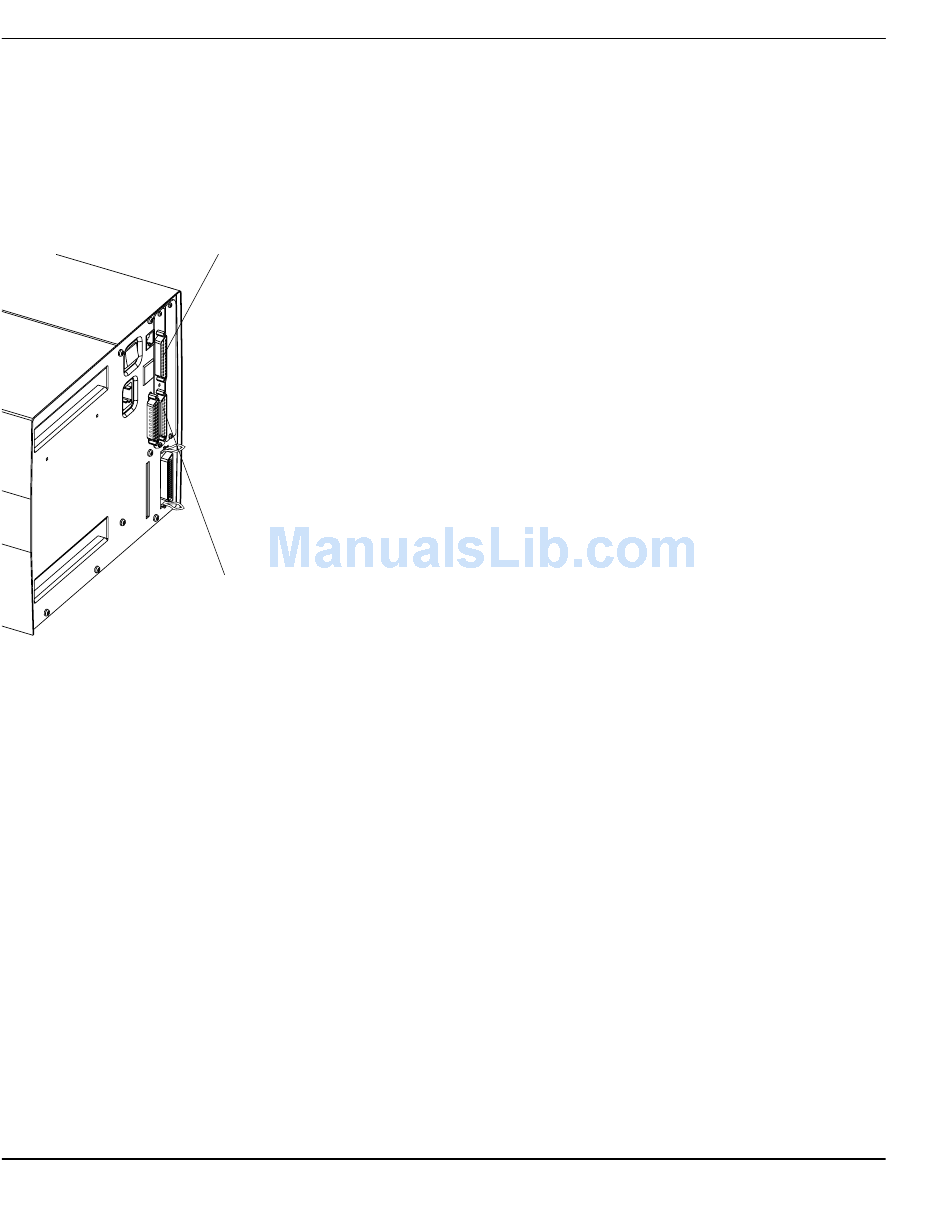

"uart2:"
Intermec EasyCoder 501 XP – Installation & Operation Ed. 4
