HP ProLiant DL170h G6 Server

The HP ProLiant DL4x170h G6 Server is used as a compute node in HP Cluster Platform configurations.
HP ProLiant DL170h G6 Server documentation
For server-specific information, see the server documentation:
•
For a complete list of features and specifications, see the HP ProLiant DL1000 Multi Node Server
QuickSpecs on the HP website
(http://h18004.www1.hp.com/products/quickspecs/13309_na/13309_na.html).
•
For service information, see the HP ProLiant DL170h G6 Server Maintenance and Service Guide on the
HP website
(http://h20000.www2.hp.com/bc/docs/support/SupportManual/c01806355/c01806355.pdf).

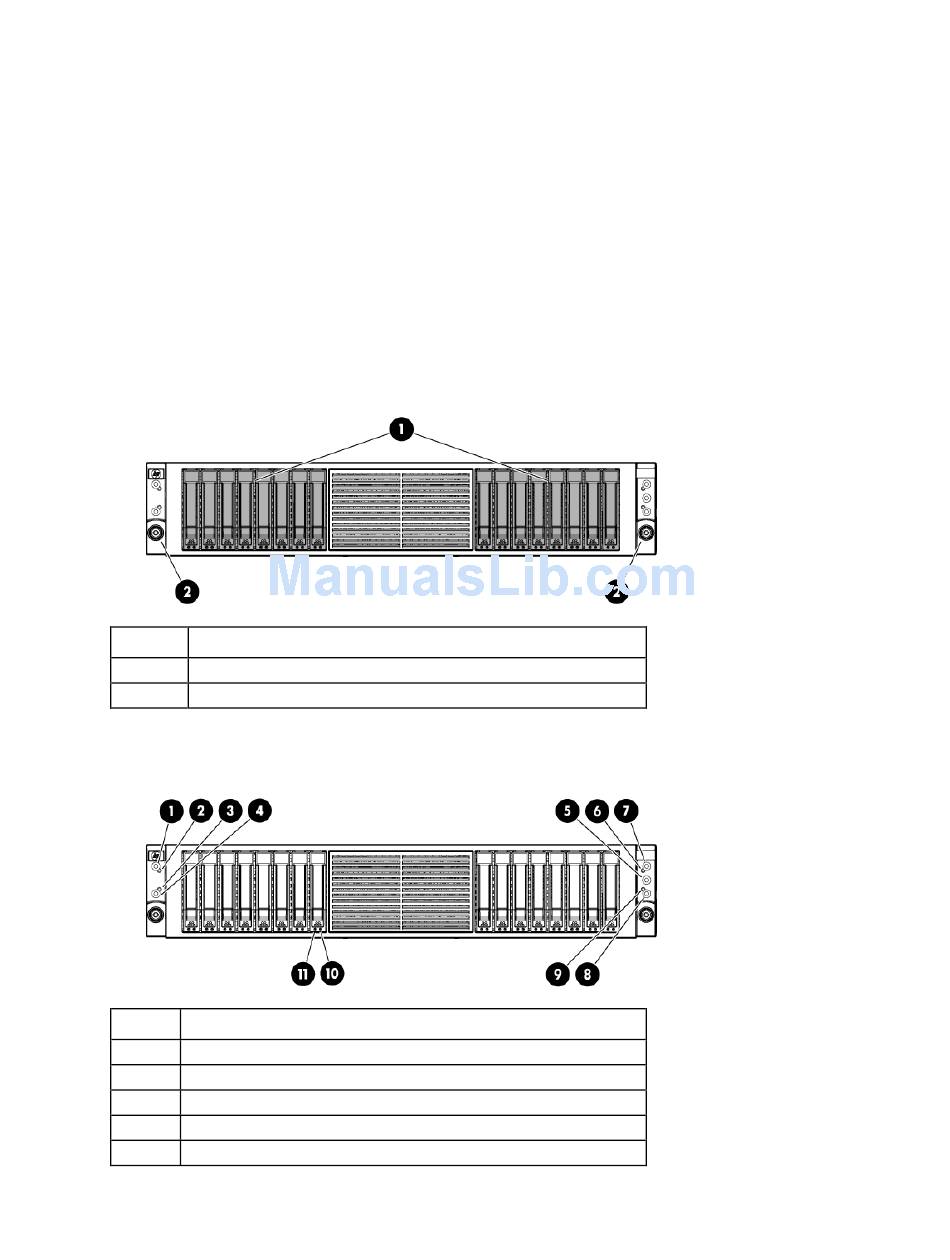

Front panel components (DL170h G6)
Item Description
Hard drive bay (populated)
1
Rack-mounting thumbscrews (2)
2
Front panel LEDs and buttons (DL170h G6)
Item Description
Power button (node 3)
1
Health LED (node 3)
2
Health LED (node 4)
3
Power button (node 4)
4
Chassis UID LED button
5
