HP Cluster Platform Cabling Tables v2010 Overview page 36

•
For a complete list of features and specifications, see the HP ProLiant DL385 Generation 6 (G6)
QuickSpecs on the HP website
(http://h18004.www1.hp.com/products/quickspecs/13012_na/13012_na.html).
•
For installation and service information, see the HP ProLiant DL385 G6 Server User Guide and HP
ProLiant DL385 G6 Server Maintenance and Service Guide on the HP website
(http://www.hp.com/support/manuals).
Under servers, select ProLiant ML/DL and TC series servers, and then select HP ProLiant DL385 G6
Server series.

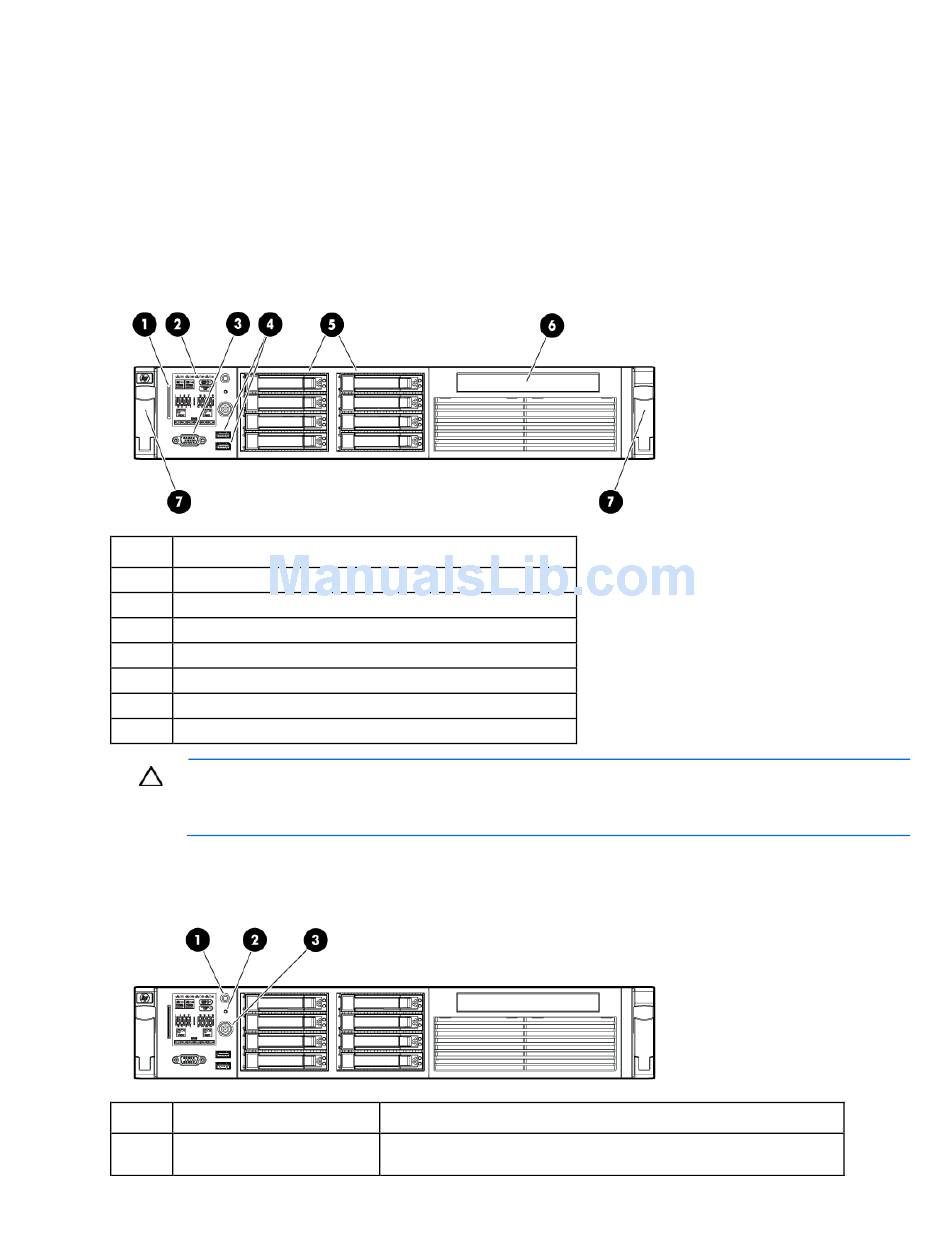

Front panel components (DL385 G6)
Item Description
Serial number label
1
Systems Insight Display
2
Video connector
3
USB connectors (2)
4
Hard drive bays
5
SATA optical drive bay
6
Quick release levers (2)
7
CAUTION:
expansion slot covers, or blanks installed. If the server supports hot-plug components, minimize
the amount of time the access panel is open.
Front panel LEDs and buttons (DL385 G6)
Item Description
UID LED button
1
For proper cooling do not operate the server without the access panel, baffles,
Status
Blue = Activated
Flashing blue = System being remotely managed
HP ProLiant servers (rack) 36
