Item Description
Health LED (node 4)
8
Power button (node 4)
9
•

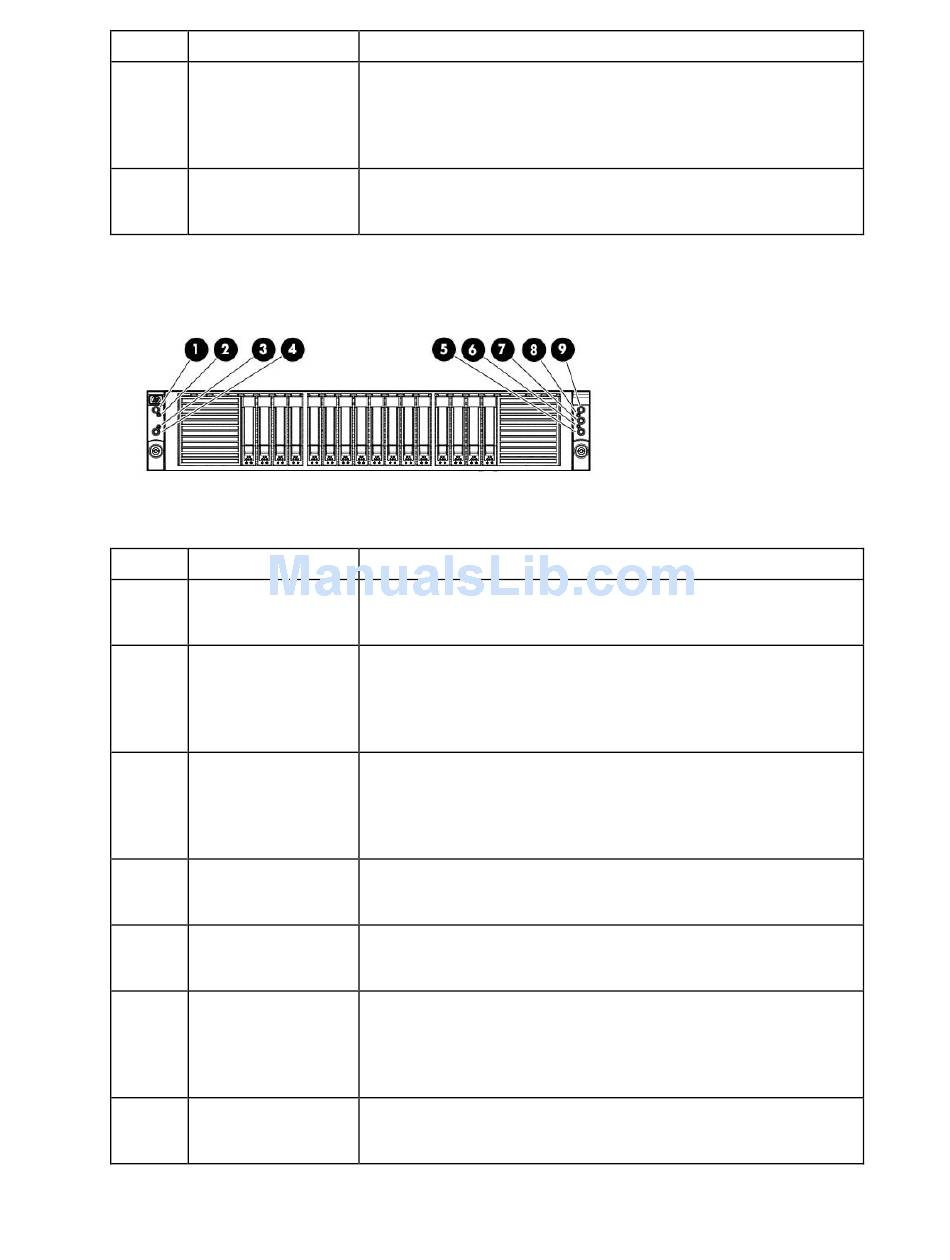

Four-node server with 16-bay SFF hard drive cage
Item Description
Power button (node 2)
1
Health LED (node 2)
2
Health LED (node 1)
3
Power button (node 1)
4
Power button (node 3)
5
Health LED (node 3)
6
Chassis UID LED button Blue = Identification is activated.
7
Status
Green = System health is normal.
Flashing amber = System health is degraded (non-critical). For more
information, see SEL.
Flashing red = System health is critical. For more information, see SEL.
Off = System is off and health is normal.
Green—Normal (system on)
Amber—The node is off or in hibernation with AC power.
Off—Off without AC power
Status
Green—Normal (system on)
Amber—The node is off or in hibernation with AC power.
Off—Off without AC power
Green = System health is normal.
Flashing amber = System health is degraded (non-critical). For more
information, see SEL.
Flashing red = System health is critical. For more information, see SEL.
Off = System is off and health is normal.
Green = System health is normal.
Flashing amber = System health is degraded (non-critical). For more
information, see SEL.
Flashing red = System health is critical. For more information, see SEL.
Off = System is off and health is normal.
Green—Normal (system on)
Amber—The node is off or in hibernation with AC power.
Off—Off without AC power
Green—Normal (system on)
Amber—The node is off or in hibernation with AC power.
Off—Off without AC power
Green = System health is normal.
Flashing amber = System health is degraded (non-critical). For more
information, see SEL.
Flashing red = System health is critical. For more information, see SEL.
Off = System is off and health is normal.
Flashing blue = System is being managed remotely.
Off = Off
