Item
Description
Quick release levers (2)
1
Systems Insight Display
2
Hard drive bays (8)
3
Optional hard drive bays (8)
4
Video connector
5
USB connectors (2)
6
•
LFF hard drive model
Item
Description
Quick release levers (2)
1
Systems Insight Display
2
Hard drive bays (6)
3
USB connectors (2)
4
Video connector
5

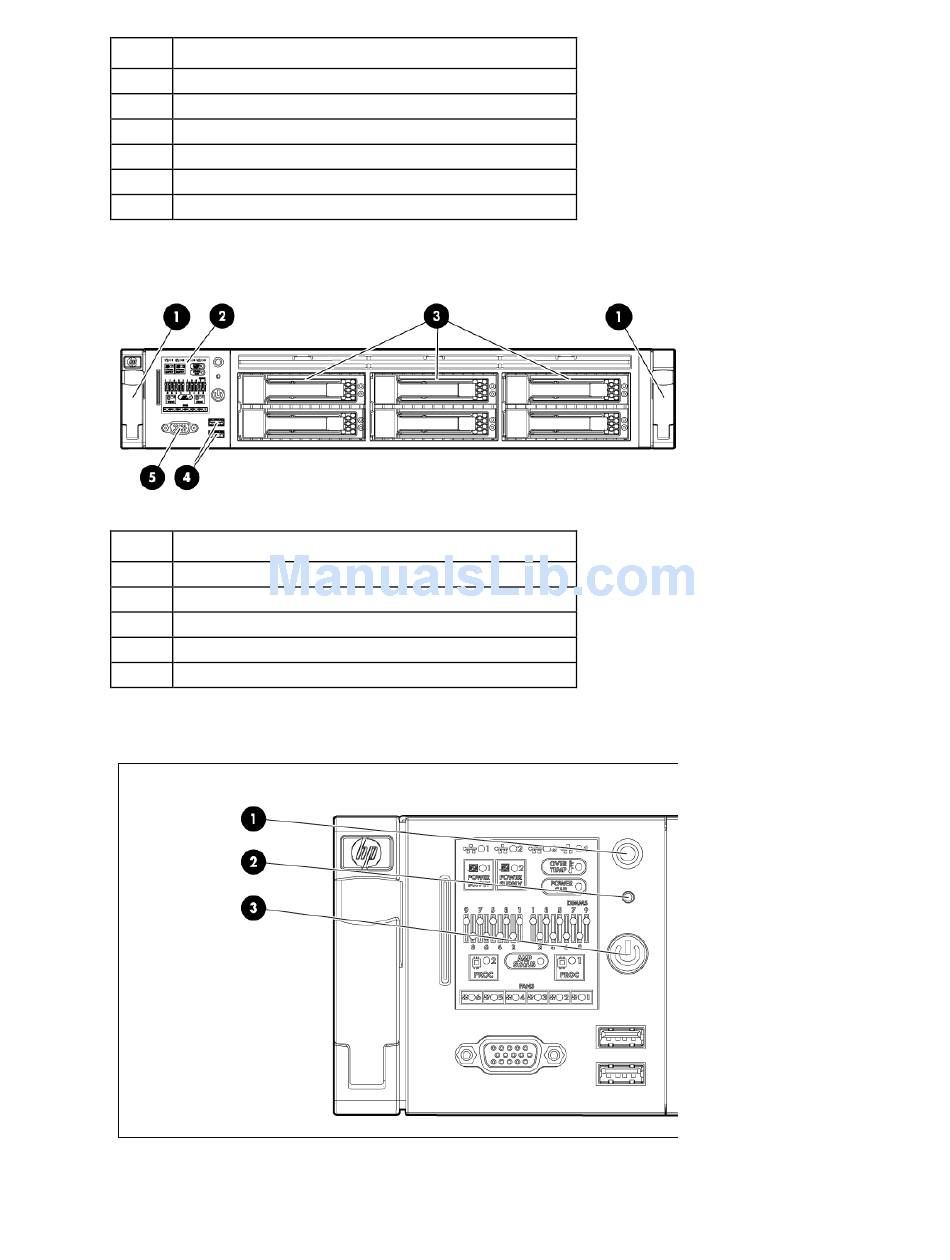

Front panel LEDs and buttons (DL380 G6)
HP ProLiant servers (rack) 20
