Power supply 3
11
Fan 5
12
Fan 6
13

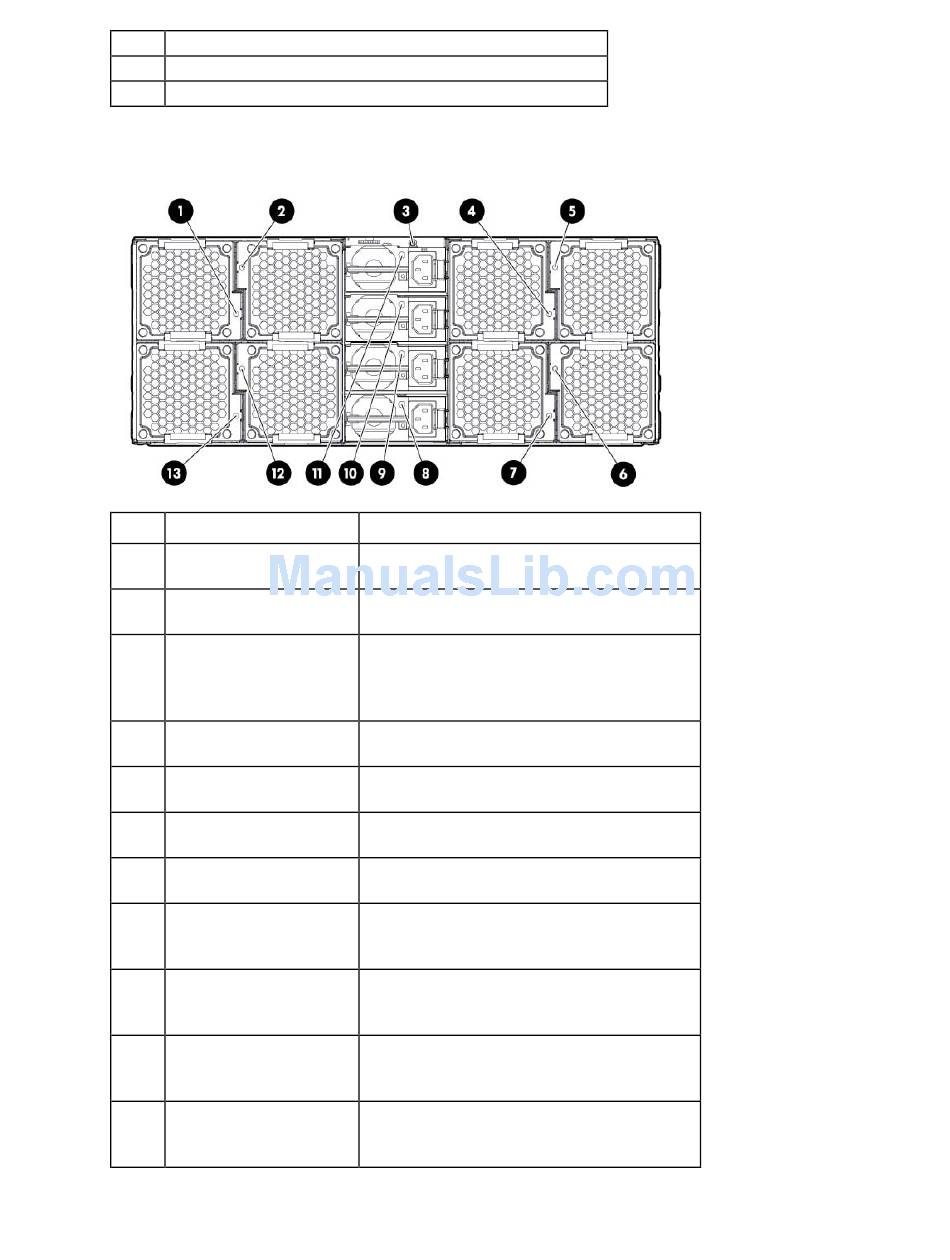

Rear panel LEDs and buttons (SL390s G7)
Item Description
Fan 8 power LED
1
Fan 7 power LED
2
UID LED button
3
Fan 4 power LED
4
Fan 3 power LED
5
Fan 1 power LED
6
Fan 2 power LED
7
Power supply 1 power LED Green—Normal
8
Power supply 2 power LED Green—Normal
9
Power supply 3 power LED Green—Normal
10
Power supply 4 power LED Green—Normal
11
Status
Off—Normal
Amber—Fan has failed.
Off—Normal
Amber—Fan has failed.
Blue—Activated
Flashing blue—System is being remotely
managed.
Off—Deactivated
Off—Normal
Amber—Fan has failed.
Off—Normal
Amber—Fan has failed.
Off—Normal
Amber—Fan has failed.
Off—Normal
Amber—Fan has failed.
Off—No AC power
Amber—Power supply has failed.
Off—No AC power
Amber—Power supply has failed.
Off—No AC power
Amber—Power supply has failed.
Off—No AC power
Amber—Power supply has failed.
HP ProLiant servers (scalable) 59
