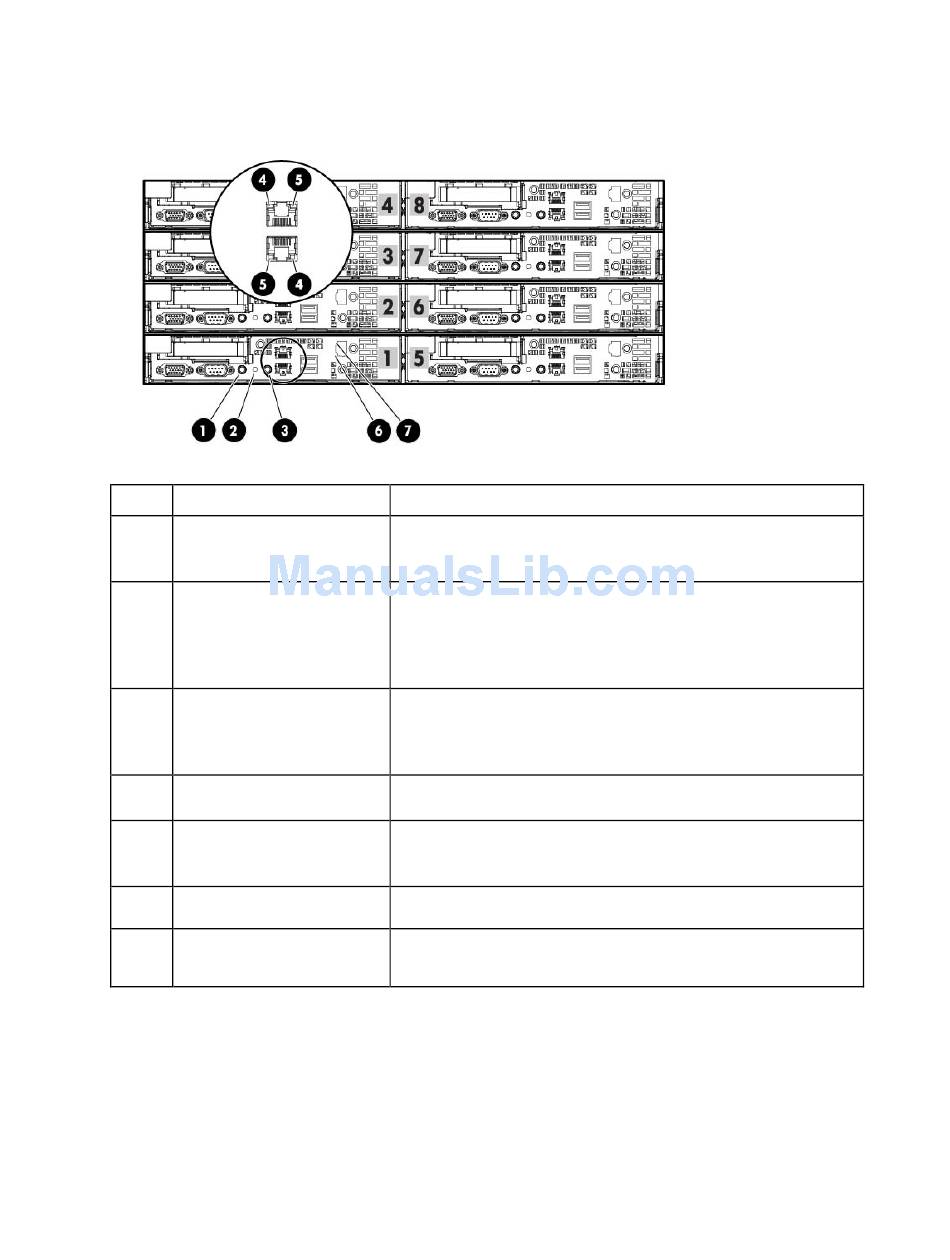

Front panel LEDs and buttons (SL170s G6)
The table below describes LEDs and buttons for one server only. Each server contains the same LEDs and
buttons in the same orientation.
Item Description
UID LED/button
1
Health LED
2
Power button/LED
3
NIC activity LED
4
NIC speed LED
5
Management connector
6
activity LED (iLO)
Management connector link
7
LED (iLO)
Status
Blue = Identification
Flashing blue = The system is being remotely managed.
Off = Deactivated
Red = Critical system failure detected
Amber = The system is degraded.
Green = The system is powered on, and no failure is detected.
Off = The system is off, and no failure was detected prior to system
power down.
Green = Normal
Amber = The server is powered off or in a hibernation state with AC
power.
Red = Critical error. For more information, see SEL.
Flashing green = Network data activity exists.
Off = No network data activity exists, or no network connection exists.
Green = The LAN connection is using a GbE link.
Amber = The LAN connection is using a 10 Mbps/100 Mbps link.
Off = No LAN connection exists.
Flashing amber = LAN is active.
Green = Linking at 100 Mbps speed
Off = No connection exists or linking at 10 Mbps speed.
