Item Description
Optical drive (optional)
1
Serial label pull tab
2
USB connectors (2)
3
Rack mounting thumbscrews (2)
4
Hard drive bays (4)
5

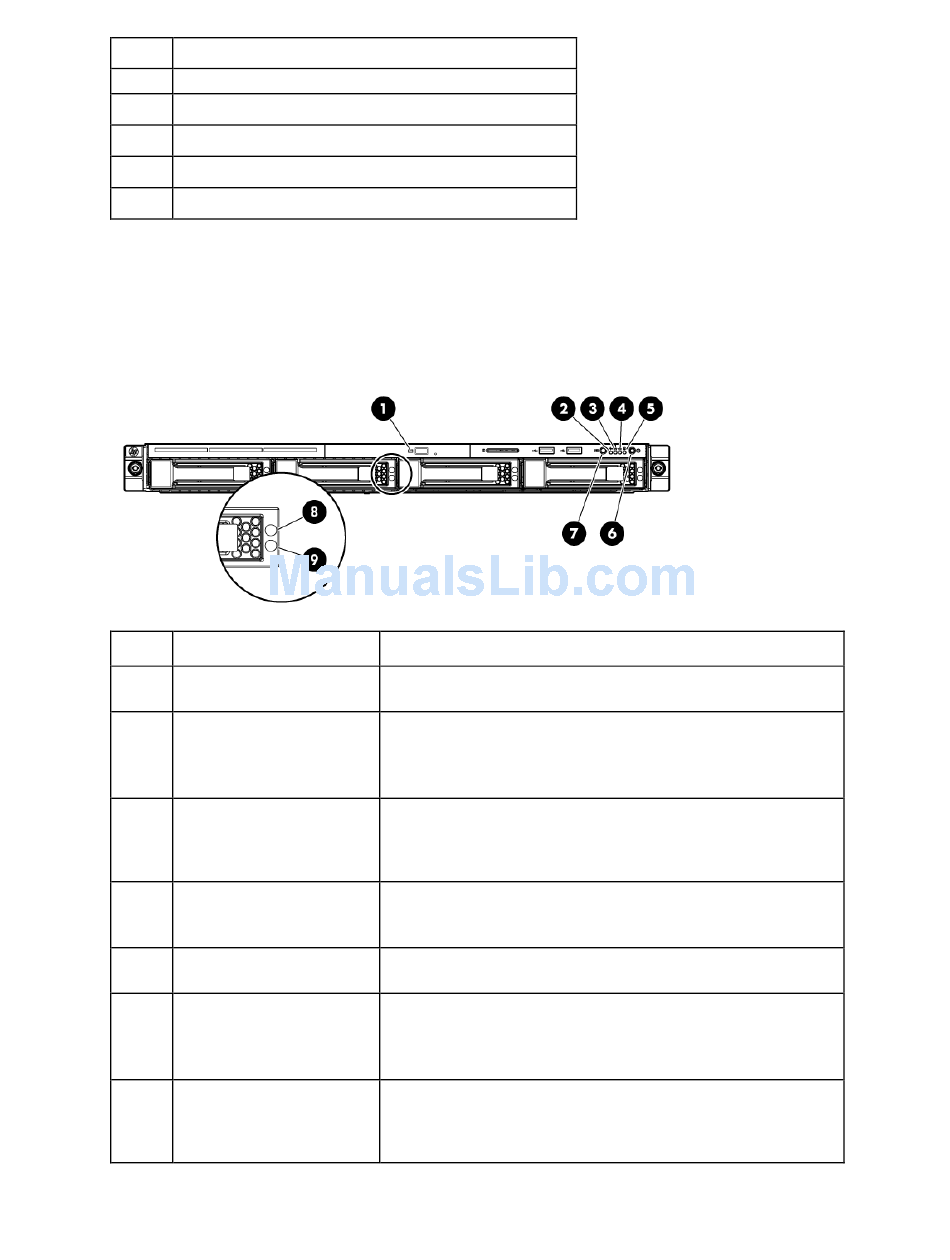

Front panel LEDs and buttons (DL160 G6)
This figure shows the LFF hard drive model. The server is also available in a two-drive LFF model, a four-drive
non-hot-plug LFF model, and an 8-drive SFF model. Each model contains the same components in the same
or similar orientations.
Item Description
Optical drive LED
1
Health LED
2
NIC 1 activity LED
3
NIC 2 activity LED
4
Hard drive activity LED
5
Power button/LED
6
UID button/LED
7
Status
Flashing green = Drive is in use.
Off = Drive is not active.
Green = System health is normal.
Amber = System health is degraded (non-critical).
Red = System health is critical.
Off = System health is normal (when in standby mode).
Green = Network link exists.
Flashing green = Network link and activity exist.
Off = No network link exists.
Green = Network link exists.
Flashing green = Network link and activity exist.
Off = No network link exists.
Flashing green = Drive activity exists.
Off = No drive activity exists.
Green = Normal (system on)
Amber = System is in standby, but power is still applied.
Off = Power cord is not attached, or the power supply has failed.
There is no power to the system.
Blue = Identification is activated.
Flashing blue = System is being managed remotely.
Off = Identification is deactivated.
