For a complete list of features and specifications, see the HP ProLiant BL460c G6 Server Blade
QuickSpecs on the HP website
(http://h18004.www1.hp.com/products/quickspecs/13238_na/13238_na.html).
•
For installation and service information, see the HP ProLiant BL460c Server Blade User Guide and the
HP ProLiant BL460c G6 Server Blade Maintenance and Service Guide on the HP website
(http://www.hp.com/support/manuals).
Under BladeSystem, select BladeSystem Server Blades, and then select HP ProLiant BL460c G6 Server
series.

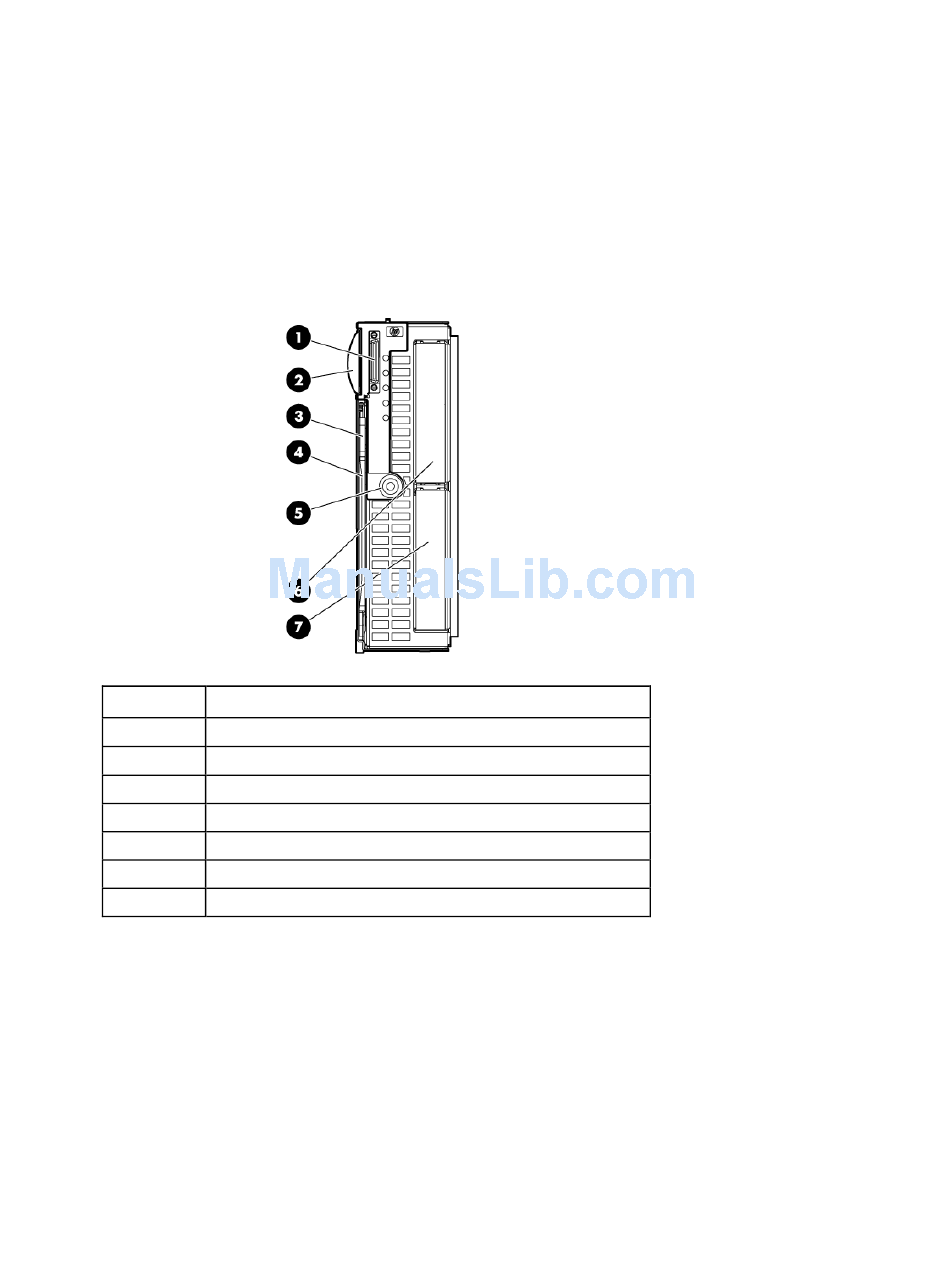

Front panel components (BL460c G6)
Item
1
2
3
4
5
6
7
*The SUV connector and the HP c-Class Blade SUV Cable are for some server configuration and diagnostic procedures.
Description
SUV connector*
Serial label pull tab
Release button
Server blade release lever
Power On/Standby button
Hard drive bay 1
Hard drive bay 2
HP ProLiant BL c-Class Server Blades 77
