HP Cluster Platform Cabling Tables v2010 Overview page 30

Item Description
Mouse connector (green)
3
NIC 2 connector
4
Access panel thumbscrew (captive)
5
Serial connector (teal)
6
Low-profile/half-length expansion slot
7
Full-height/full-length expansion slot
8
T-10/T-15 Torx screwdriver
9
PCI cage thumbscrew
10
Video connector
11
HP Lights-Out 100i Management LAN connector
12
USB connectors (2)
13
NIC 1 connector
14

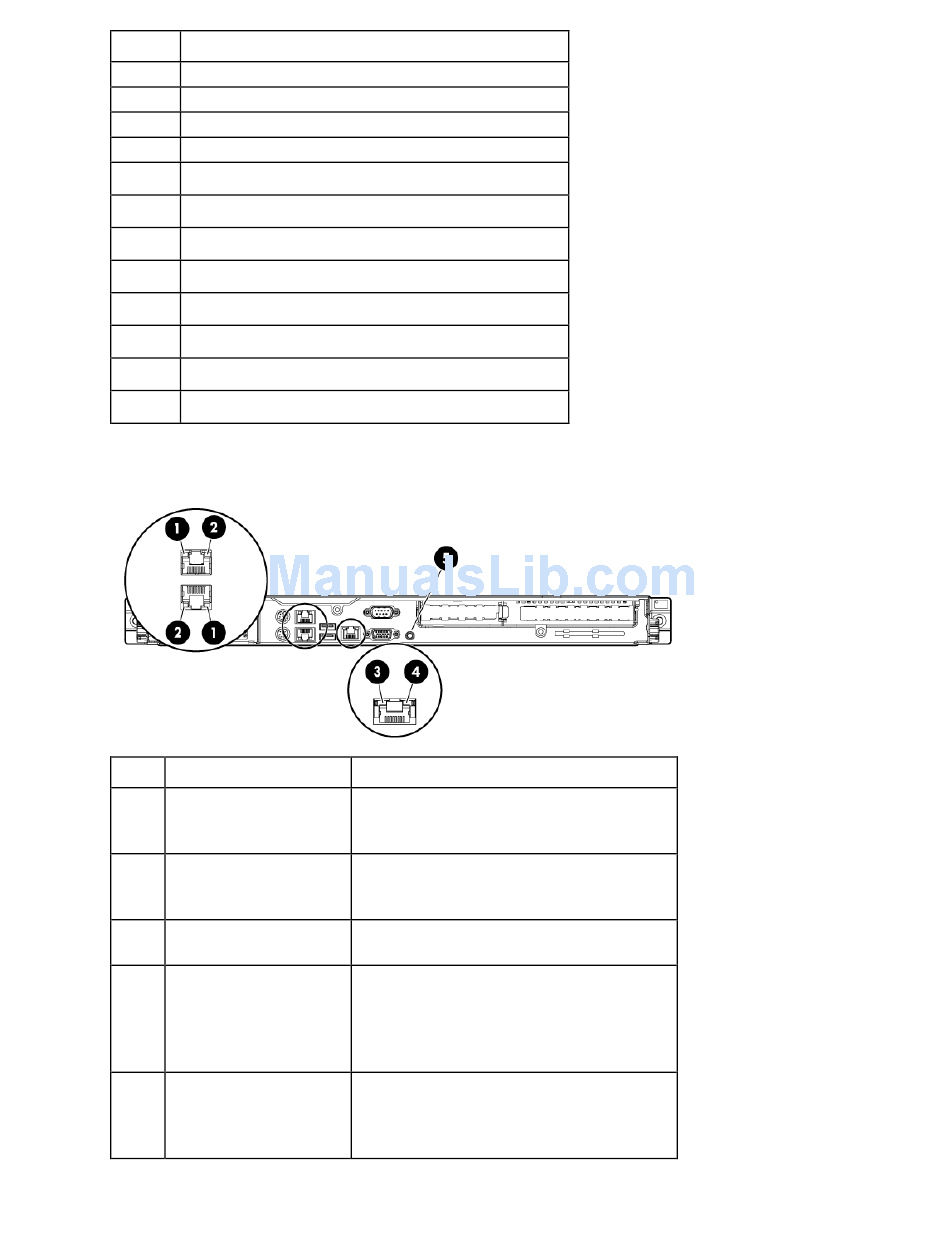

Rear panel LEDs and buttons (DL165 G6)
Item Description
NIC activity LED
1
NIC link LED
2
LAN activity LED
3
LAN speed LED
4
UID button/LED
5
Status
Green = Activity exists.
Flashing green = Activity exists.
Off = No activity exists.
Green = 100 Mbps speed link exists.
Off = No connection or 10 Mbps speed link
exists.
Flashing green = Activity exists.
Off = No activity exists, or no connection exists.
Green = The LAN connection exists and is using
a GbE link.
Amber = The LAN connection exists and is using
a 10 Mbps/100 Mbps link.
Off = No connection exists.
Blue = Identification is activated.
Flashing blue = System is being managed
remotely.
Off = Identification is deactivated.
HP ProLiant servers (rack) 30
