Item Description
Management connector
2
activity LED (iLO)
Management connector link
3
LED (iLO)
NIC activity LED
4
NIC speed LED
5
Power button/LED
6
Health LED
7

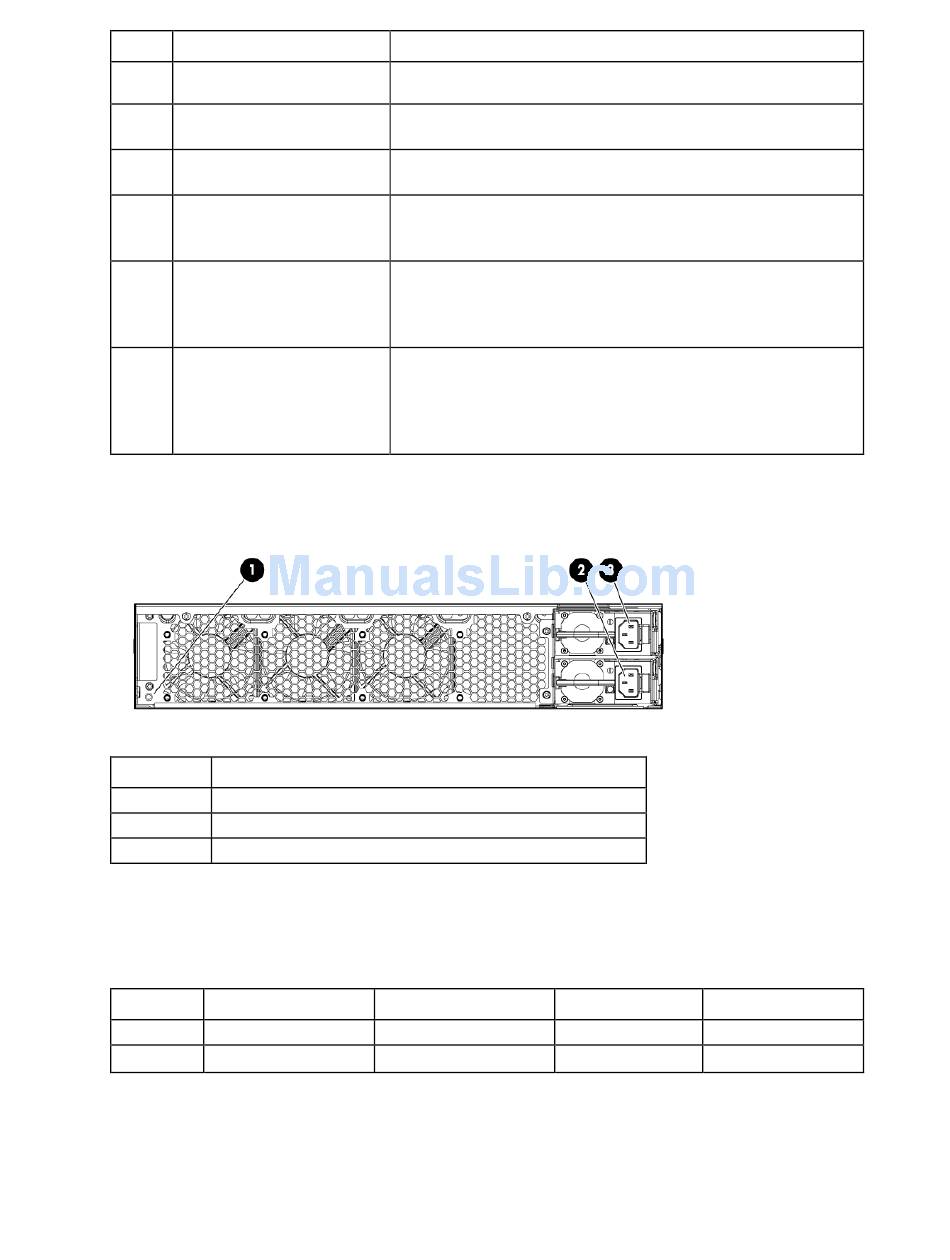

Rear panel components, LEDs, and buttons (SL165z G7)
Item Description
UID LED/button
1
Power supply cable connector 1
2
Power supply cable connector 2
3
PCI expansion slot definitions (SL165z G7)
The HP ProLiant SL165z G6 Server has one x16 PCIe slot on the system board that supports an optional PCIe
assembly. The PCIe assembly has two low-profile PCIe2 expansion slots.
Slot Type
PCIe2
1
PCIe2
2
Always install an InfiniBand PCIe HCA in the low-profile x16 PCIe2 expansion slot on this server.
Status
Flashing amber = LAN is active.
Green = Linking at 100 Mbps speed
Off = No connection exists, or linking at 10 Mbps speed.
Flashing green = Network data activity exists.
Off = No network data activity exists, or no network connection exists.
Green = The LAN connection is using a GbE link.
Amber = The LAN connection is using a 10 Mbps/100 Mbps link.
Off = No LAN connection exists.
Green = Normal.
Amber = The server is powered off, or in a hibernation state with AC
power.
Red = Critical error
Red = Critical system failure detected.
Amber = The system is degraded.
Green = The system is powered on, and no failure is detected.
Off = The system is off, and no failure was detected prior to system
power down.
Length
Half (low profile)
Half (low profile)
Connector Interconnect
x16 x16
x8 x4
