HP Cluster Platform Cabling Tables v2010 Overview page 14

Item Description
SFF hard drive bays, populated (24)
1
Rack-mounting thumbscrews (2)
2

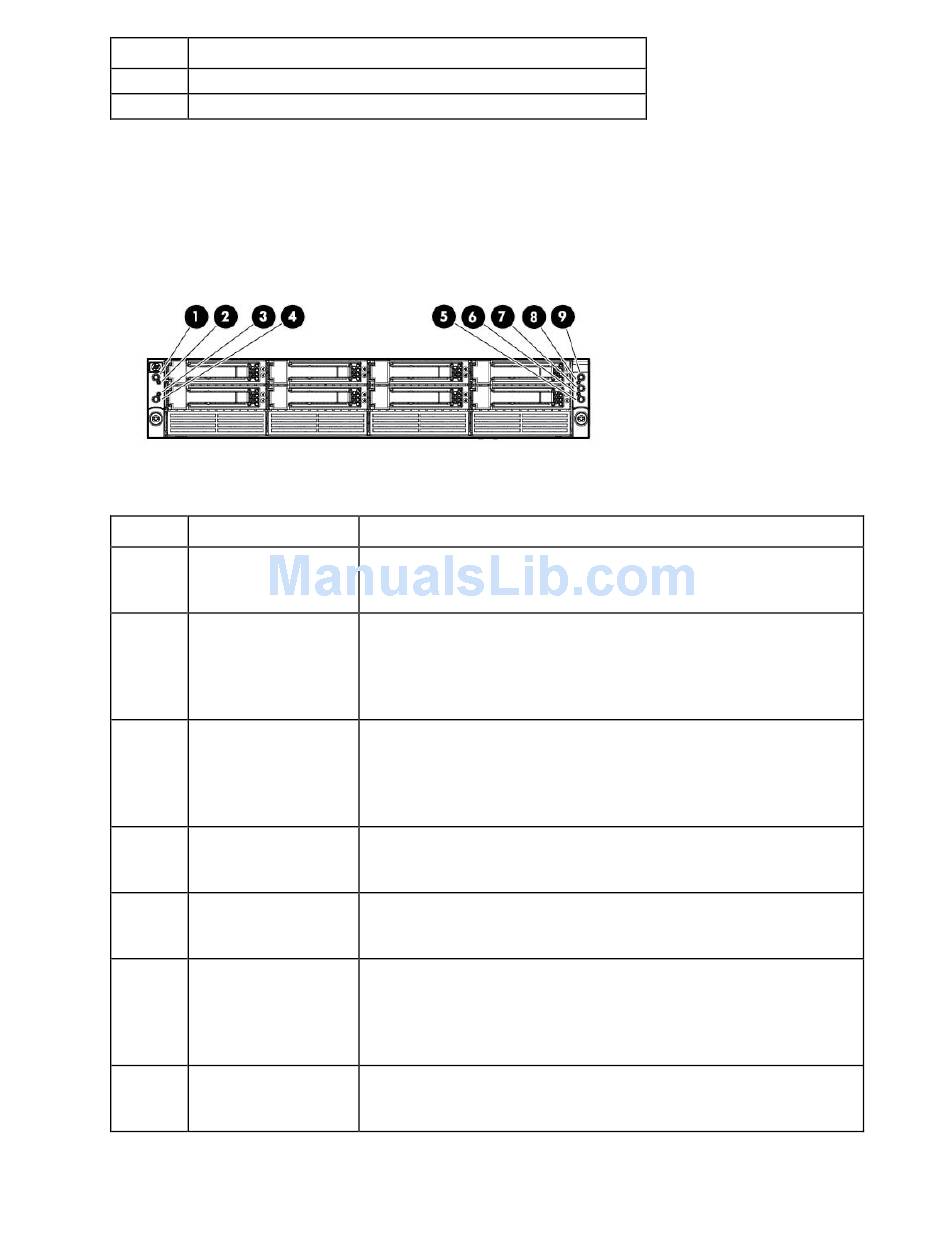

Front panel LEDs and buttons (DL170e G6)
The HP Cluster Platform supports the following three models of the HP ProLiant DL170e G6 Server:
•
Four-node server with 8-bay LFF hard drive cage
Item Description
Power button (node 2)
1
Health LED (node 2)
2
Health LED (node 1)
3
Power button (node 1)
4
Power button (node 3)
5
Health LED (node 3)
6
Chassis UID LED button Blue = Identification is activated.
7
Status
Green—Normal (system on)
Amber—The node is off or in hibernation with AC power.
Off—Off without AC power
Green = System health is normal.
Flashing amber = System health is degraded (non-critical). For more
information, see SEL.
Flashing red = System health is critical. For more information, see SEL.
Off = System is off and health is normal.
Green = System health is normal.
Flashing amber = System health is degraded (non-critical). For more
information, see SEL.
Flashing red = System health is critical. For more information, see SEL.
Off = System is off and health is normal.
Green—Normal (system on)
Amber—The node is off or in hibernation with AC power.
Off—Off without AC power
Green—Normal (system on)
Amber—The node is off or in hibernation with AC power.
Off—Off without AC power
Green = System health is normal.
Flashing amber = System health is degraded (non-critical). For more
information, see SEL.
Flashing red = System health is critical. For more information, see SEL.
Off = System is off and health is normal.
Flashing blue = System is being managed remotely.
Off = Off
HP ProLiant servers (rack) 14
