HP Cluster Platform Cabling Tables v2010 Overview page 22

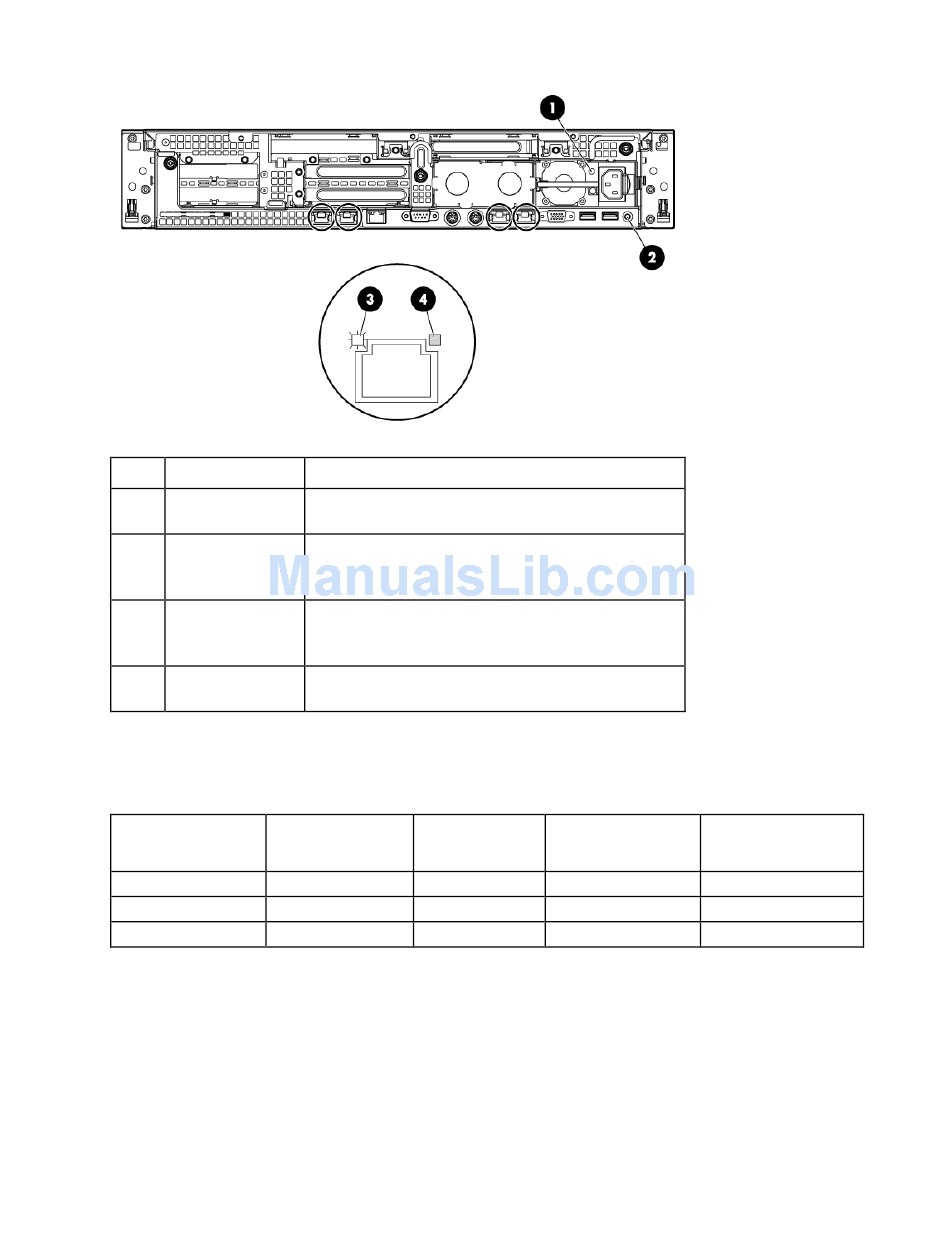

Rear panel LEDs and buttons (DL380 G6)
Item Description
Power supply LED
1
UID LED/button
2
NIC/iLO 2 activity
3
LED
NIC/iLO 2 link LED Green = Network link
4
PCI expansion slot definitions (DL380 G6)
Always install an InfiniBand PCIe HCA in slot 4 of this server.
Primary
(slot - form factor)
1 - FL/FH
2 - HL/FH
3 - HL/FH
Notes:
•
"Primary" denotes the risers are installed in the primary riser connector.
•
"Secondary" denotes the risers are installed in the secondary riser connector.
•
FL/FH denotes full-length, full-height. HL/FH denotes half-length, full-height. LP denotes low profile.
Status
Green = Normal
Off = System is off or power supply has failed
Blue = Activated
Flashing blue = System being managed remotely
Off = Deactivated
Green = Network activity
Flashing green = Network activity
Off = No network activity
Off = No network link
Secondary PCIe riser
slot description
(slot - form factor)
4 - FL/FH PCIe x16 (8,4,1)
5 - LP PCIe x8 (4,1)
6 - LP PCIe x8 (4,1)
PCIe x16 riser PCIe/PCI-X riser
slot description slot description
PCIe x16 (16,8,4,1) PCI-X 64-bit/133-MHz
— PCIe x16 (8,4,1)
— PCIe x8 (4,1)
HP ProLiant servers (rack) 22
