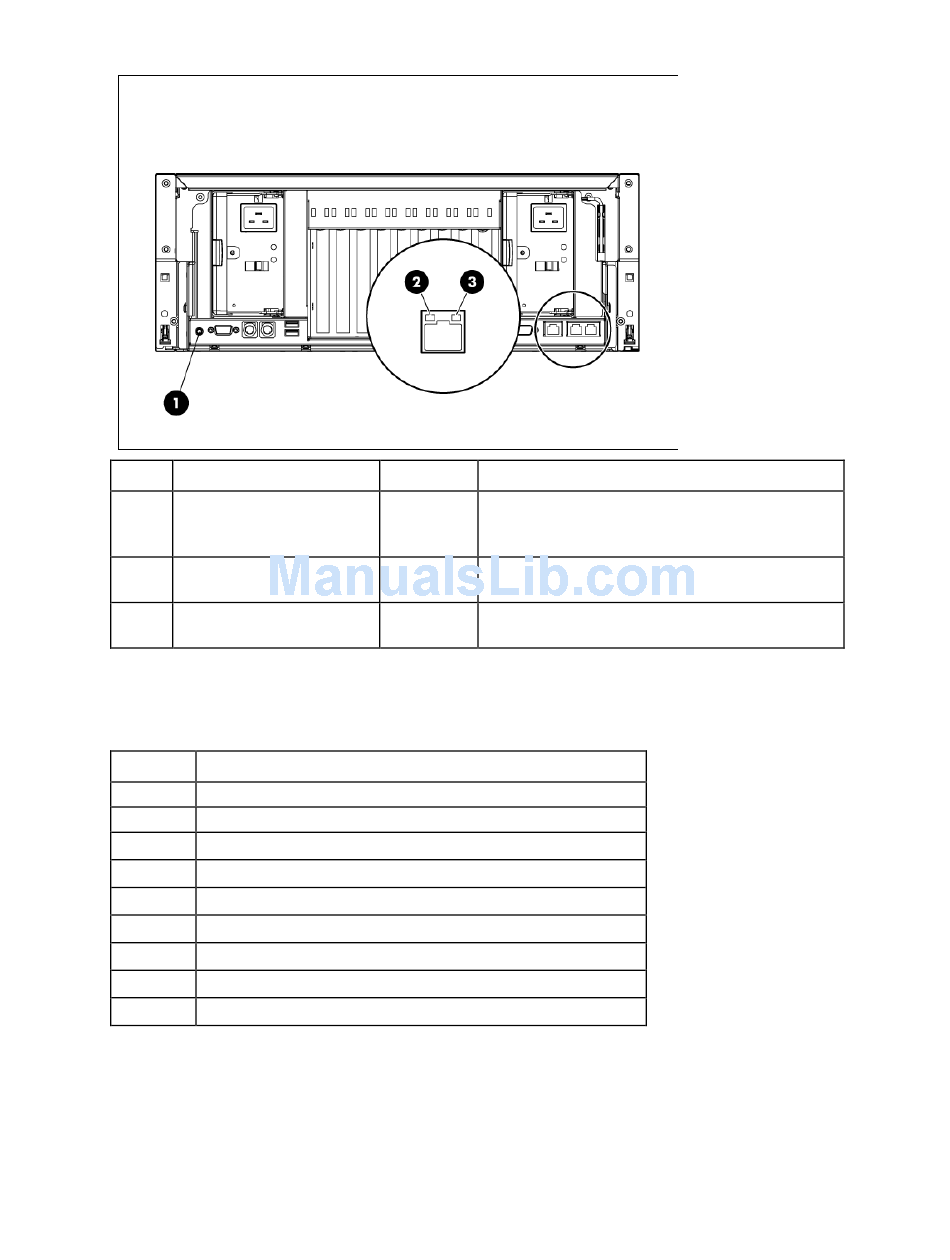

Rear panel LEDs and buttons (DL585 G6)
Item Description
UID LED
1
Activity LED
2
Link LED
3
PCI expansion slot definitions (DL585 G6)
Always install an InfiniBand PCIe HCA in slot 7 of this server.
Slot Description
PCI-X non-hot-plug expansion slot, 64-bit/100-MHz (half-length)
1
PCI-X non-hot-plug expansion slot, 64-bit/100-MHz (full-length)
2
PCIe x4 non-hot-plug expansion slot (full-length)
3
PCIe x4 non-hot-plug expansion slot (full-length)
4
PCIe x8 non-hot-plug expansion slot (full-length)
5
PCIe x4 non-hot-plug expansion slot (full-length)
6
PCIe x8 non-hot-plug expansion slot (full-length)
7
PCIe x8 non-hot-plug expansion slot (full-length)
8
PCIe x4 non-hot-plug expansion slot (half-length)
9
LED color Status
Blue On = Activated
Flashing = Server remotely managed
Off = Deactivated
Green On or flashing = Network activity
Off = No network activity
Green On = Linked to network
Off = Not linked to network
