PCI expansion slot definitions (SL170s G6)
The HP ProLiant SL170s G6 Server has one low profile x16 PCIe2 expansion slot on the system board.

HP ProLiant SL2x170z G6 Server

The HP ProLiant SL2x170z (four nodes per 2U chassis) is used as a compute node in HP Cluster Platform
configurations and consists of four independent HP ProLiant SL2x170z G6 Servers, two per 1U tray, installed
in the 2U HP ProLiant z6000 G6 Chassis.
HP ProLiant SL2x170z G6 Server documentation
For server-specific information, see the server documentation:
•
For a complete list of features and specifications, see the HP ProLiant SL2x170z Server QuickSpecs on
the HP website (http://h18004.www1.hp.com/products/quickspecs/13383_na/13383_na.html).
•
For installation and service information, see the HP ProLiant SL1000/6000 Scalable System User
Guide and the HP ProLiant SL2x170z Server Maintenance and Service Guide on the HP website
(http://www.hp.com/support/manuals).
Under servers, select ProLiant ML/DL and TC series servers, and then select HP ProLiant SL2x170z G6
Server series.

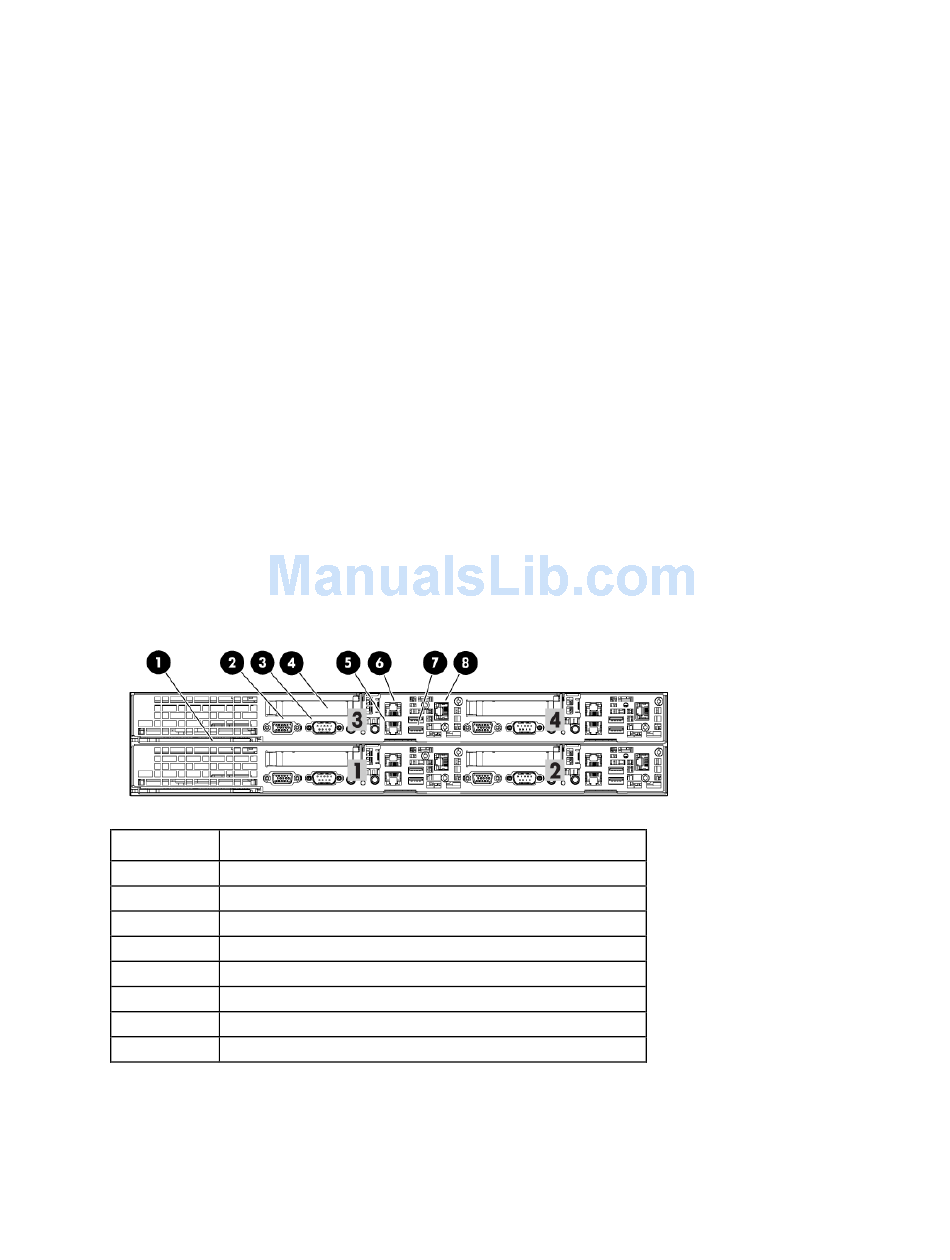

Front panel components (SL2x170z G6)
The table below describes components for one server only. Each server contains the same components in the
same orientation.
Item
1
2
3
4
5
6
7
8
Description
Tray handle and latch
Video connector
Serial connector
PCI slot
NIC 1 connector
NIC 2 connector
USB connectors (2)
Management (IPMI) connector
HP ProLiant servers (scalable) 52
