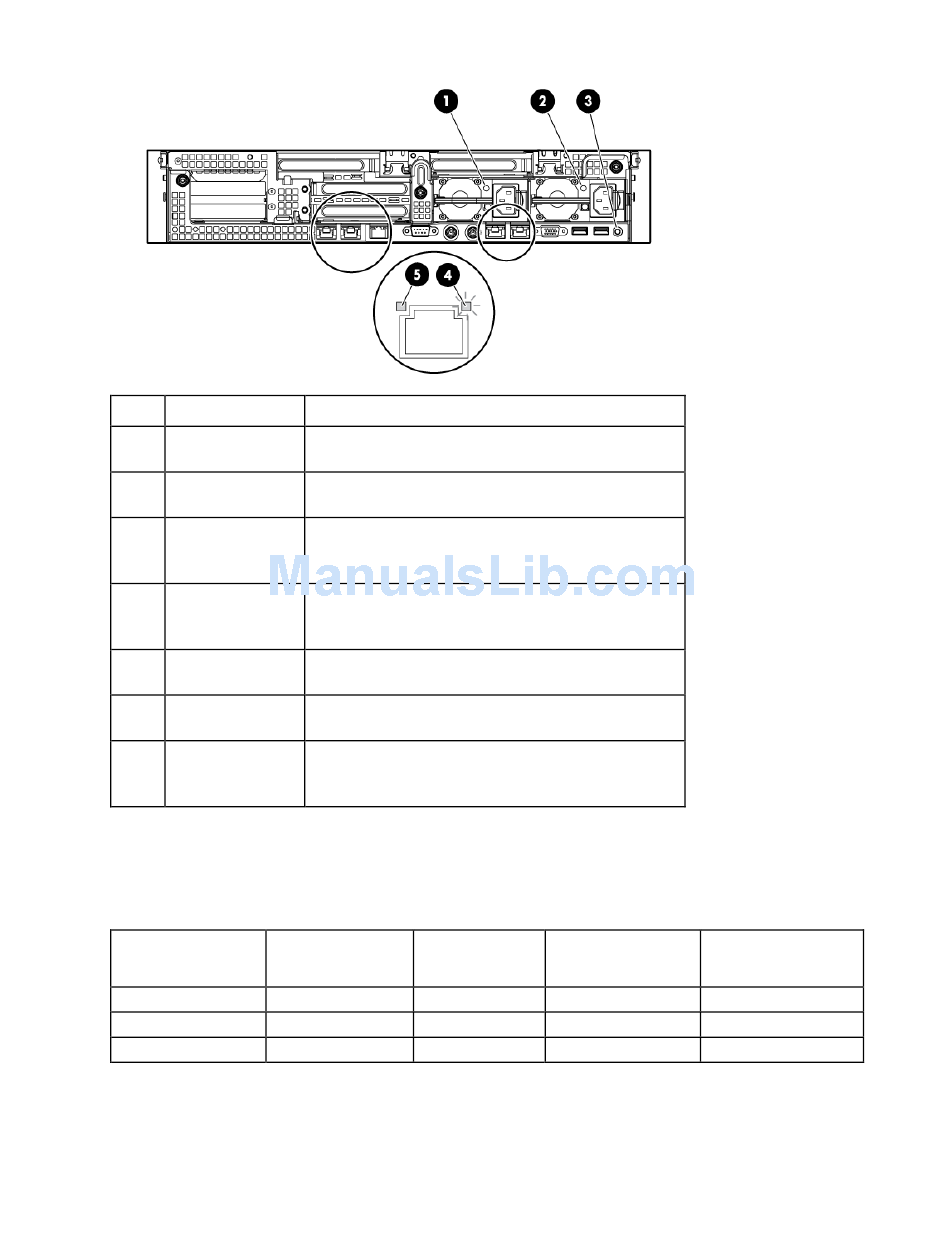

Rear panel LEDs and buttons (DL385 G6)
Item Description
Power supply 2
1
power LED
Power supply 1
2
power LED
UID LED button
3
NIC activity LED
4
iLO 2 link LED*
NIC link LED
5
iLO 2 activity LED* Green = Network activity
* iLO 2 LED positions are reversed from the embedded NIC LEDs
PCI expansion slot definitions (DL385 G6)
Always install an InfiniBand PCIe HCA in slot 4 of this server.
Primary
(slot - form factor)
1 - FL/FH
2 - HL/FH
3 - HL/FH
Notes:
•
"Primary" denotes the risers are installed in the primary riser connector.
•
"Secondary" denotes the risers are installed in the secondary riser connector.
Status
Green = Normal
Off = System is off or power supply has failed.
Green = Normal
Off = System is off or power supply has failed.
Blue = Activated
Flashing blue = System being remotely managed
Off = Deactivated
Green = Network activity
Flashing green = Network activity
Off = No network activity
Green = Network link
Off = No network link
Green = Network link
Off = No network link
Flashing green = Network activity
Off = No network activity
Secondary PCIe riser
slot description
(slot - form factor)
4 - FL/FH PCIe x16 (8,4,1)
5 - LP PCIe x8 (4,1)
6 - LP PCIe x8 (4,1)
PCIe x16 riser PCIe/PCI-X riser
slot description slot description
PCIe x16 (16,8,4,1) PCI-X 64 bit/133 MHz
— PCIe x16 (8,4,1)
— PCIe x8 (4,1)
