Item Description
Front PCIe bracket (LP slot)
3
SFP PLUS connector
4
QSFP port*
5
NIC 2 connector
6
NIC 1/iLO connector
7
USB connectors (2)
8
iLO network port
9
*By default, the HP NC543i 2-port 4x QDR IB/10Gb Adapter is configured as a dual-port 10 GigE device. If the
InfiniBand Enablement kit is installed, then the onboard QSFP port functions as an InfiniBand port, and the device
operates as a 1-port 10 GigE (SFP+) device and a 1-port QDR InfiniBand (QSFP) device.
•

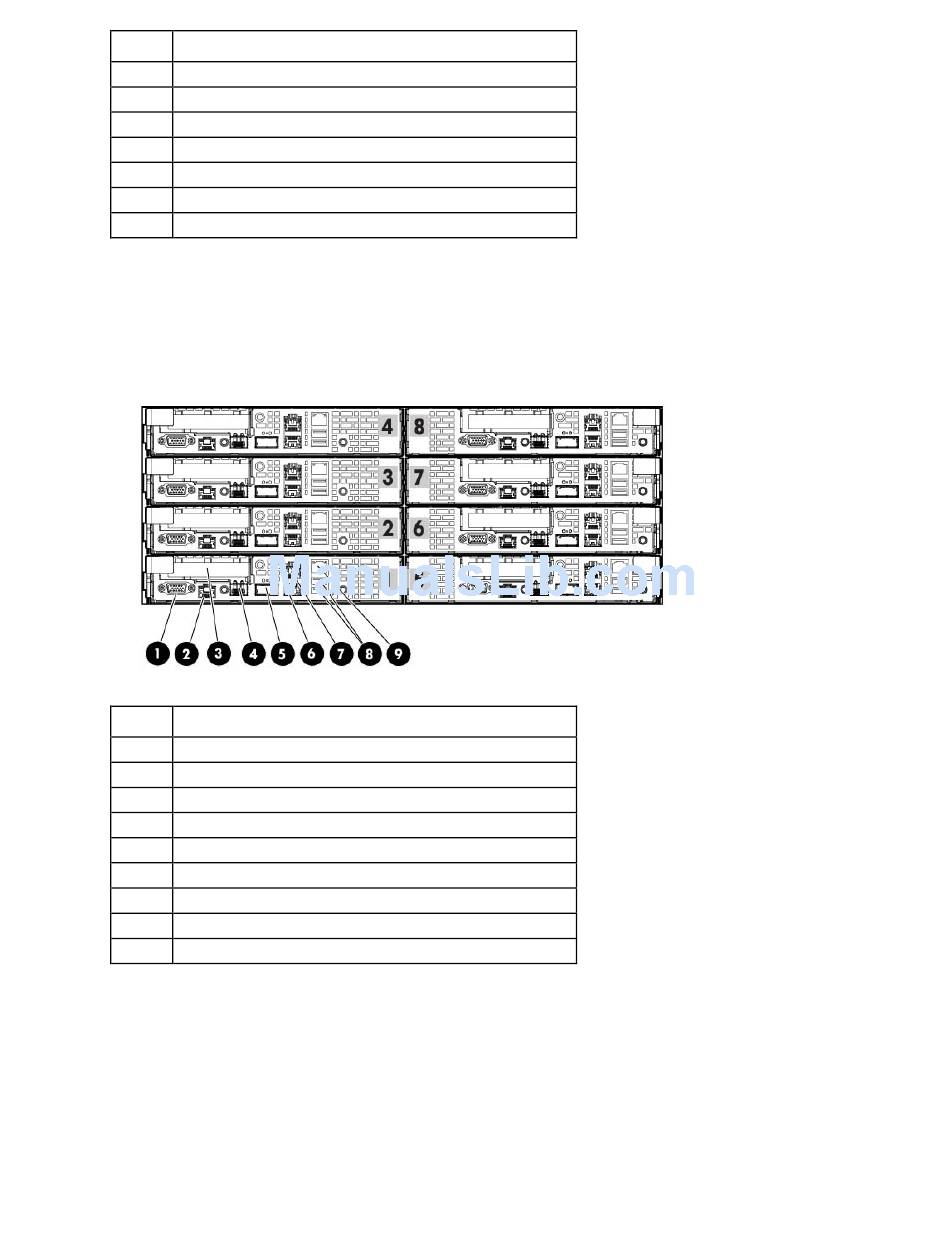

Eight-node (1U) server
Item Description
VGA port
1
Serial port (RJ–45)
2
Front PCIe bracket (LP slot)
3
SFP+/10 GigE port*
4
QSFP/InfiniBand port*
5
NIC 2 network port
6
NIC 1 network port /iLO sideband port
7
USB connectors
8
iLO network port
9
*By default, the HP NC543i 2-port 4x QDR IB/10Gb Adapter is configured as a dual-port 10 GigE device. If the
InfiniBand Enablement kit is installed, then the onboard QSFP port functions as an InfiniBand port, and the device
operates as a 1-port 10 GigE (SFP+) device and a 1-port QDR InfiniBand (QSFP) device.
Front panel LEDs and buttons (SL390s G7)
The tables in this section describe components for one server only. Each server contains the same components
in the same orientation. The figures describe the front panel components for one of four or eight SL390s
servers in the s6500 chassis.
