* The SUV connector and the HP c-Class Blade SUV cable are for some server configuration and diagnostic procedures.

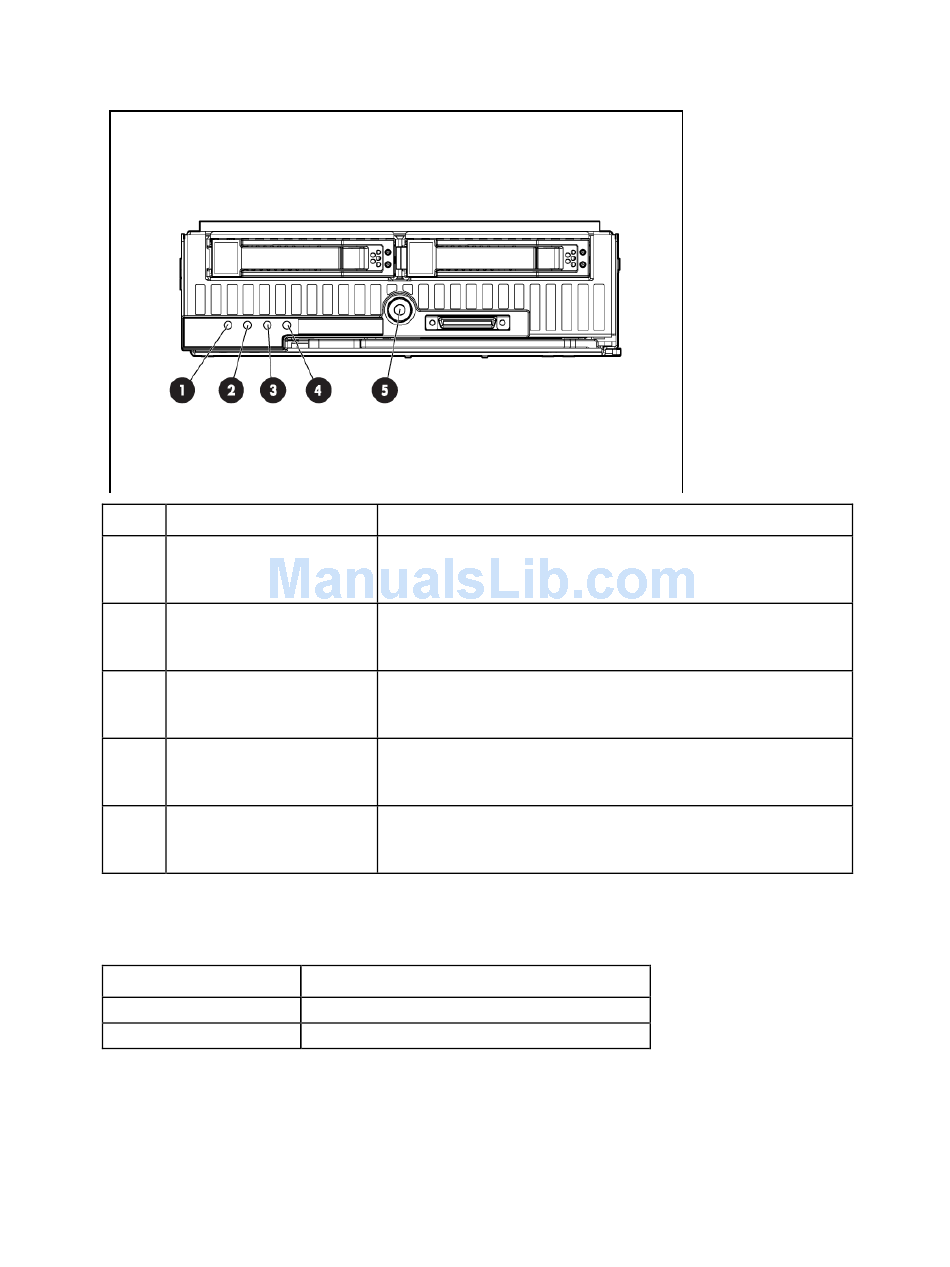

Front panel LEDs (BL465c G6)
Item Description
UID LED
1
Health LED
2
NIC 1 LED*
3
NIC 2 LED*
4
System power LED
5
* Actual NIC numbers depend on several factors, including the operating system installed on the server.
Mezzanine connector definitions (BL465c G6)
Item
Mezzanine connector 1
Mezzanine connector 2
A PCIe x4 mezzanine connector supports x8 cards at up to x4 speeds. A PCIe x8 mezzanine connector supports x16
cards at up to x8 speeds.
Status
Blue = Identified
Blue flashing = Active remote management
Off = No active remote management
Green = Normal
Flashing amber = Degraded condition
Flashing red = Critical condition
Green = Network linked
Green flashing = Network activity
Off = No link or activity
Green = Network linked
Green flashing = Network activity
Off = No link or activity
Green = On
Amber = Standby (auxiliary power available)
Off = Off
PCIe
x4, Type I mezzanine card only
x8, Type I or II mezzanine card
