Rail Mounting Kit Installation Instructions

The zl switches can be mounted with the optional Rail Mounting Kit (5070-0145) for shipment in an

HP 10000 series rack. These rails stabilize the switch, so the rack or cabinet can be shipped without

removing the switch. However, the power supplies must be removed from the chassis before shipping.

N o t e

The power supplies must be removed from the chassis before shipping in a rack.

Even though the illustrations show a Switch 5406zl, the instructions apply to all zl chassis models.

Use a posi-drive screwdriver, two included 8-mm M6 screws, and two included M6 cage nuts to

attach each rail to the rack or cabinet as shown in the following illustration. Ensure that the

screws are at the same level in each upright.

Devices installed in a rack or cabinet should be mounted as low as possible, with the heaviest

device at the bottom and progressively lighter devices installed above.

8 mm

M6 screw

Figure 1.

for the ProCurve Series zl Switches

Table of Contents

Do you have a question about the Cluster Platform Hardware Kits v2010 and is the answer not in the manual?

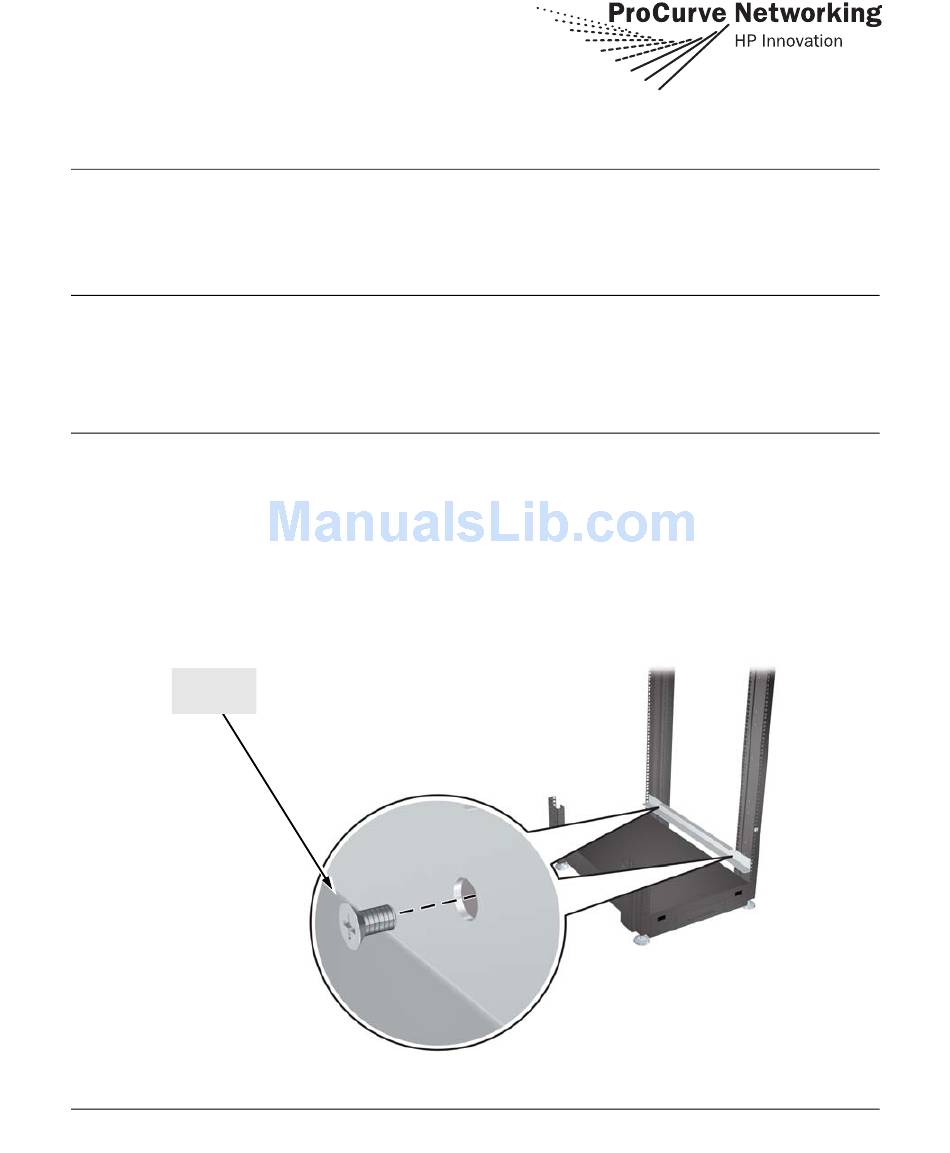

Page 1 Rail Mounting Kit Installation Instructions for the ProCurve Series zl Switches The zl switches can be mounted with the optional Rail Mounting Kit (5070-0145) for shipment in an HP 10000 series rack. These rails stabilize the switch, so the rack or cabinet can be shipped without removing the switch.
Page 2 Use a #1 Phillips (cross-head) screwdriver and two included 8-mm M4 flat head screws to attach a hold-down bracket to the chassis as shown in the following illustration. Ensure that each hold- down bracket is positioned at the lower rear corners of the chassis. 8 mm M4 screws Hold down...
Page 3 Use a #1 Phillips (cross-head) screwdriver to attach the mounting brackets to the switch with the included 8-mm M4 screws. Each bracket is attached with four screws as shown in figure 3. 8 mm M4 screws Mounting bracket Figure 3. Attaching Rack Mounting Brackets Slide the switch onto the rails in the rack until the mounting brackets are flush with the front of the cabinet.
Page 4 Tighten these screws. install and tighten the other 12-24 screws Figure 5. Installing screws in brackets © Copyright 2006, 2007 Hewlett-Packard Development Company, LP. All rights reserved. The information contained herein is subject to change without notice. This document contains proprietary information, which is protected by copyright.
