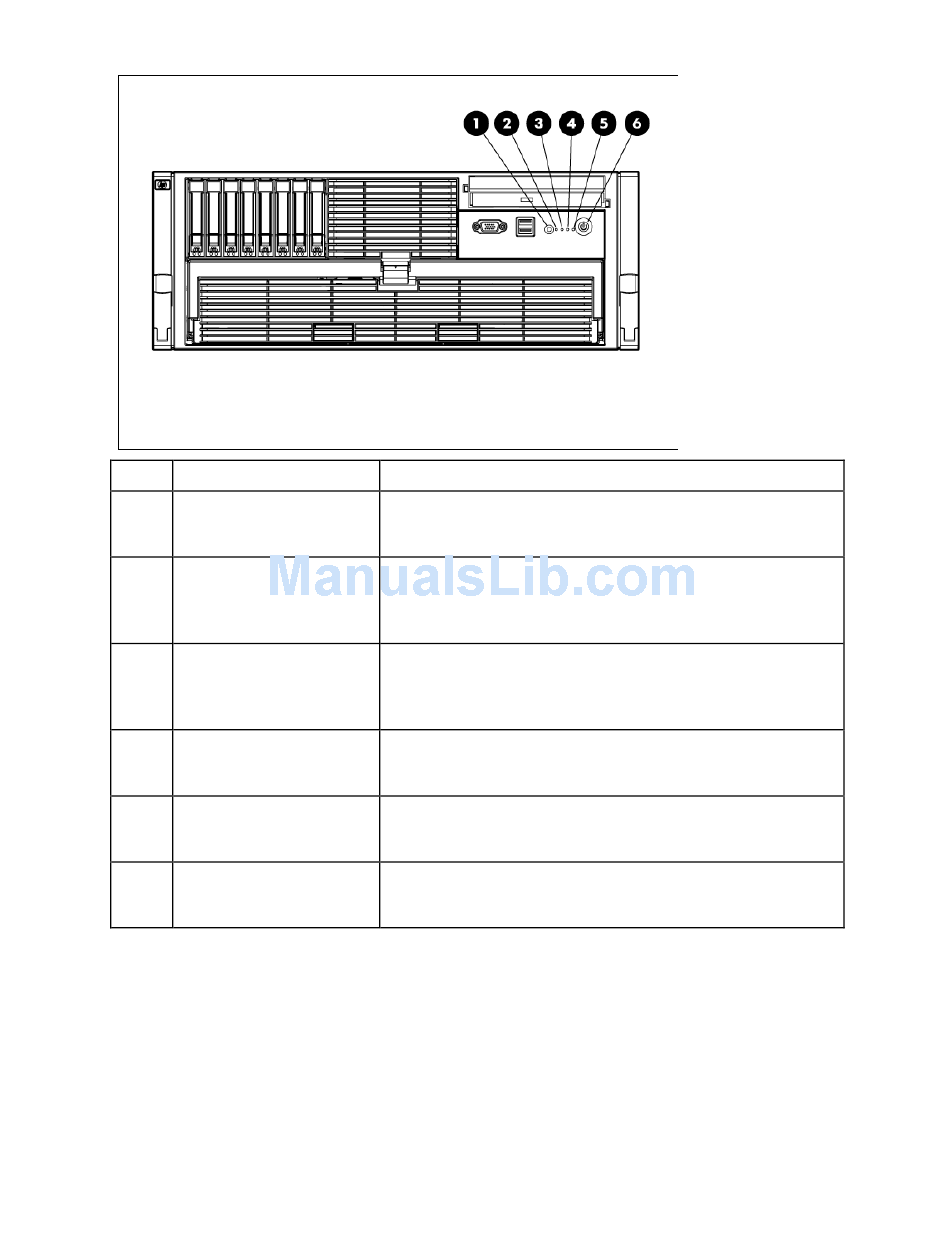

Front panel LEDs and buttons (DL585 G6)
Item Description
UID switch and LED
1
Internal system health LED
2
External system health LED
3
NIC 1 link/activity LED
4
NIC 2 link/activity LED
5
Power on/Standby button
6
and LED
Status
Blue = Activated
Flashing blue = Server managed remotely
Off = Deactivated
Green = Normal (system on)
Flashing amber = System health degraded
Flashing red = System health critical
Off = Normal (system off)
Green = Normal (system on)
Flashing amber = System health degraded
Flashing red = System health critical
Off = Normal (system off)
Green = Linked to network
Flashing green = Linked with activity on the network
Off = No network connection
Green = Linked to network
Flashing green = Linked with activity on the network
Off = No network connection
Amber = System has AC power and is in standby mode
Green = System has AC power and is turned on
Off = System has no AC power
