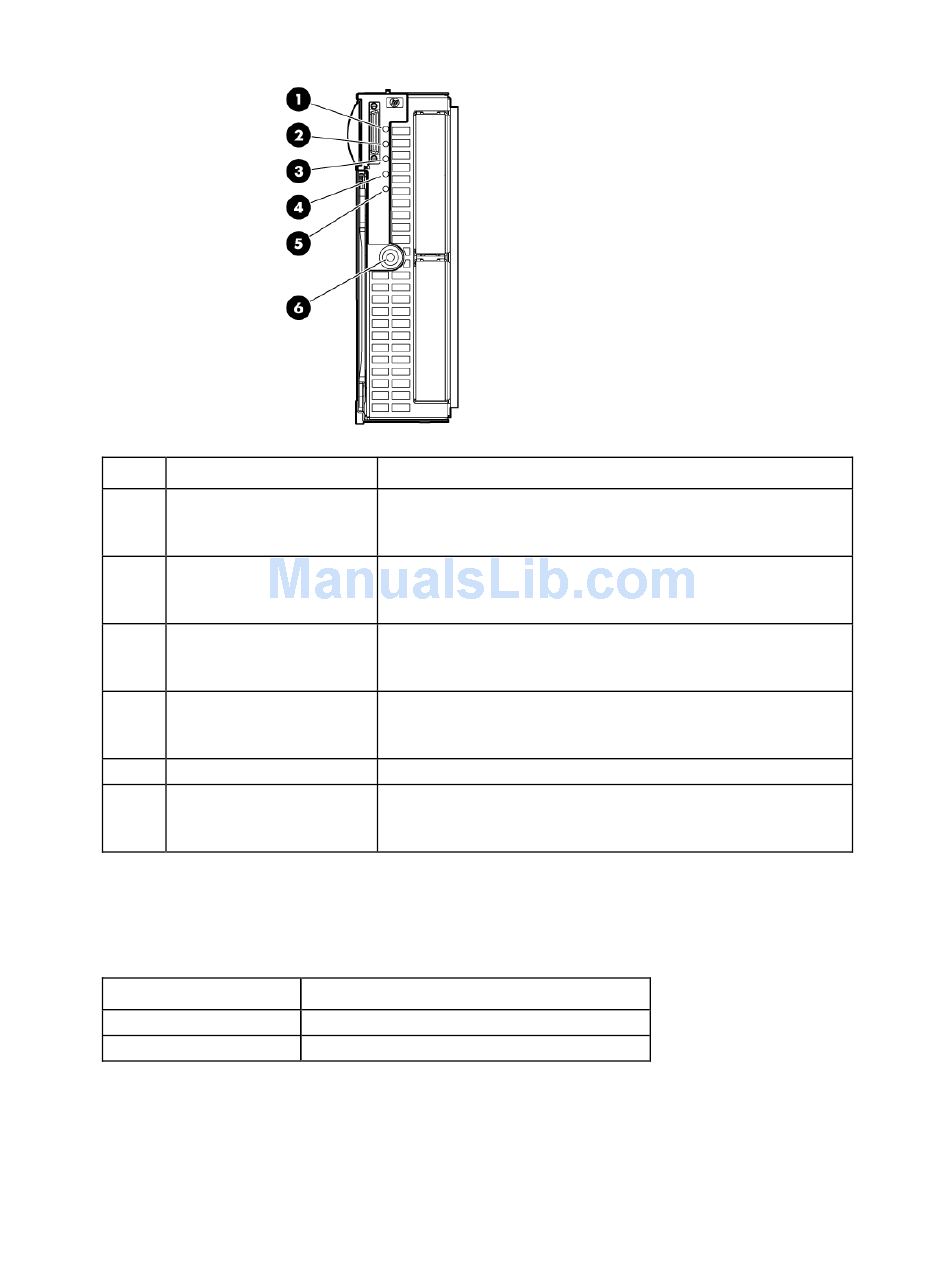

Front panel LEDs (BL460c G7)
Item Description
UID LED
1
Health LED
2
Flex 1 LED*
3
Flex 2 LED*
4
Reserved
5
System power LED
6
*Actual NIC numbers depend on several factors, including the operating system installed on the server.
Mezzanine connector definitions
A PCIe x8 mezzanine connector supports x16 cards at up to x8 speeds.
Item
Mezzanine connector 1
Mezzanine connector 2
Status
Blue = Identified
Blue flashing = Active remote management
Off = No active remote management
Green = Normal
Amber flashing = Degraded condition
Red flashing = Critical condition
Green = Network linked
Green flashing = Network activity
Off = No link or activity
Green = Network linked
Green flashing = Network activity
Off = No link or activity
—
Green = On
Amber = Standby (auxiliary power available)
Off = Off
PCIe
x8, Type I mezzanine card only
x8, Type I or II mezzanine card
