Item Description
UID LED and button
1
System health LED
2
Power On/Standby button
3
and system power LED

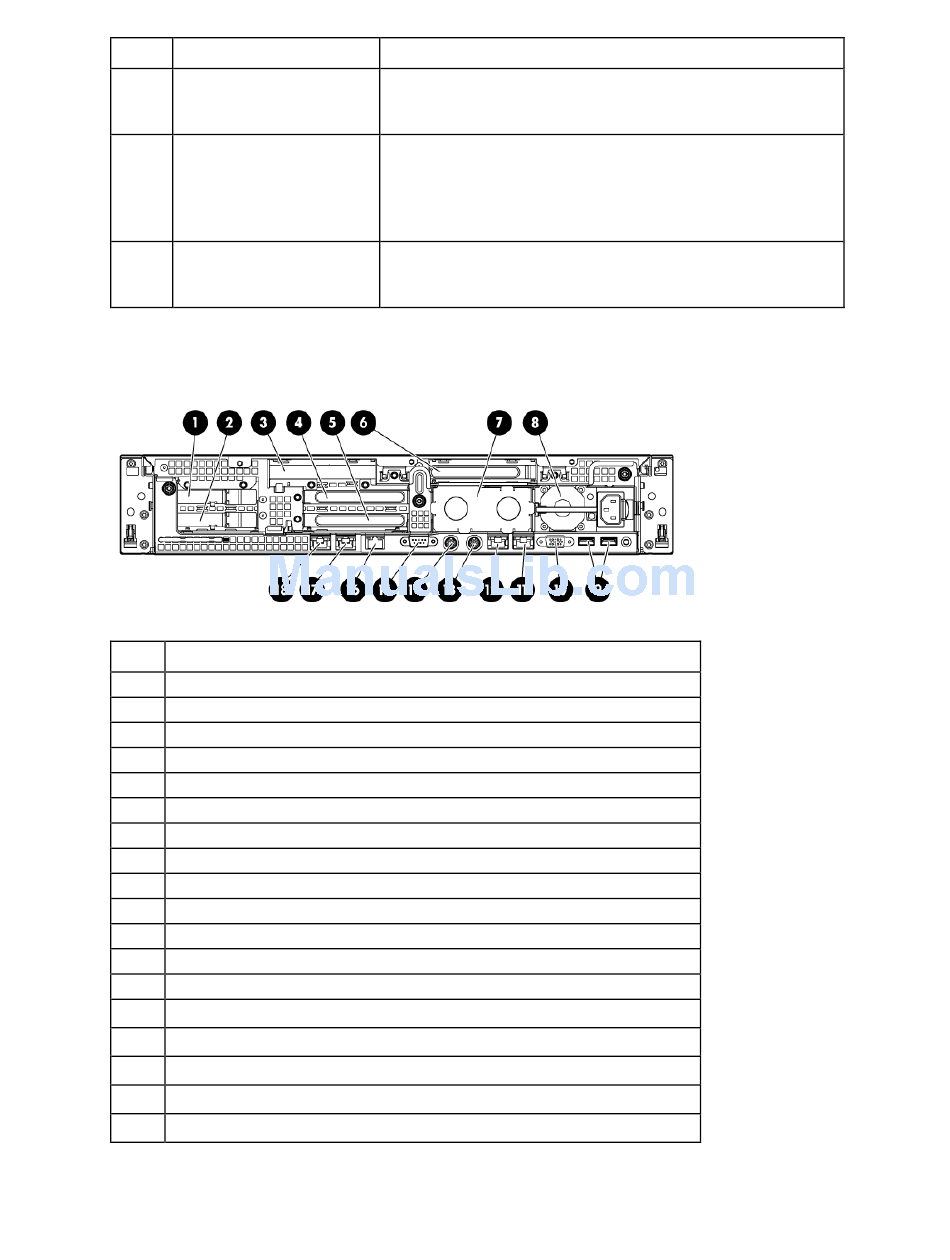

Rear panel components (DL380 G6)
Item Description
PCI slot 5
1
PCI slot 6
2
PCI slot 4
3
PCI slot 2
4
PCI slot 3
5
PCI slot 1
6
Power supply bay 2
7
Power supply bay 1 (populated)
8
USB connectors (2)
9
Video connector
10
NIC 1 connector
11
NIC 2 connector
12
Mouse connector
13
Keyboard connector
14
Serial connector
15
iLO 2 connector
16
NIC 3 connector
17
NIC 4 connector
18
Status
Blue = Activated
Flashing blue = System being remotely managed
Off = Deactivated
Green = Normal
Amber = System degraded
Red = System critical
To identify components in degraded or critical state, see "Systems
Insight Display LEDs" in the server user guide.
Green = System on
Amber = System is in standby, but power is still applied.
Off = Power cord not attached or power supply failure
