HP Cluster Platform Cabling Tables v2010 Overview page 48

•
For installation and service information, see the HP ProLiant SL1000/6000 Scalable System User
Guide and the HP ProLiant SL170s Server Maintenance and Service Guide on the HP website
(http://www.hp.com/support/manuals).
Under servers, select ProLiant ML/DL and TC series servers, and then select HP ProLiant SL170s Server
series.

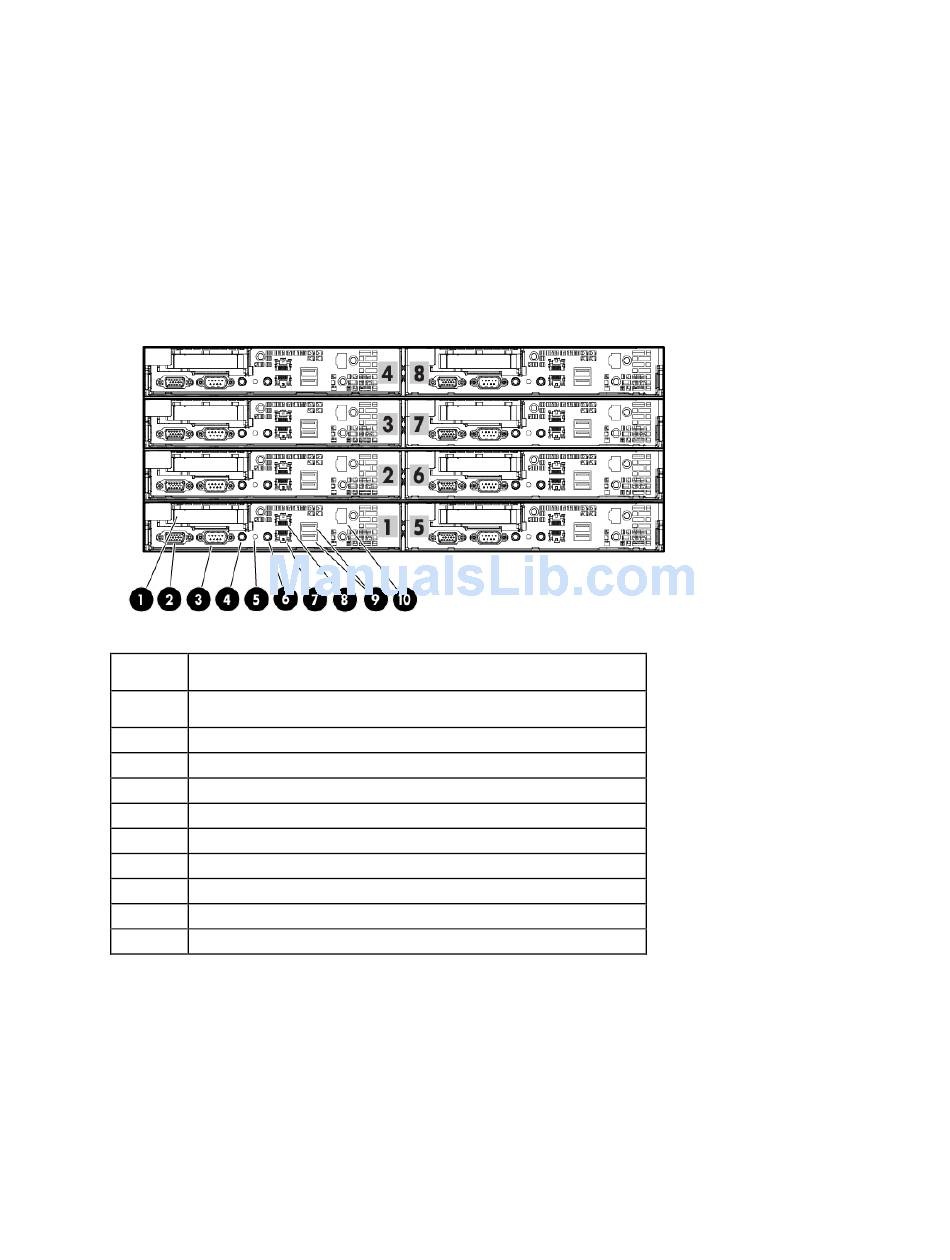

Front panel components (SL170s G6)
The table below describes components for one server only. Each server contains the same components in the
same orientation. The figure describes the front panel components for one of eight SL170s servers in the
s6500 chassis.
Item Description
Front PCIe bracket (LP slot)
1
Video connector
2
Serial connector
3
UID LED
4
Health LED
5
Power LED
6
1 GbE NIC 1 LAN Port
7
1 GbE NIC 2 LAN Port/Shared Management port
8
USB 2.0 port (2)
9
Dedicated Management Port (IPMI) (optional)
10
HP ProLiant servers (scalable) 48
