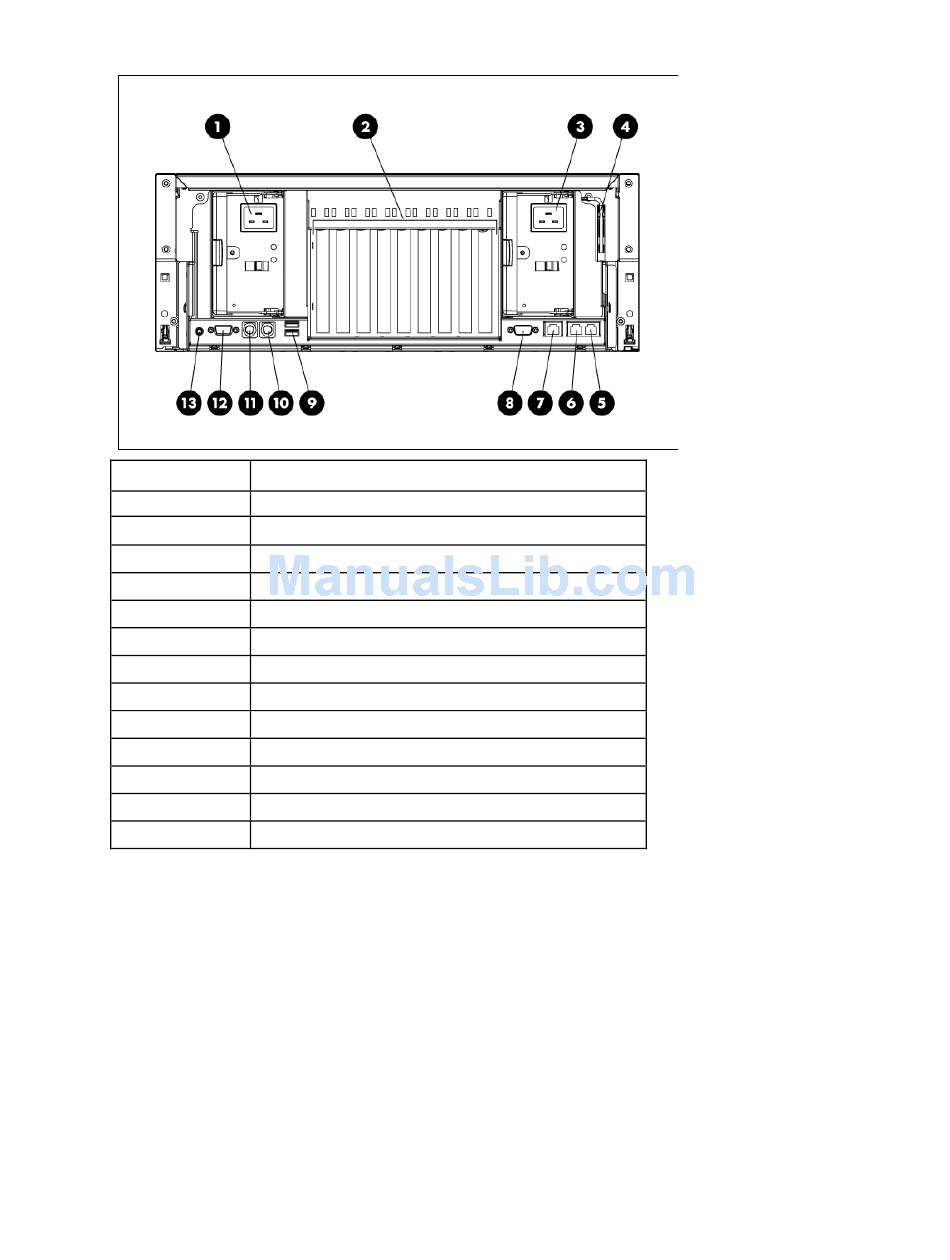

Rear panel components (DL585 G6)
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
Description
Redundant hot-plug power supply (optional)
PCI Express and PCI-X non-hot-plug expansion slots
Hot-plug power supply (primary)
T-15 Torx screwdriver
NIC connector 1
NIC connector 2
iLO connector
Serial connector
USB connectors (2)
Keyboard connector
Mouse connector
Video connector
Rear UID button and LED
HP ProLiant servers (rack) 45
