Item Description
Health LED
2
Power On/Standby button
3
and system power LED

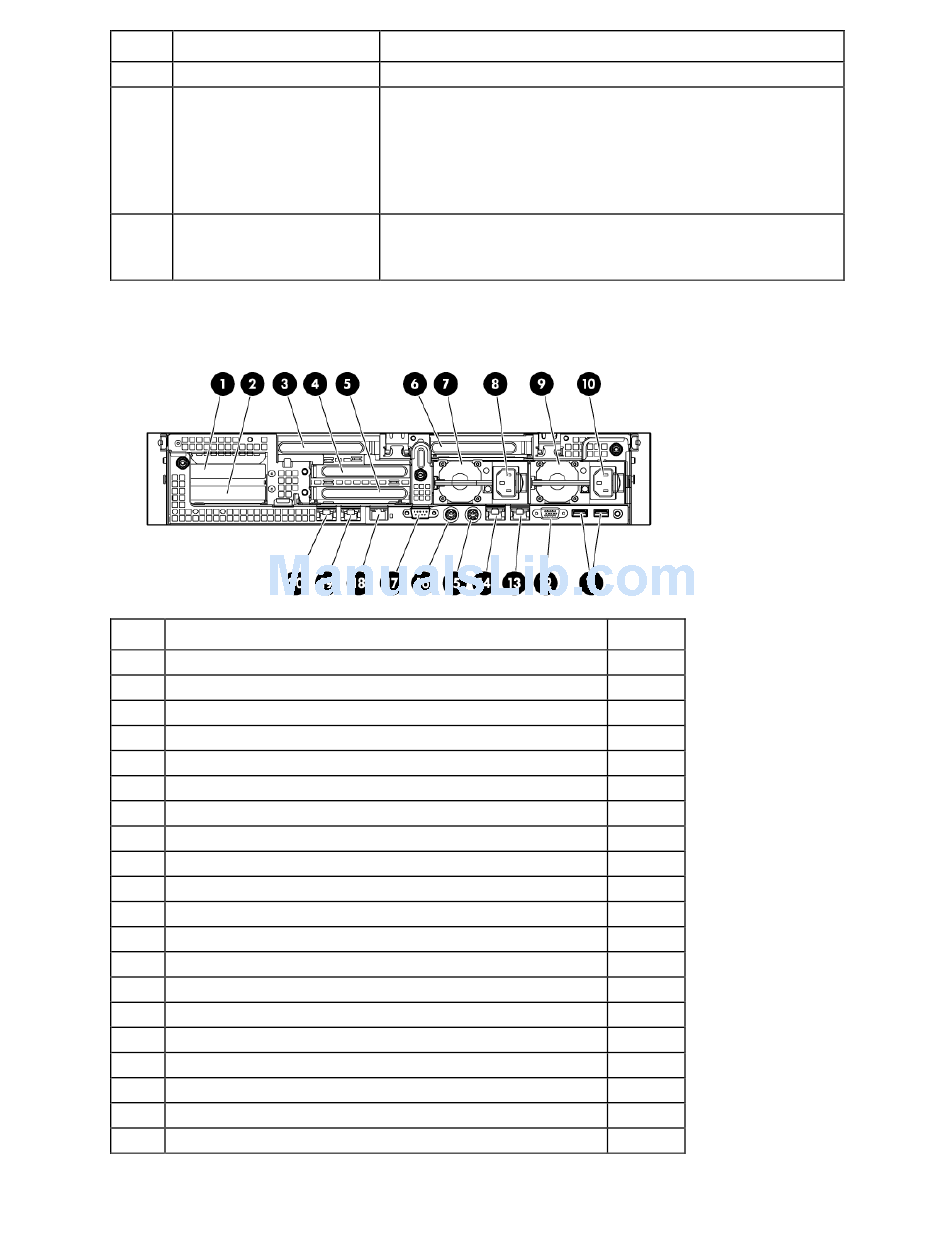

Rear panel components (DL385 G6)
Item Description
PCI slot 5
1
PCI slot 6
2
PCI slot 4
3
PCI slot 2
4
PCI slot 3
5
PCI slot 1
6
Power supply 2
7
Power supply 2 connector
8
Power supply 1
9
Power supply 1 connector
10
USB connectors (2)
11
Video connector
12
NIC 1 connector
13
NIC 2 connector
14
Mouse connector
15
Keyboard connector
16
Serial connector
17
iLO 2 connector
18
NIC 3 connector
19
NIC 4 connector
20
Status
Off = Deactivated
Green = Normal
Flashing amber = System degraded. To identify a component in a
degraded state, see "Systems Insight Display LEDs" in the server user
guide.
Flashing red = System critical. To identify a component in a critical
state, see "Systems Insight Display LEDs" in the server user guide.
Green = System on
Amber = System shut down, but power still applied
Off = Power cord not attached or power supply failure
Color
—
—
—
—
—
—
—
—
—
—
Black
Blue
—
—
Green
Purple
—
—
—
—
