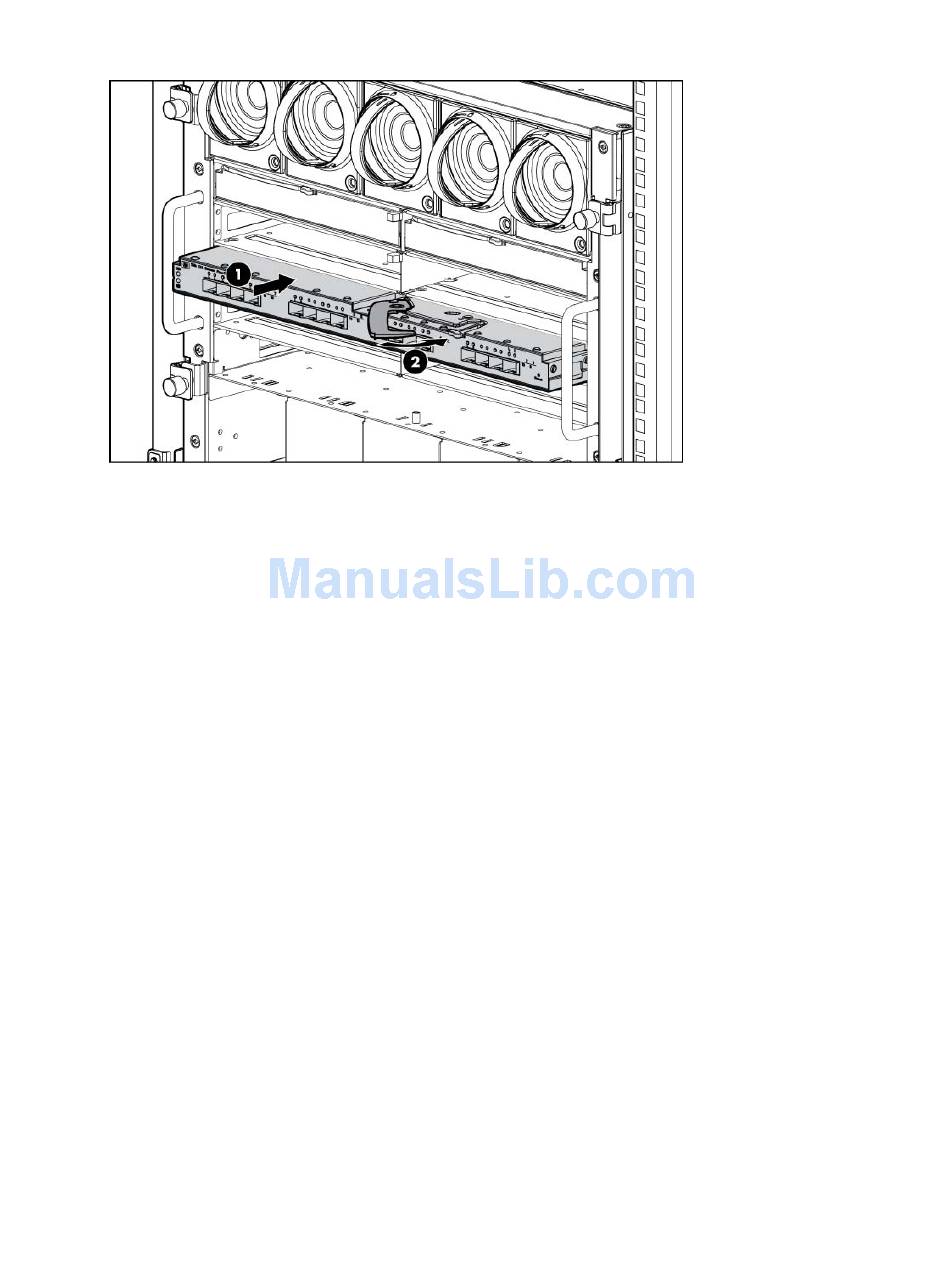

Install the InfiniBand switch module and close the release lever. Depending on the InfiniBand switch

module being installed, your switch module may look different than the switch module shown.

For more information about HP InfiniBand switch modules, see the HP website

(http://h18004.www1.hp.com/products/blades/components/infiniband/index.html).

For HP BladeSystem c-Class InfiniBand switch module documentation for your switch, see the HP website

(http://www.hp.com). Enter the HP part number in the search field to locate the documentation.

Mezzanine HCA cards

In HP Cluster Platform configurations, the HP ProLiant BL c-Class Server Blades are pre-configured with an

InfiniBand Mezzanine HCA for HP c-Class BladeSystem. The HCA interconnects with the HP BladeSystem

c-Class InfiniBand switch module installed in the rear of the enclosure. For more information on the

mezzanine HCA card, locate the option documentation by entering the HP part number in the search field

and searching the HP website (http://www.hp.com).

HP ProLiant BL c-Class Server Blades (Intel® Xeon®)

The HP ProLiant BL280c G6 Server Blade is used as a control node, a utility node, and a compute node in

HP Cluster Platform configurations.

HP ProLiant BL280c G6 Server Blade documentation

For server blade-specific information, see the server blade documentation:

•

For a complete list of features and specifications, see the HP ProLiant BL280c G6 Server Blade

QuickSpecs on the HP website

(http://h18004.www1.hp.com/products/quickspecs/13294_na/13294_na.html).

HP ProLiant BL c-Class Server Blades 70
