PCI expansion slot definitions (DL165 G6)
The HP ProLiant DL165 G6 Server has two PCIe slots and one HTX slot on the system board that support one
of the following riser assemblies:
•
A standard PCIe assembly
•
An optional PCI-X assembly
•
An optional HTX assembly
Slot Type
PCIe
1
HTX
1
PCIe
2
PCI-X
2
Always install an InfiniBand PCIe HCA in slot 1 of this server.

HP ProLiant DL165 G7 Server

The ProLiant DL165 G7 Server is used as a control node and a compute node in HP Cluster Platform
configurations.
HP ProLiant DL165 G7 Server documentation
For server-specific information, see the server documentation:
•
For a complete list of features and specifications, see the HP ProLiant DL165 Generation 7 (G7)
QuickSpecs on the HP website
(http://h18004.www1.hp.com/products/quickspecs/13602_na/13602_na.html).
•
For service information, see the HP ProLiant DL165 G7 Server Maintenance and Service Guide on the
HP website (http://www.hp.com/support/manuals).
Under servers, select ProLiant ML/DL and TC series servers, and then select HP ProLiant DL165 G7
Server series.

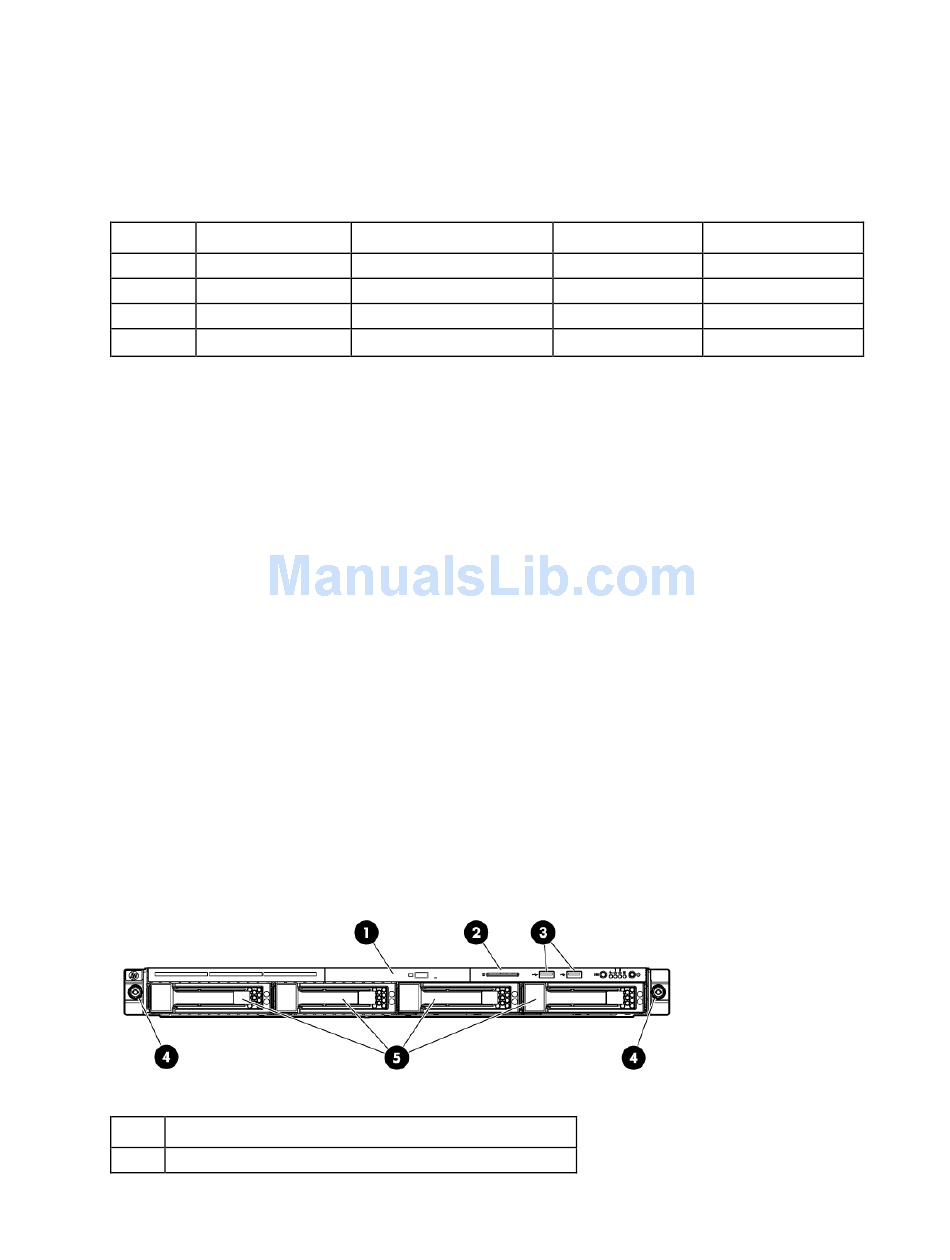

Front panel components (DL165 G7)
•
LFF hard drive model
Item Description
Optical drive
1
Form factor
Full height/ Full length
Full height/ Full length
Low-profile
Low-profile
Connector Width Bus Width
x16 x16
— —
x8 x4
— 64-bit, 133 MHz
HP ProLiant servers (rack) 31
